Removal Procedure

  1. Remove the instrument panel assembly. Refer to IP Assembly Replacement .
  2. Remove the connector housing bracket from the right I/P center support brace.
  3. Remove the 2 plastic retainers (2) which secure the floor panel carpet to the I/P center support braces (1).

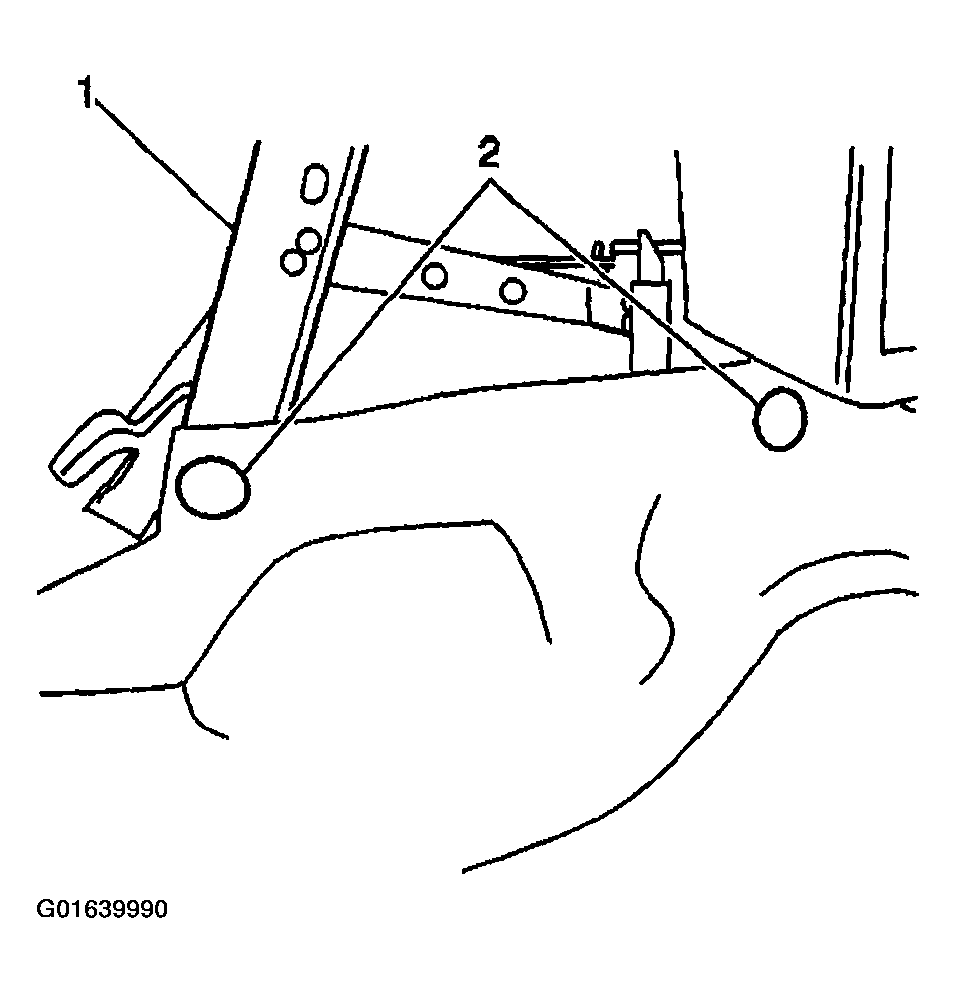

    Fig 1: Removing 2 Plastic Retainers Which Secure Floor Panel Carpet To I/P Center Support Braces
    G01639990Courtesy of GENERAL MOTORS CORP.
  4. Remove the following components from the vehicle:
    • The 3 nuts
    • The 2 bolts
    • The I/P center support braces (5)

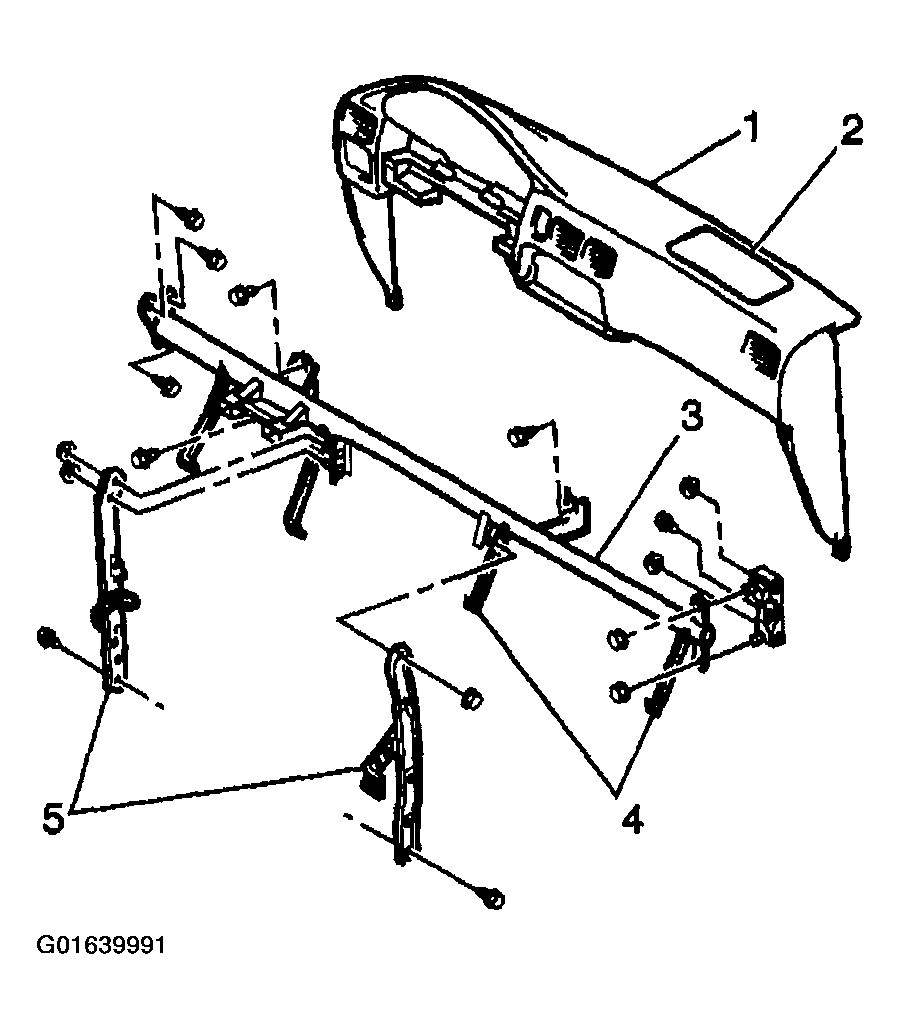

      Fig 2: Removing I/P Center Support Braces
      G01639991Courtesy of GENERAL MOTORS CORP.
