Installation Procedure

NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

Install the I/P center support braces (5) to the vehicle. Secure the braces with the following retainers:
- The 3 nuts
- The 2 bolts
  Tighten

  Tighten the I/P center support brace nuts and bolts to 20 N.m (15 lb ft).

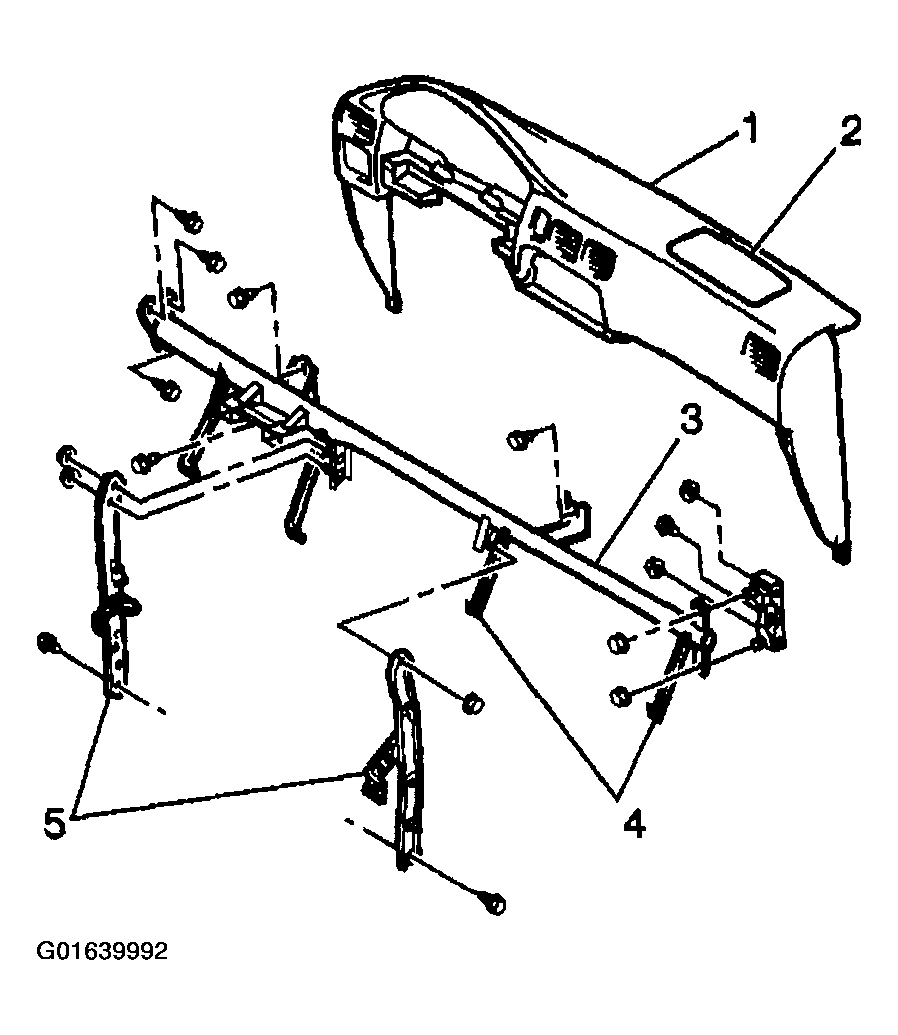

  Fig 1: Installing I/P Center Support Braces
  Courtesy of GENERAL MOTORS CORP.
Install the 2 plastic retainers (2) which secure the floor panel carpet to the I/P center support braces (1).

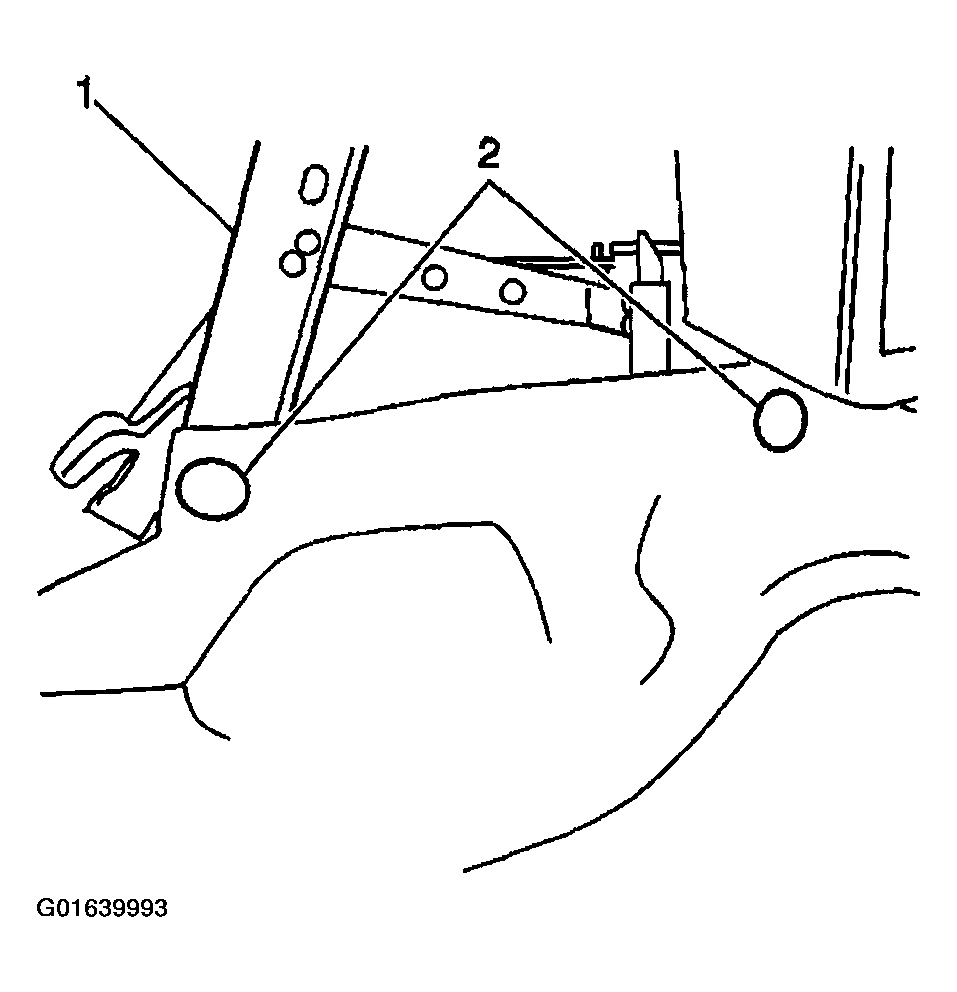

Fig 2: Installing 2 Plastic Retainers

Courtesy of GENERAL MOTORS CORP.

Install the connector housing bracket to the right I/P center support brace.
Install the instrument panel assembly. Refer to IP Assembly Replacement .
