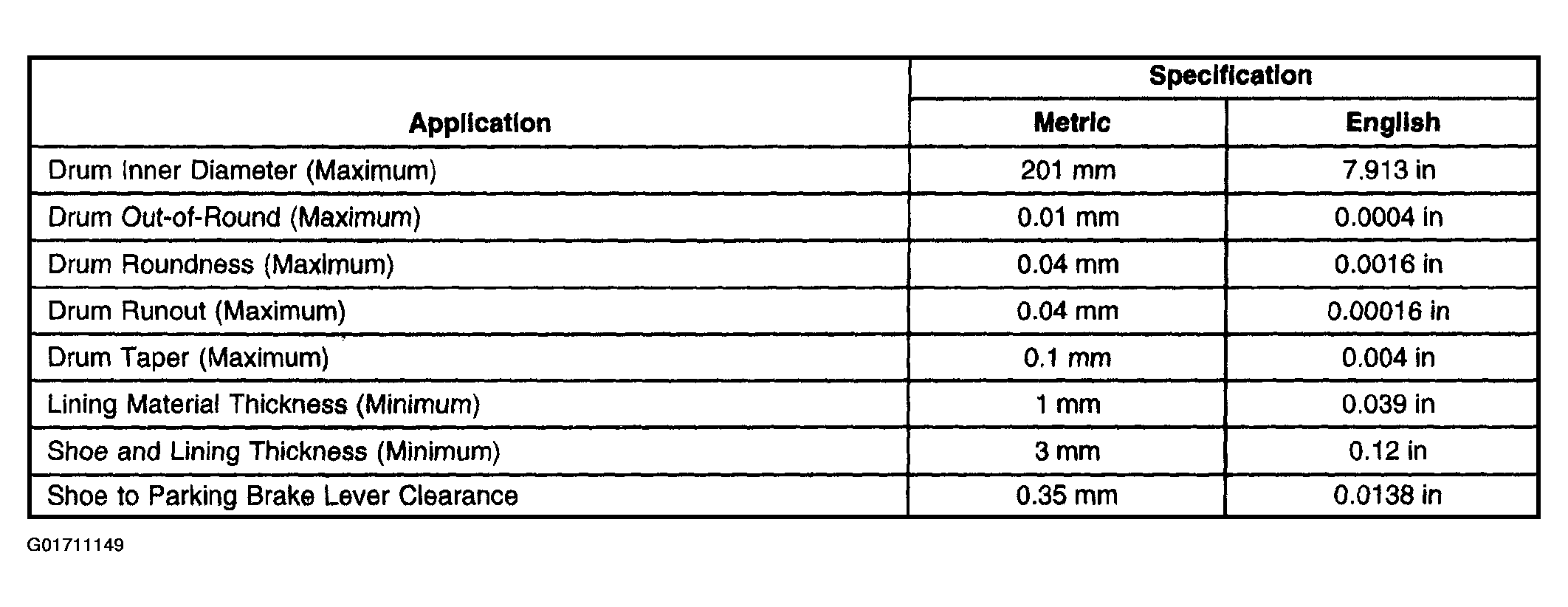

Home >> Chevrolet >> 2002 >> Prizm Base, Automatic, A245E/MS7 >> Repair and Diagnosis >> Brakes >> Mechanical - Hydraulic >> Disc Brakes & Drum Brakes >> Specifications - Drum >> Drum Brake Component Specifications
