Removal Procedure

  1. Remove the brake shoes. Refer to Brake Shoe Replacement .
  2. Clean the dirt and foreign material from the wheel cylinder and the brake fluid pipe.
  3. Remove the brake pipe from the back of the wheel cylinder. Use a container in order to catch the brake fluid.
  4. Remove the following from the vehicle:
    • The 2 bolts
    • The wheel cylinder

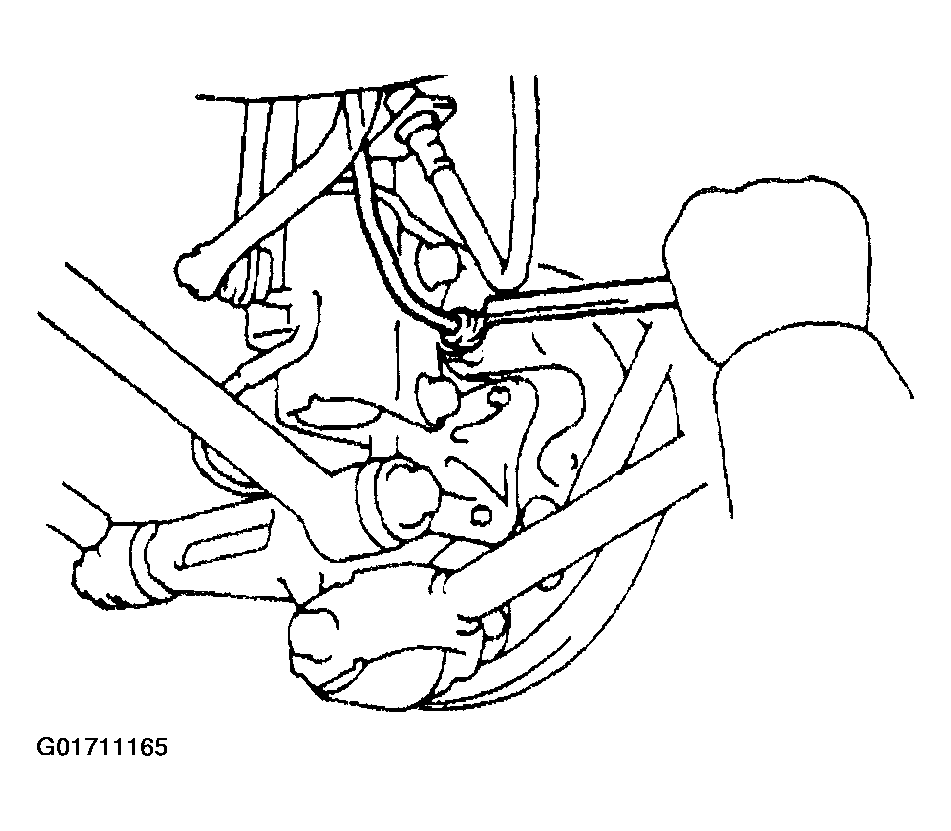

    Fig 1: Removing 2 Bolts And Wheel Cylinder
    G01711165Courtesy of GENERAL MOTORS CORP.
