Removal Procedure

  1. Remove the drum. Refer to Brake Drum Replacement .
  2. Remove the brake shoes (6,14) and the hardware (1-18). Refer to Brake Shoe Replacement .

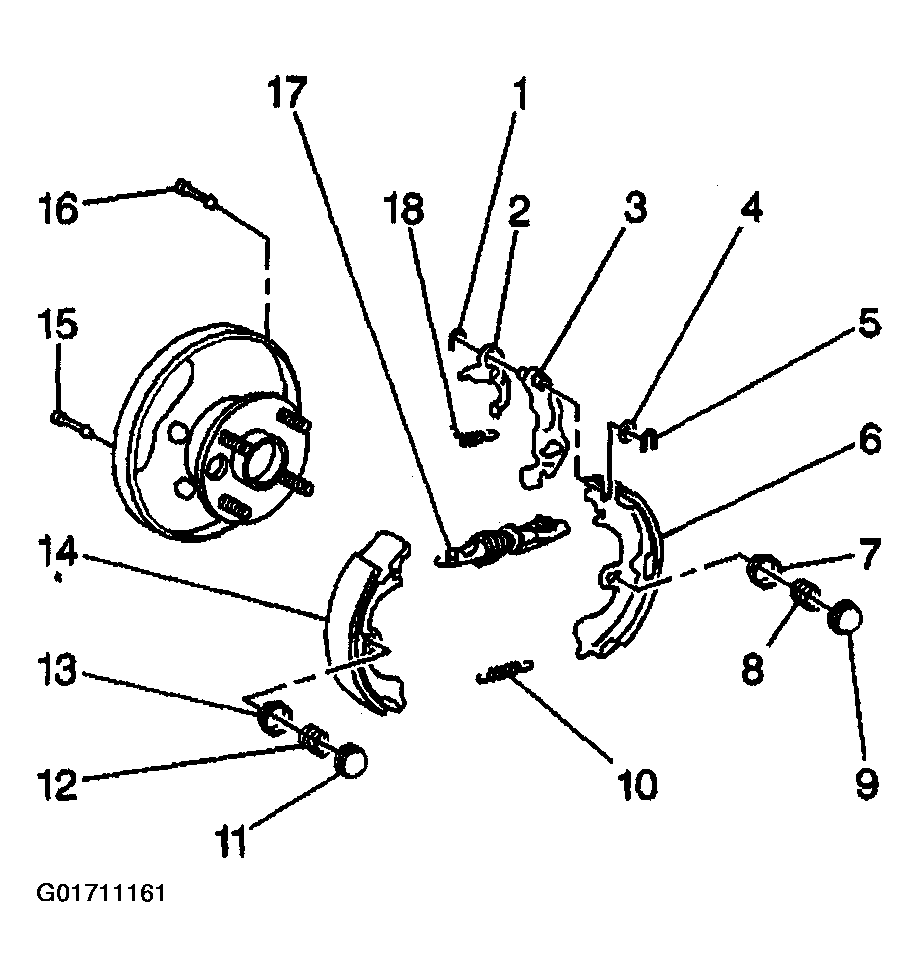

    Fig 1: Removing Brake Shoes And Hardware
    G01711161Courtesy of GENERAL MOTORS CORP.
