Removal Procedure

  1. Remove the rear brake shoes (6, 14). Refer to Brake Shoe Replacement .
  2. Remove the wheel cylinder. Refer to Wheel Cylinder Replacement .
  3. Remove the rear axle hub. Refer to WHEEL BEARING/HUB REPLACEMENT -- REAR in Rear Suspension.
  4. Remove the parking brake cable from the backing plate.
  5. Remove the backing plate.

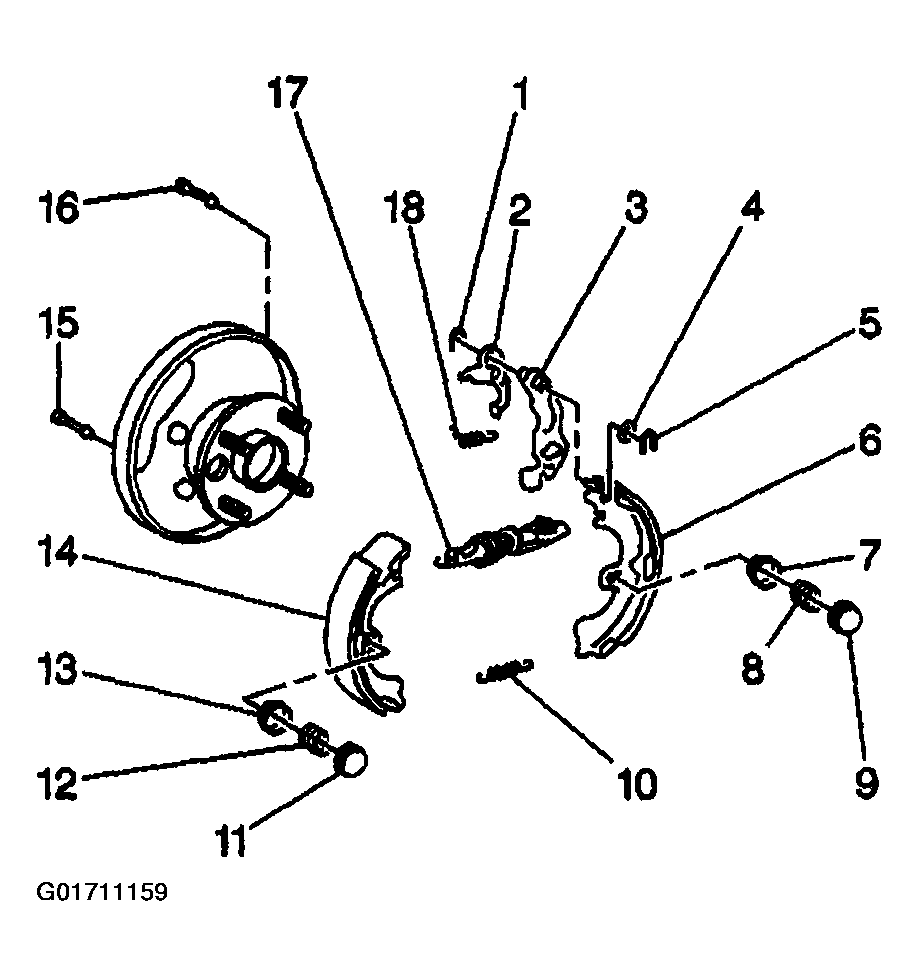

    Fig 1: Removing rear brake shoes
    G01711159Courtesy of GENERAL MOTORS CORP.
