Removal Procedure

  1. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the tire and wheel assembly from the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  3. Remove the brake caliper housing (2) and the brake caliper bracket. Refer to Brake Caliper Bracket Replacement .
    NOTE: Use care in order to not damage the boot and the inner oil seal.
    NOTE: On vehicles equipped with ABS, use care to not damage the speed sensor rotor of the drive axle.

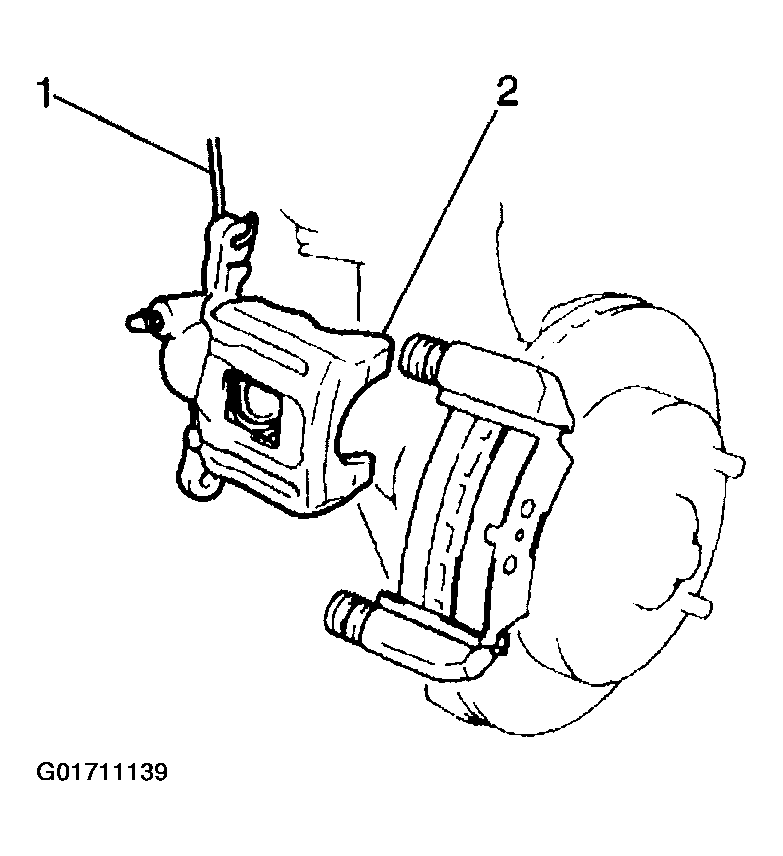

    Fig 1: Removing Brake Caliper Housing
    G01711139Courtesy of GENERAL MOTORS CORP.
  4. Remove the brake rotor from the wheel hub.
  5. If you cannot remove the rotor by hand, install 2 8 N.m bolts into the rotor. Tightening the bolts will force the rotor off of the wheel hub.
