Installation Procedure

  1. Install the 2 brake pad retainers (2,6) to the caliper.
  2. Install the front brake wear indicator (1) to the inner pad (7).
  3. Apply Lubriplate® Lubricant, GM P/N 12346293, or an equivalent lubricant meeting the requirements of NLGI #2 Category LB or GC-LB to both sides of a new inner pad insulator (8).
  4. Install the inner pad insulator (8) to the inner pad (7).
  5. Install the inner pad insulator (9) to the inner pad insulator (8).
  6. Apply Lubriplate® Lubricant, GM P/N 12346293, or an equivalent lubricant meeting the requirements of NLGI #2 Category LB or GC-LB to both sides of a new outer pad insulator (4).

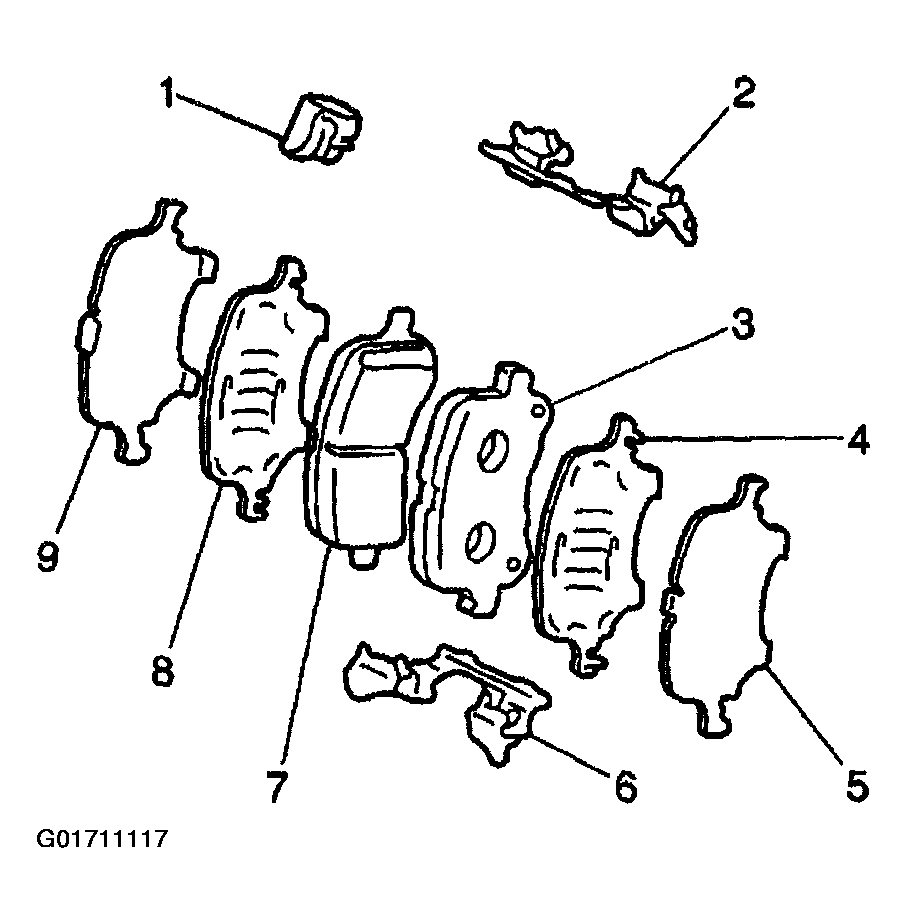

    Fig 1: Installing Brake Pad Components
    G01711117Courtesy of GENERAL MOTORS CORP.
  7. Install the outer pad insulator (4) to the outer pad (3).
  8. Install the outer pad insulator (5) to the outer pad insulator (4).
  9. Install the inner brake pad (7) to the caliper with the wear indicator (1) facing upward.
  10. Install the outer brake pad (3) to the caliper.
  11. Install the caliper housing to the caliper bracket.
  12. Apply Lubriplate® Lubricant, GM P/N 12346293, or an equivalent lubricant meeting the requirements of NLGI #2 Category LB or GC-LB to the caliper pin bolts.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  13. Install the 2 caliper pin bolts (1).

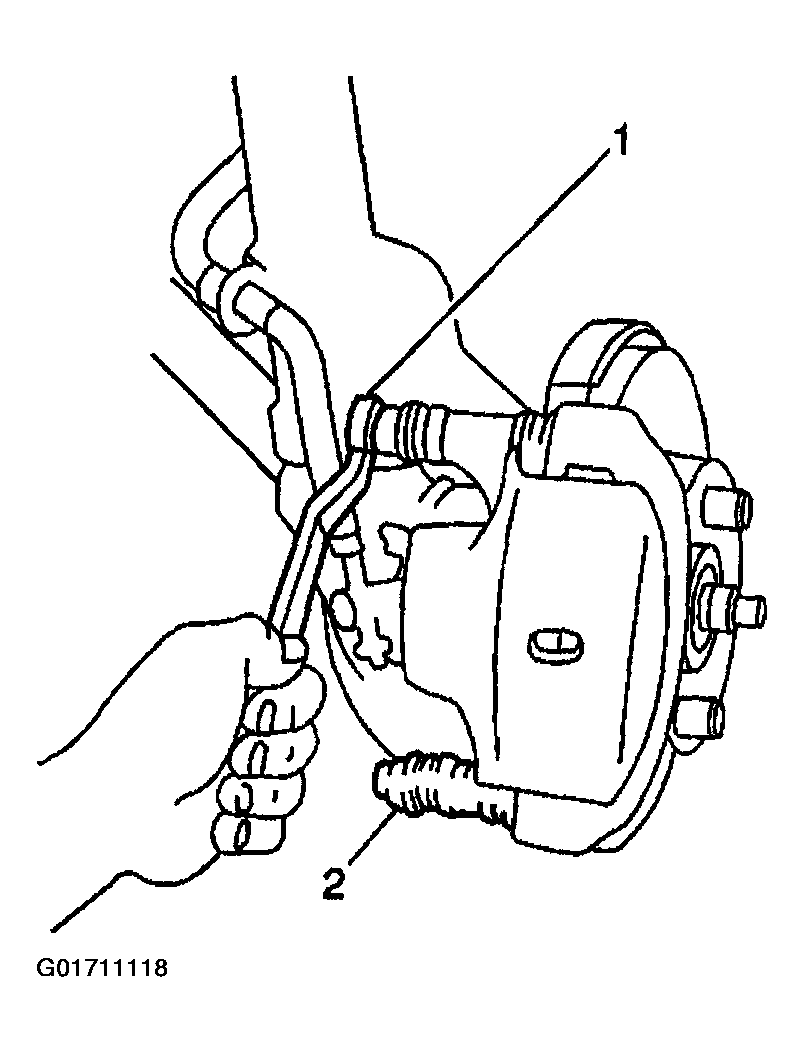

    Fig 2: Installing 2 Caliper Pin Bolts
    G01711118Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the caliper pin bolts to 34 N.m (25 lb ft).

  14. Install the tire and wheel assembly to the vehicle. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  15. Lower the vehicle.
  16. Fill the master cylinder fluid reservoir. Refer to MASTER CYLINDER RESERVOIR REPLACEMENT .
  17. Burnish the pads and the rotors. Refer to Burnishing Pads and Rotors .
