Brake Drum Surface and Wear Inspection

Tools Required:

J 8001  Dial Indicator, or equivalent

  1. With the brake drum removed, clean the braking (friction) surface of the brake drum with GM Brakes Parts Cleaner, GM P/N 12346139, or an equivalent approved brake cleaner.
  2. Inspect the braking surface of the brake drum for the following Braking Surface Conditions:
    • Heavy rust and/or pitting

      Light surface rust can be removed with an abrasive disc. Heavy surface rust and/or pitting must be removed by refinishing the drum.

    • Cracks and/or heat spots
    • Excessive bluing discoloration
    • Missing balance weights
  3. If the braking surface of the brake drum exhibits one or more of the Braking Surface Conditions, the drum requires refinishing or replacement.
  4. Using a brake drum micrometer calibrated in thousands of an inch, measure and record any grooves present on the drum braking surface.

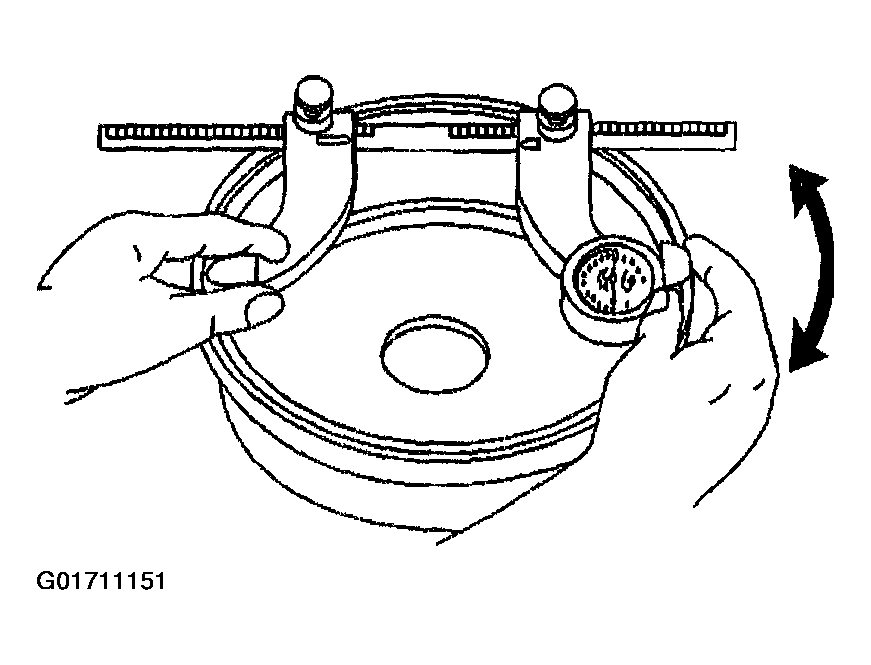

    Fig 1: Using Brake Drum Micrometer
    G01711151Courtesy of GENERAL MOTORS CORP.

    Ensure that the measurements are only taken within the brake shoe lining contact area.

  5. Compare the groove (scoring) depth recorded to the following specification:

    Specification

    Brake drum maximum allowable scoring 1.00 mm (0.039 in).

  6. If the brake drum scoring depth exceeds the specification, or if an excessive amount of scoring is present, the drum requires refinishing or replacement.
  7. Mount the brake drum on a brake lathe.
  8. Mount a dial indicator, J 8001 or equivalent, and position the indicator button so it contacts the braking surface of the brake drum at a 90 degree angle, approximately 19 mm (0.75 in) from the drum's outer edge.
  9. Measure and record the radial runout of the brake drum.
    1. 9.1. Rotate the drum until the lowest reading is displayed on the indicator dial, then zero the dial.
    2. 9.2. Rotate the drum until the highest reading is displayed on the dial.
  10. Compare the radial runout of the brake drum to the following specification:

    Specification

    Brake drum maximum allowable radial runout 0.04 mm (0.00016 in).

  11. If the brake drum radial runout exceeds the specification, the drum requires refinishing or replacement.
