Removal Procedure

  1. Gently pry the rear of the automatic transaxle control opening cover bezel (1) in order to release the tabs.
  2. Remove the control opening cover bezel (1) from the console.

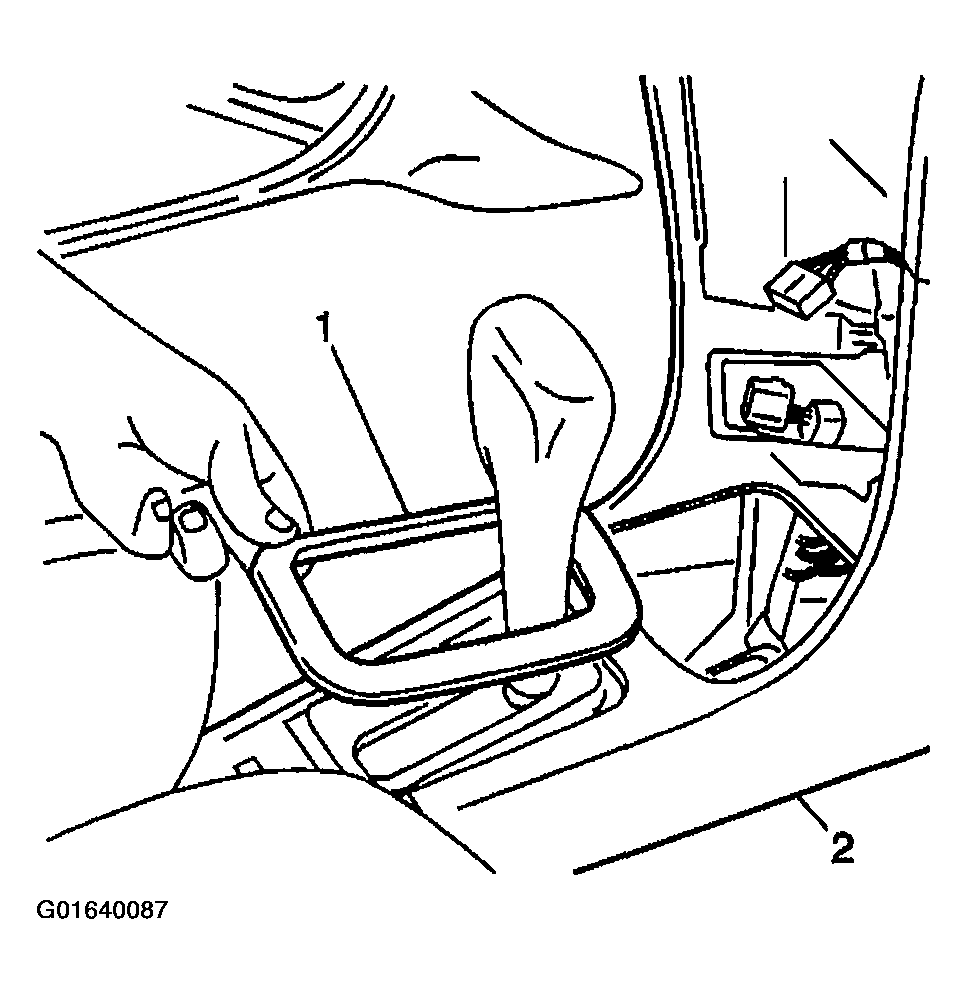

    Fig 1: Removing Control Opening Cover Bezel
    G01640087Courtesy of GENERAL MOTORS CORP.
