Removal Procedure

  1. Tilt the steering column down in order to gain the necessary clearance to remove the IP cluster trim plate.
  2. Remove the 2 screws which secure the IP cluster trim plate (2).
  3. Disengage the 2 lower clips (1).
  4. Gently remove the cluster trim plate (2) from the instrument panel assembly.

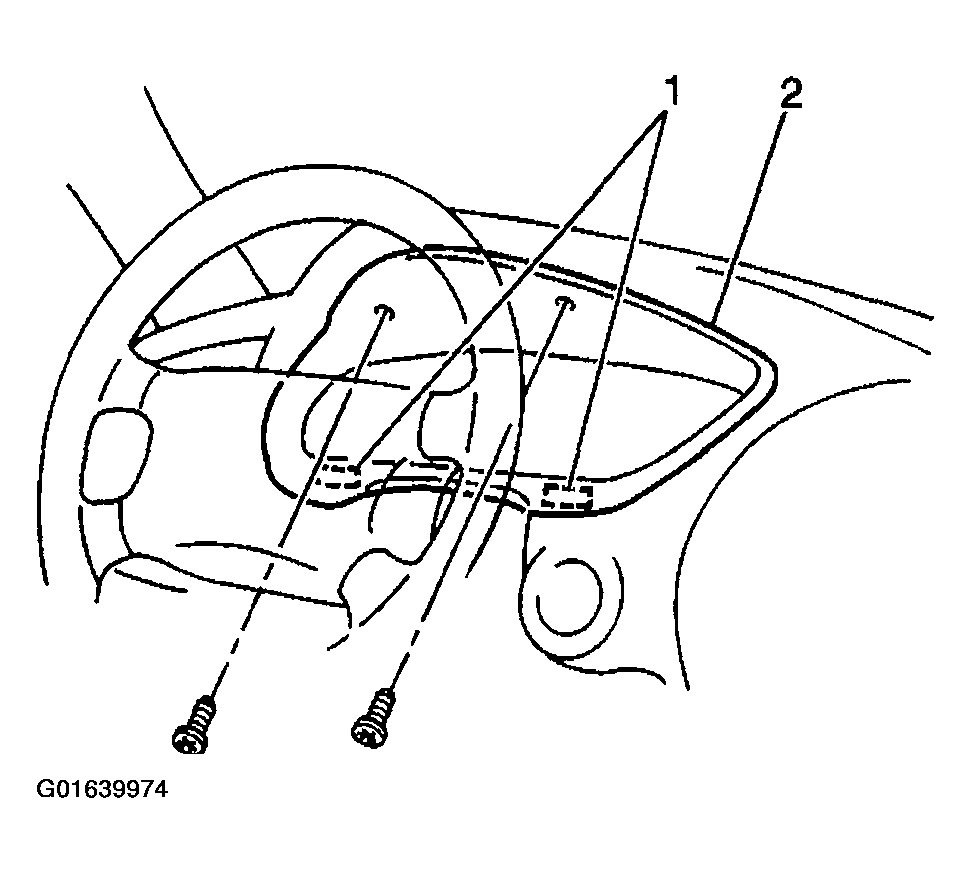

    Fig 1: Removing 2 Screws Which Secure IP Cluster Trim Plate
    G01639974Courtesy of GENERAL MOTORS CORP.
