Installation Procedure

  1. Install the printed instrument cluster circuit to the instrument cluster case.
  2. Install the relays to the cluster case.
  3. Install the bulbs to the sockets, if removed.
  4. Install all of the instrument cluster bulb sockets to the cluster case.
  5. Install the fuel and temperature gauge (1), if equipped. Refer to Fuel/Temperature Gage Replacement .

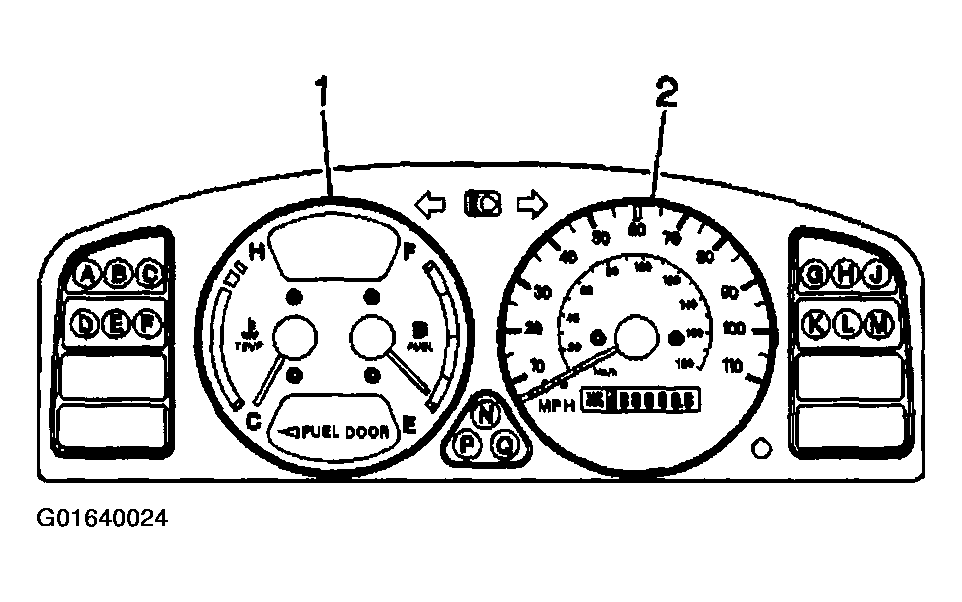

    Fig 1: Installing Fuel And Temperature Gauge
    G01640024Courtesy of GENERAL MOTORS CORP.
  6. Install the engine coolant temperature gauge (4), if equipped. Refer to Temperature Gage Replacement .
  7. Install the fuel gauge (3), if equipped. Refer to Fuel Gage Replacement .
  8. Install the engine tachometer (1), if equipped. Refer to Tachometer Replacement .
  9. Install the speedometer (2). Refer to Speedometer Replacement .

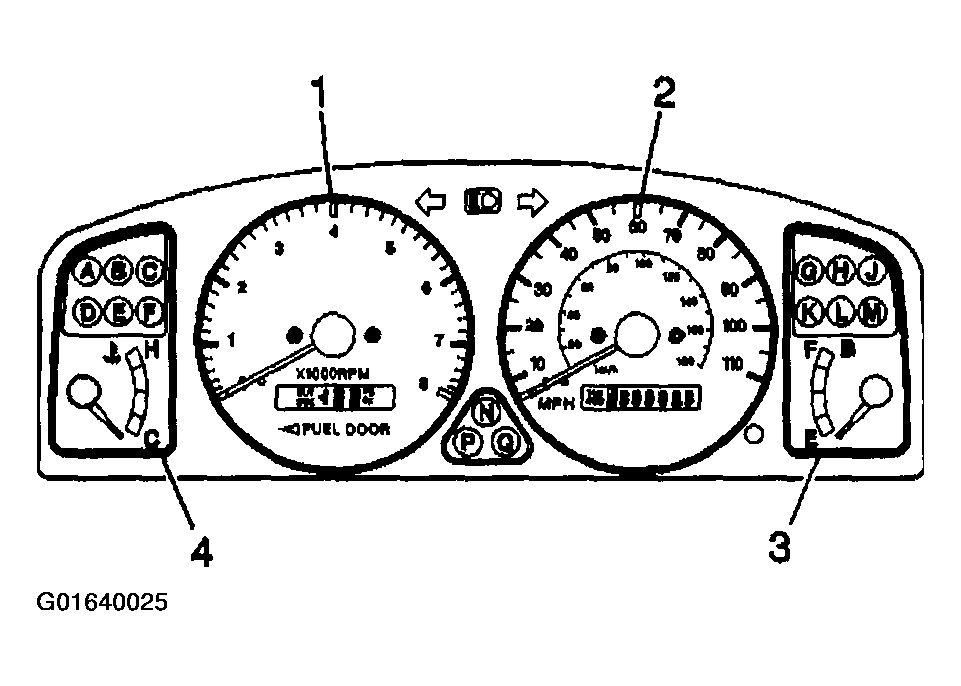

    Fig 2: Installing Gauges
    G01640025Courtesy of GENERAL MOTORS CORP.
