Removal Procedure

  1. Remove the instrument panel assembly. Refer to IP Assembly Replacement .
  2. Remove the following components from the instrument panel (2):
    • The 1 screw
    • The right I/P outer air outlet
    • The plastic retainer
    • The left I/P outer air outlet
    • The 2 screws
    • The 6 wire harness retainers
    • The instrument panel wiring harness (5)

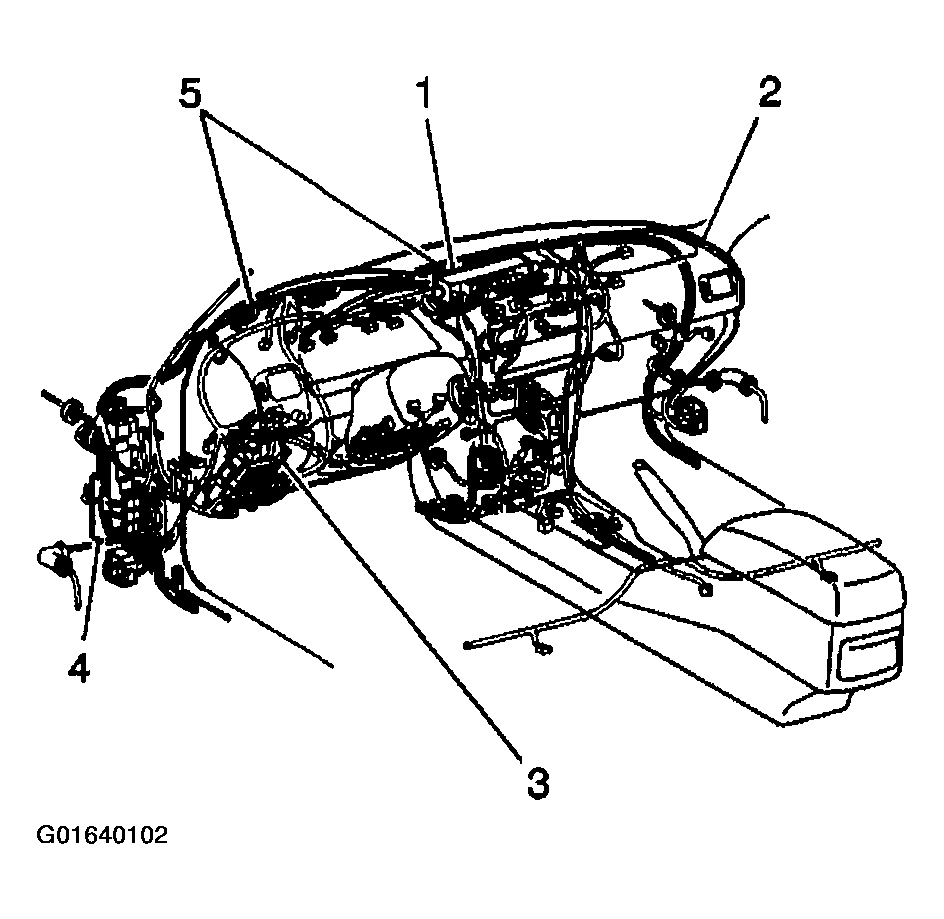

      Fig 1: Removing Instrument Panel Components
      G01640102Courtesy of GENERAL MOTORS CORP.
