Installation Procedure

  1. Install the instrument panel wiring harness (5) to the instrument panel assembly (2). Secure the harness with the following:
    • The 6 wire harness retainers
    • The 2 screws

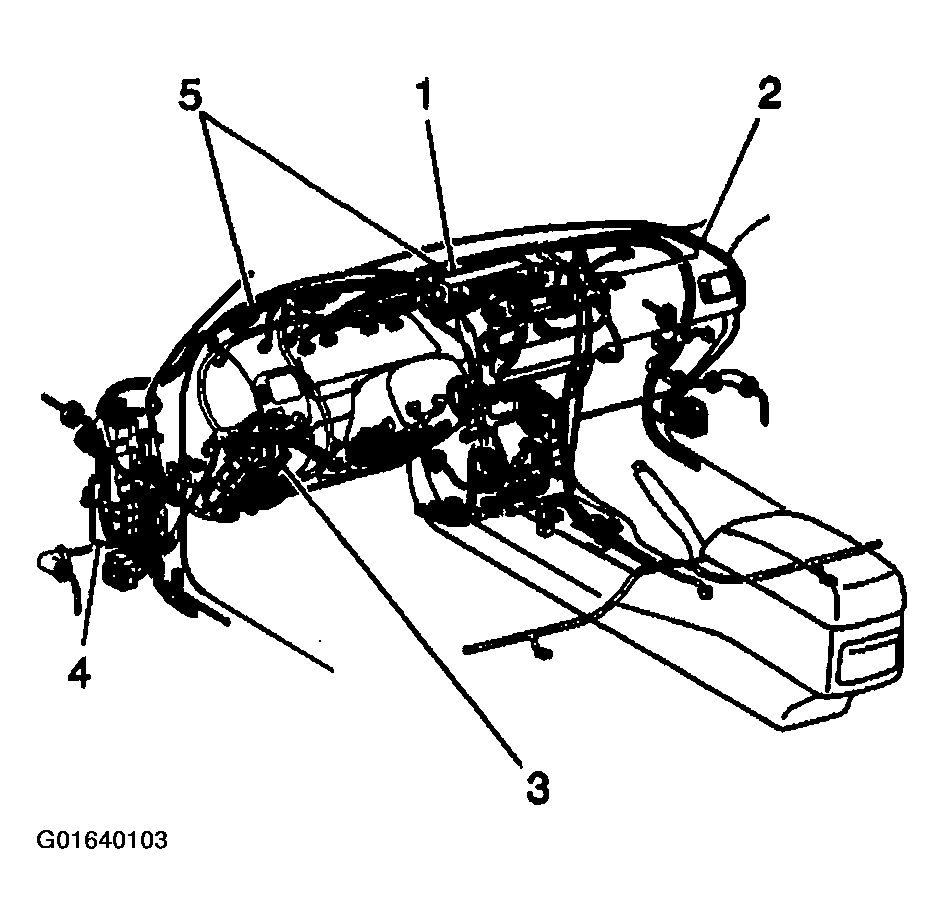

    Fig 1: Installing Instrument Panel Wiring Harness To Instrument Panel Assembly
    G01640103Courtesy of GENERAL MOTORS CORP.
  2. Install the left I/P outer air outlet to the instrument panel assembly. Secure the duct with the plastic retainer.
  3. Install the right I/P outer air outlet to the instrument panel assembly. Secure the duct with the screw.
  4. Install the instrument panel assembly. Refer to IP Assembly Replacement .
