Removal Procedure

  1. Remove the IP and instrument lamp dimmer switch knob (1).

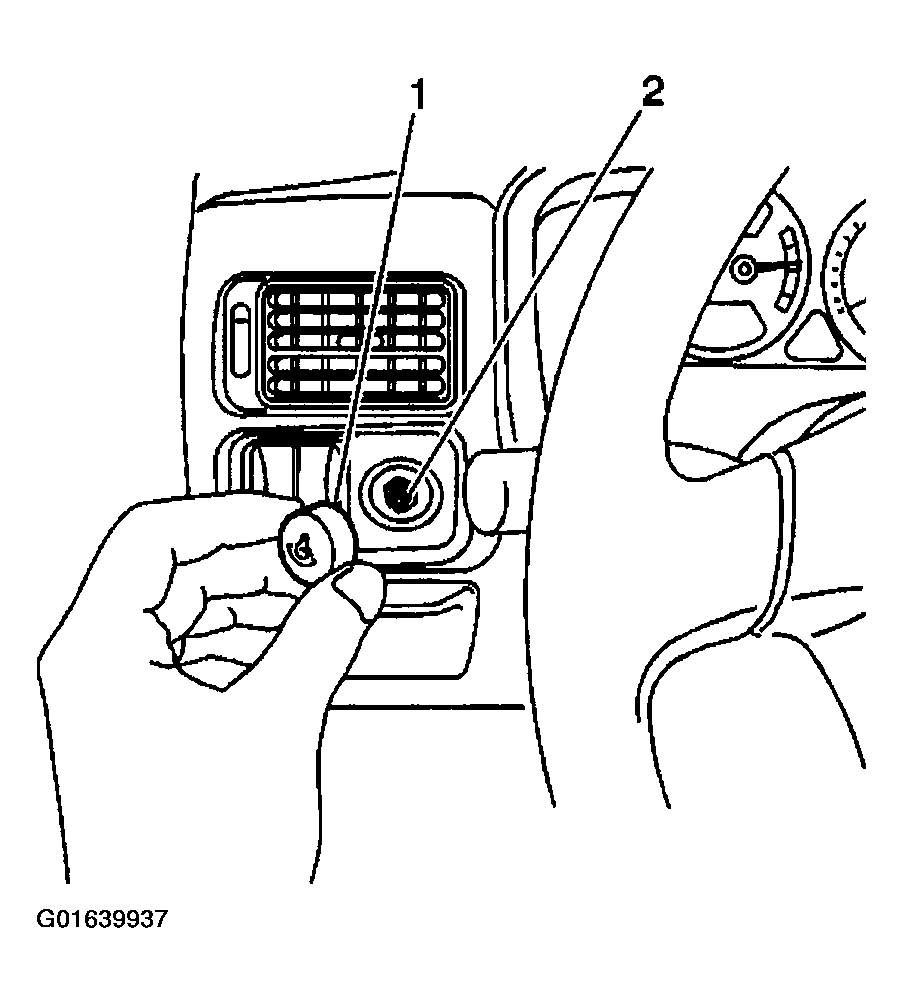

    2. Fig 1: Removing IP And Instrument Lamp Dimmer Switch Knob
    G01639937Courtesy of GENERAL MOTORS CORP.
  2. Remove the IP lamp dimmer switch nut (2) from the IP lamp dimmer switch.
  3. Using a taped flat bladed tool, gently pry and release the 4 clips around the lamp dimmer switch/remote control rearview mirror switch trim plate (2).

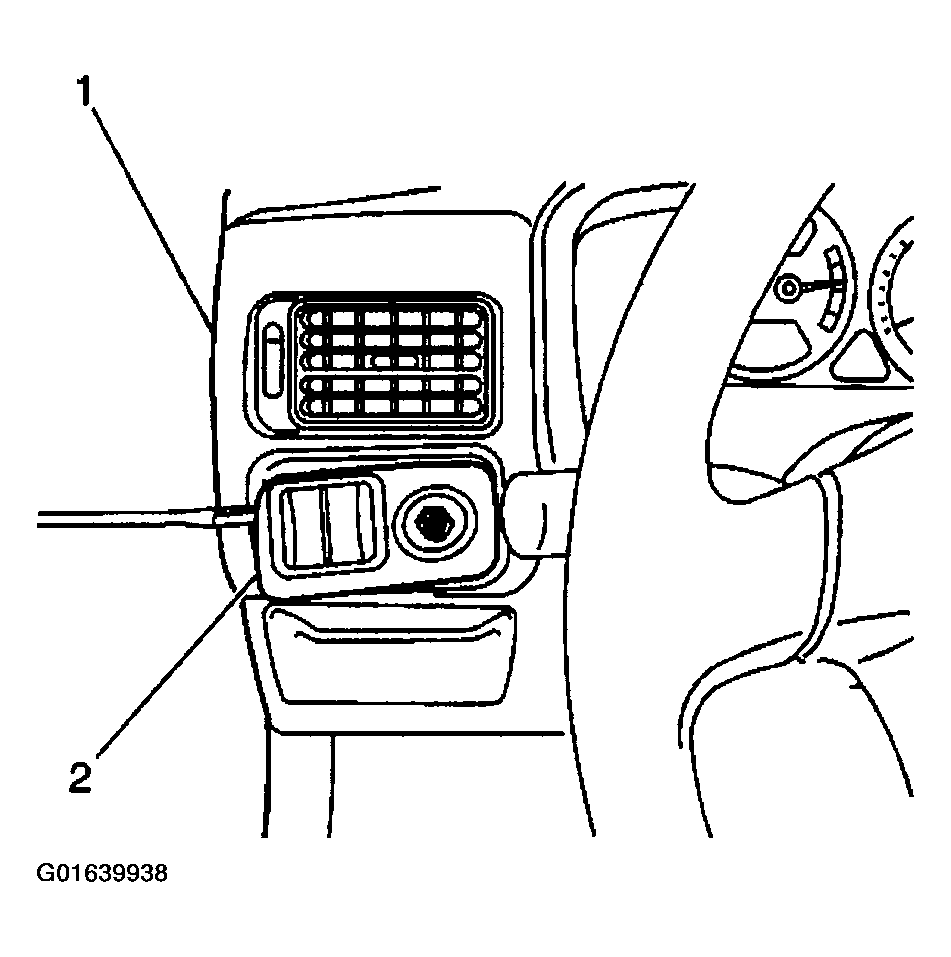

    Fig 2: Release 4 Clips Around Lamp Dimmer Switch/Remote Control Rearview Mirror Switch Trim Plate
    G01639938Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the dimmer switch electrical connector (2).

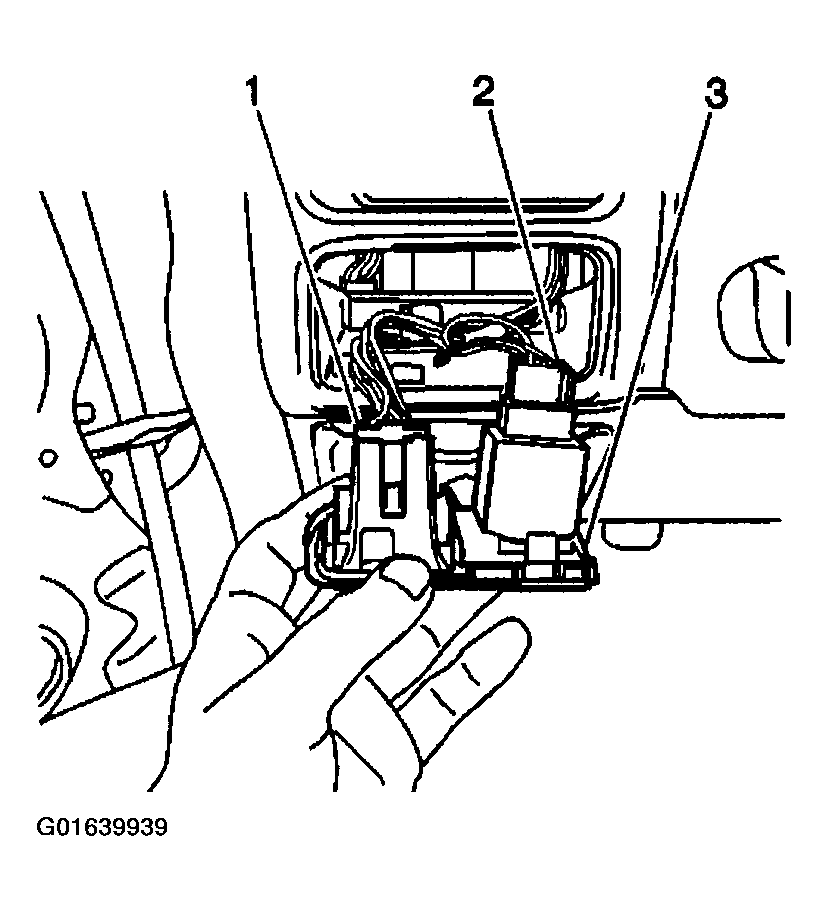

    Fig 3: Disconnecting Dimmer Switch Electrical Connector
    G01639939Courtesy of GENERAL MOTORS CORP.
  5. Remove the dimmer switch from the vehicle.
