Removal Procedure

  1. Using a taped flat bladed tool, gently pry and release the 3 clips around the hazard warning switch trim plate (1).

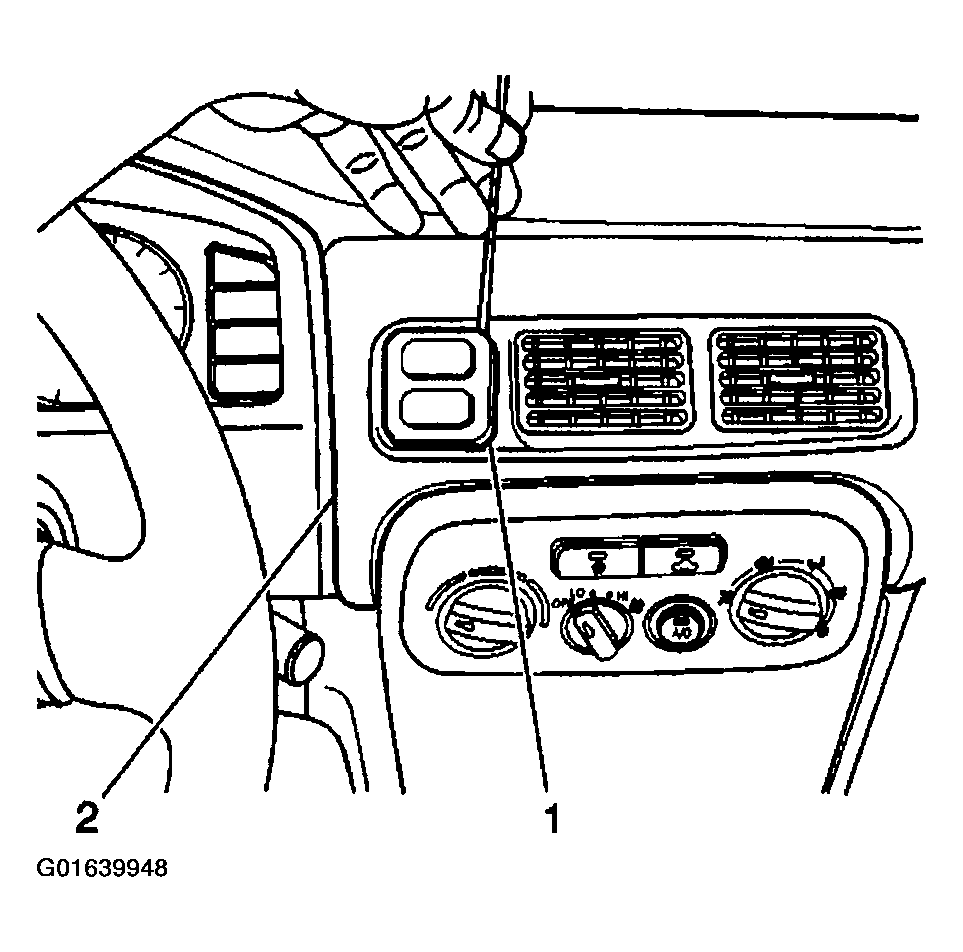

    Fig 1: Prying And Releasing 3 Clips Around Hazard Warning Switch Trim Plate
    G01639948Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the hazard warning switch electrical connector (1).

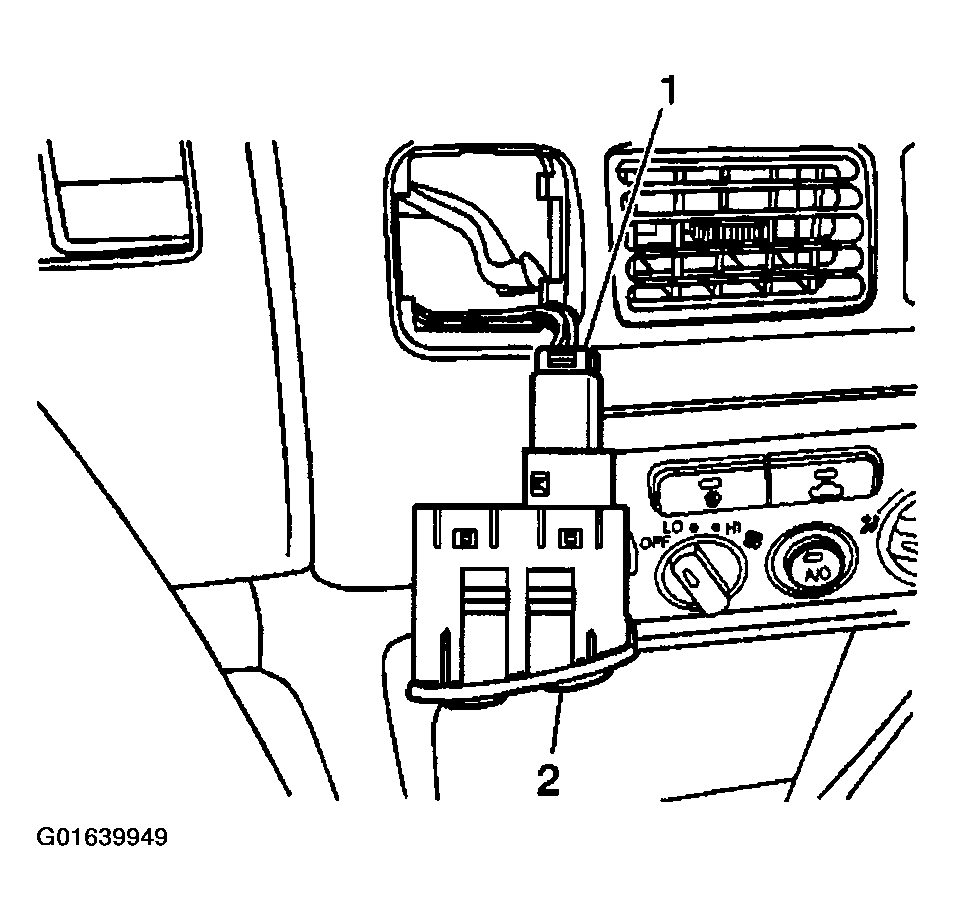

    3. Fig 2: Disconnecting Hazard Warning Switch Electrical Connector
    G01639949Courtesy of GENERAL MOTORS CORP.
  3. Depress the tab on each side of the hazard switch.
  4. Remove the switch from the hazard warning switch trim plate (2).
