Removal Procedure

  1. Remove the instrument cluster retainer. Refer to BEZEL REPLACEMENT - IP Cluster .

    Important:  Do not remove the needle from the fuel gauge. There is no detent or flat spot on the shaft in order to indicate the correct placement.

  2. Remove the 3 screws (1) which secure the fuel gauge to the instrument cluster case.

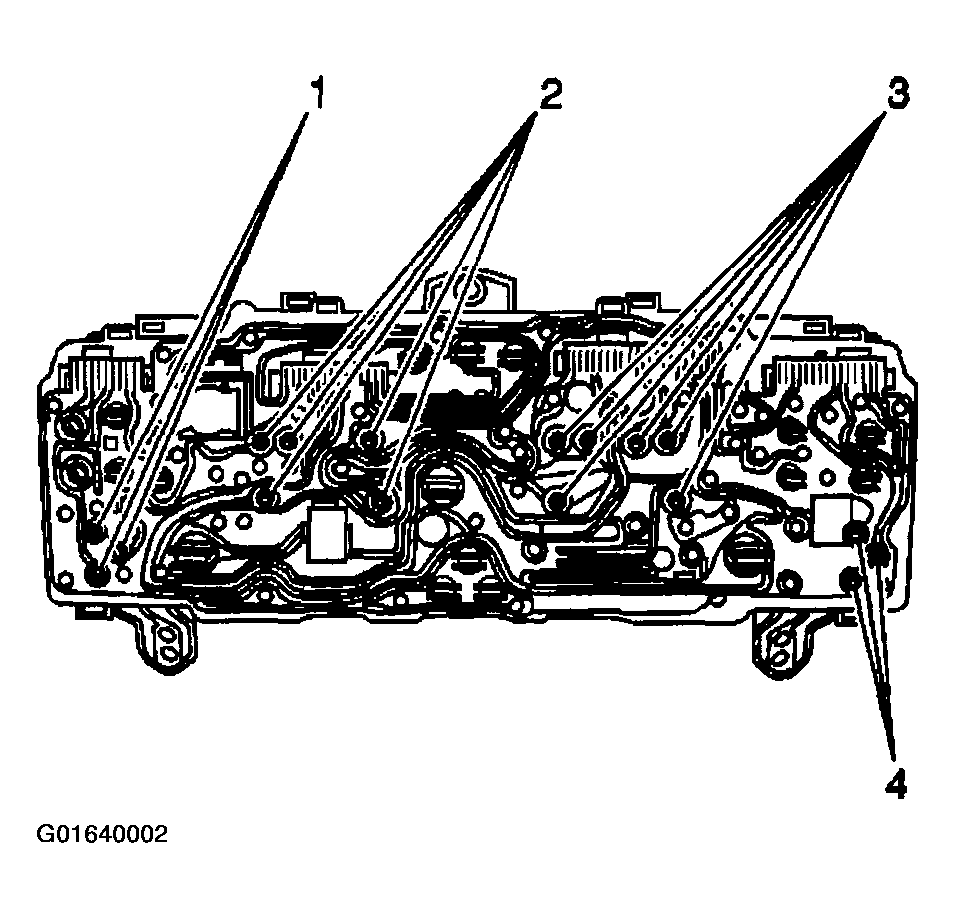

    Fig 1: Removing 3 Screws Which Securing Fuel Gauge To Instrument Cluster Case
    G01640002Courtesy of GENERAL MOTORS CORP.
  3. Remove the fuel gauge (3) from the instrument cluster case.

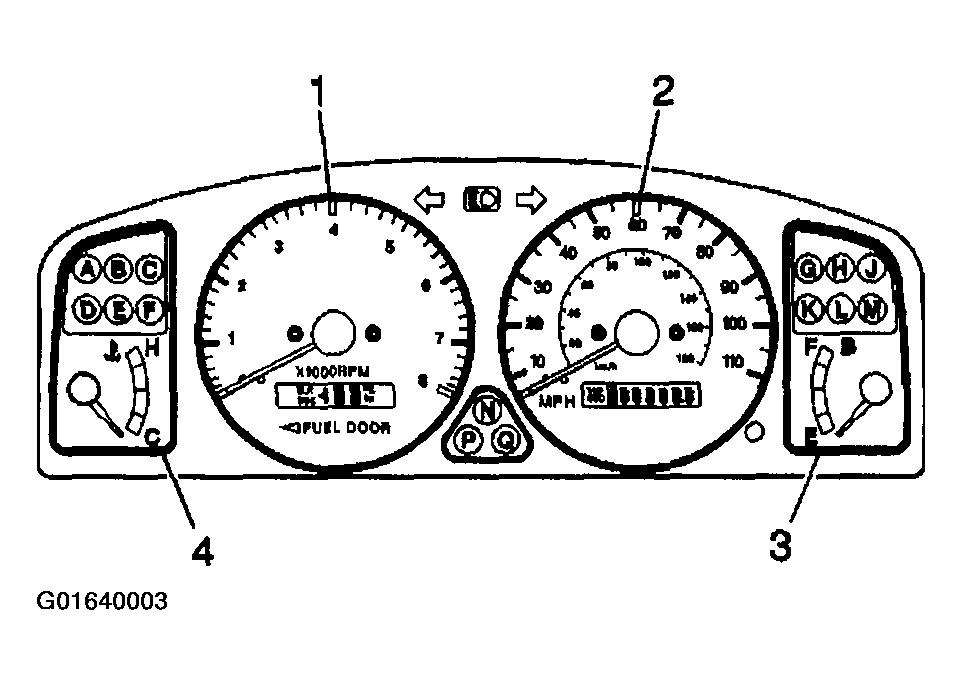

    Fig 2: Removing Fuel Gauge From Instrument Cluster Case
    G01640003Courtesy of GENERAL MOTORS CORP.
