Removal Procedure

  1. Remove the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - IP .
  2. Remove the following components from the instrument panel compartment:
    • The 2 I/P compartment door hinge pins (2)
    • The I/P compartment door (1)

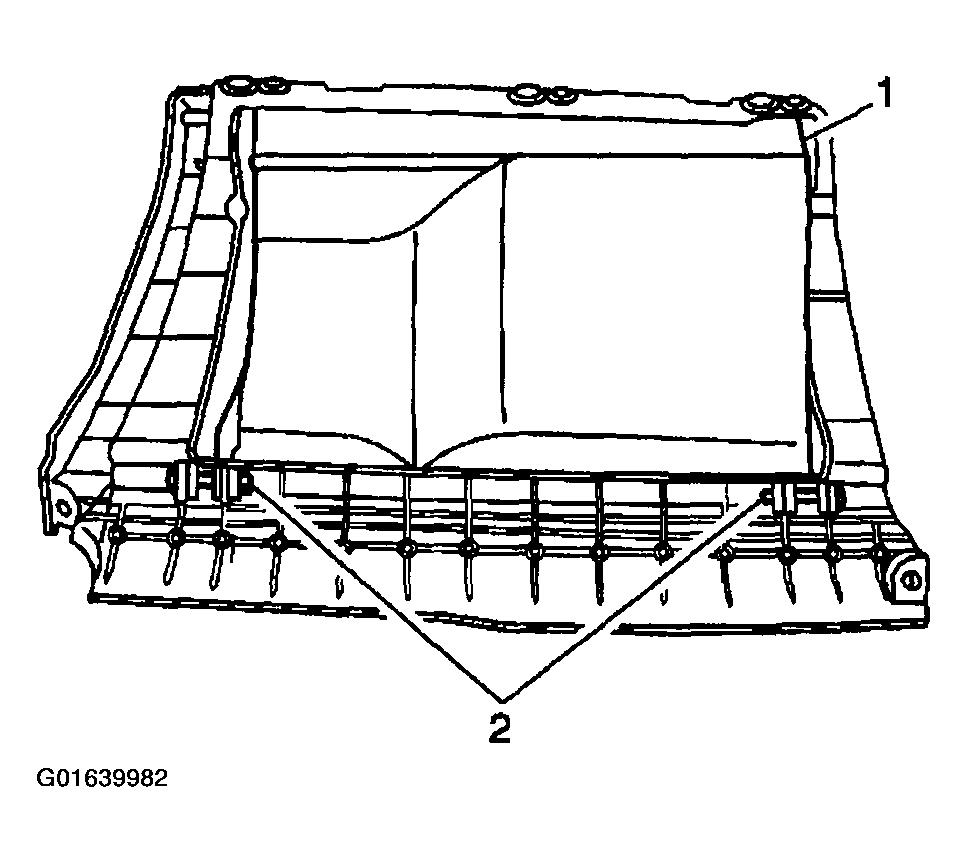

    Fig 1: Removing 2 I/P Compartment Door Hinge Pins
    G01639982Courtesy of GENERAL MOTORS CORP.
  3. Remove the following components from the I/P compartment door, if necessary:
    • The 2 screws
    • The I/P compartment door lock
