Removal Procedure

Remove the screw (3) from each side of the front floor rear console (2) which secures the rear console to the front floor front console (1).

Fig 1: Removing Screw
Courtesy of GENERAL MOTORS CORP.

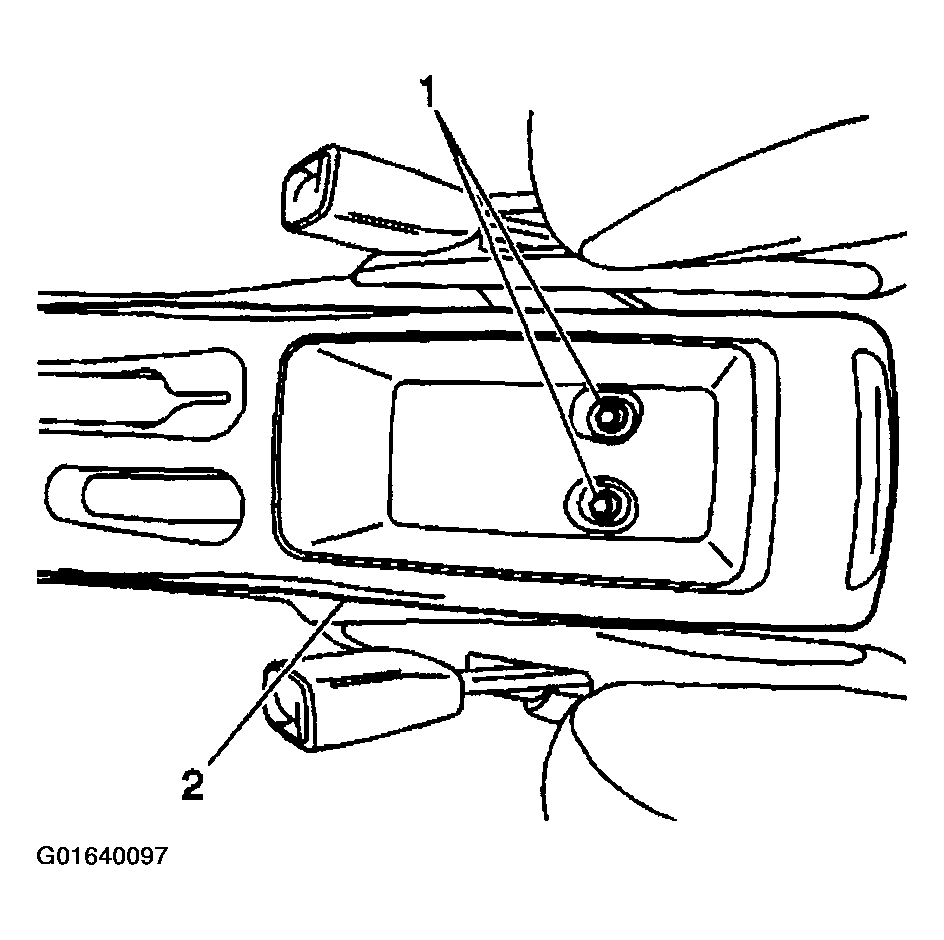

Remove the 2 bolts (1) from the rear compartment of the rear console (2).
Raise the parking brake lever.

Fig 2: Removing 2 Bolts From Rear Compartment Of Rear Console
Courtesy of GENERAL MOTORS CORP.
Remove the front floor rear console (1) from the vehicle.

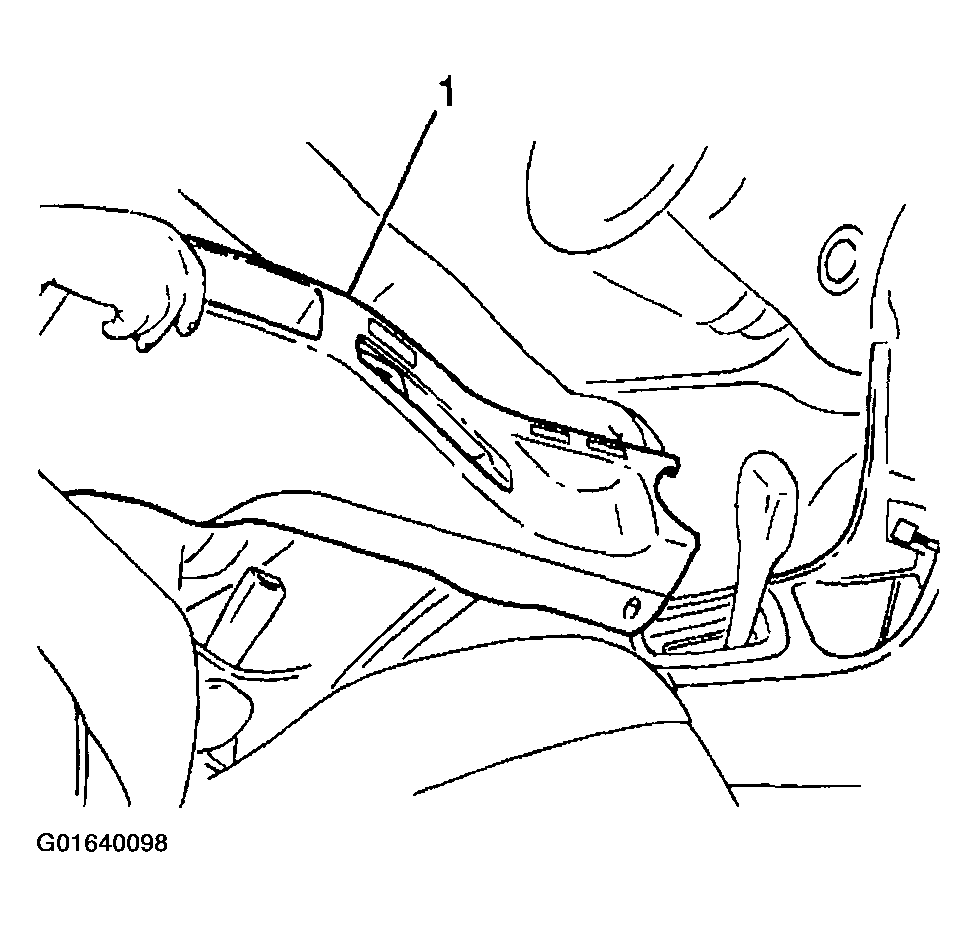

Fig 3: Removing Front Floor Rear Console
Courtesy of GENERAL MOTORS CORP.
