Installation Procedure

  1. Install the front floor front console (2) to the vehicle. Secure the console to the instrument panel with the 2 screws.
  2. Install the front floor rear console. Refer to CONSOLE REPLACEMENT - Rear Floor .
  3. Install the automatic transaxle control opening cover bezel (1), if equipped. Refer to TRIM PLATE REPLACEMENT - Console .
  4. Install the manual transaxle control lever boot, if equipped. Refer to Console Shift Boot Replacement .
  5. Install the I/P drivers knee bolster reinforcement. Refer to Knee Bolster Replacement .
  6. Install the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - IP .
  7. Install the radio. Refer to RADIO REPLACEMENT .

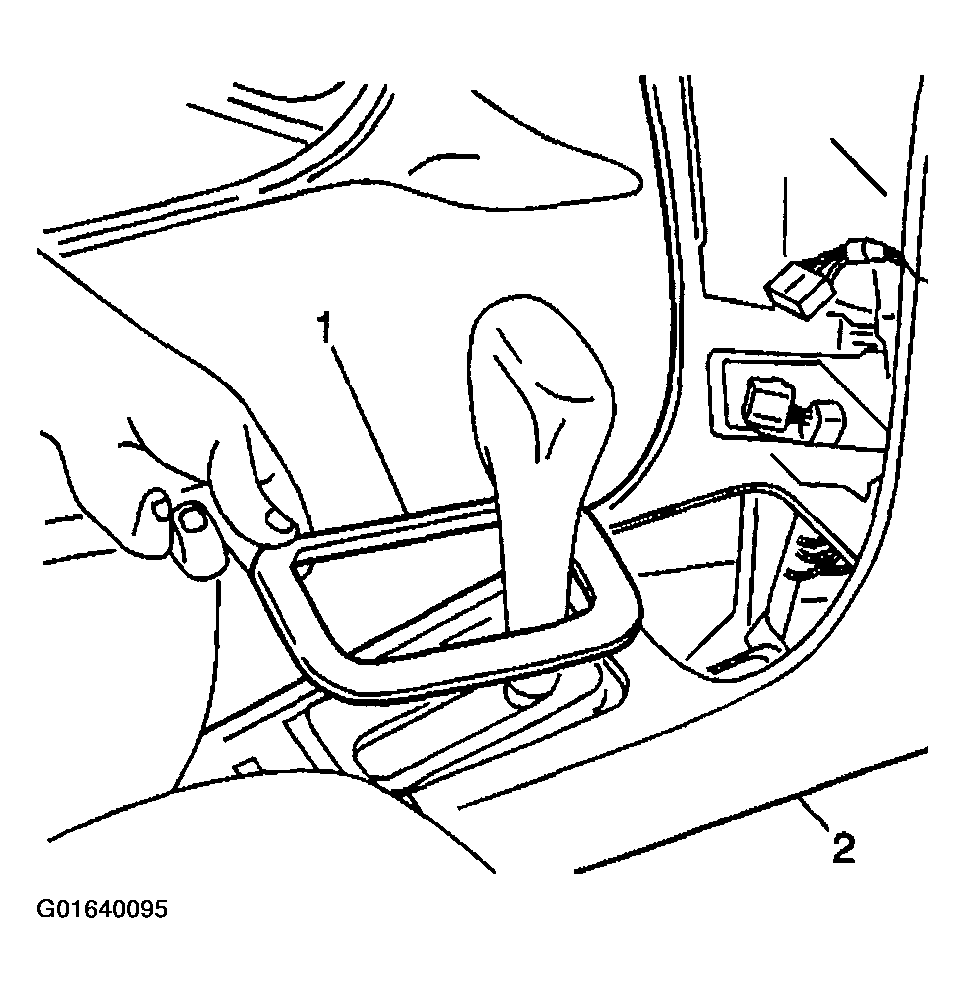

    Fig 1: Installing Automatic Transaxle Control Opening Cover Bezel
    G01640095Courtesy of GENERAL MOTORS CORP.
