Installation Procedure

  1. Install the instrument panel compartment (2) to the instrument panel. Secure the compartment with the upper 3 screws (1).

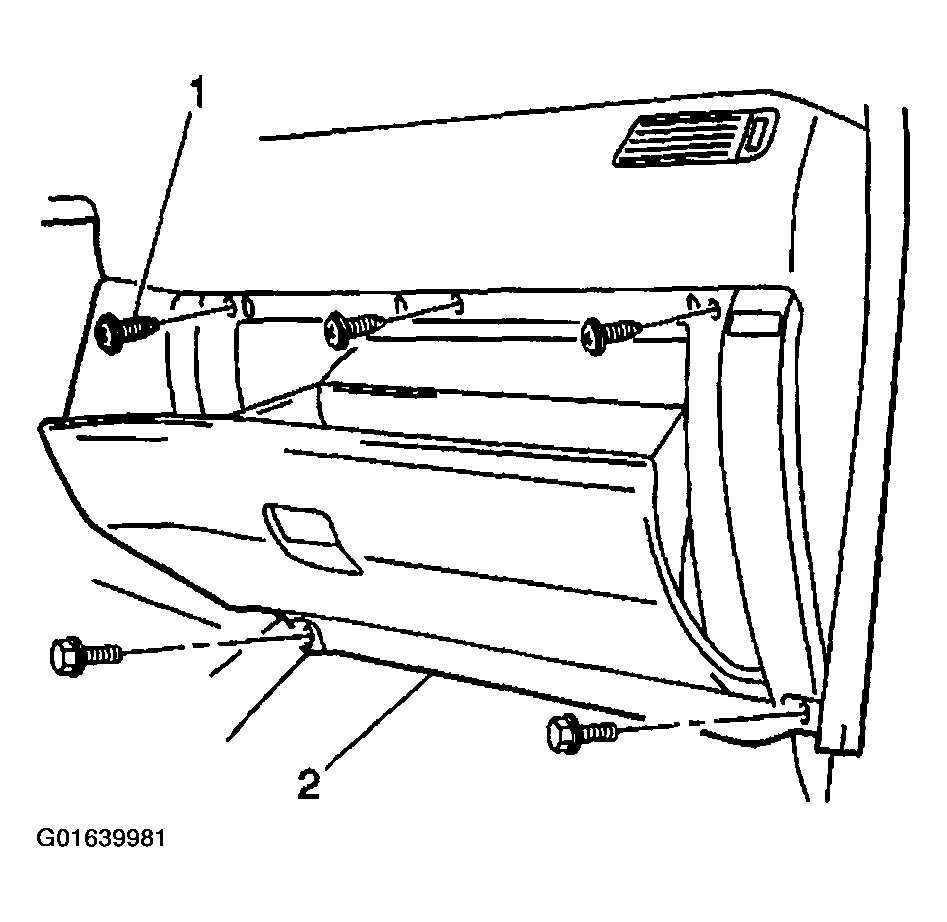

    2. Fig 1: Installing Instrument Panel Compartment
    G01639981Courtesy of GENERAL MOTORS CORP.
  2. Close the instrument panel compartment door.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the 2 I/P compartment lower retaining bolts.

    Tighten

    Tighten the I/P compartment lower retaining bolts to 15 N.m (11 lb ft).

  4. Install the right body hinge pillar trim panel. Refer to TRIM REPLACEMENT -- HINGE PILLAR .
