Installation Procedure

Important:  The cigar lighter lamp lens will not seat correctly if the grooves on the lens are not lined up with the grooves on the center trim plate.

1. Install the cigar lighter lamp lens (2) to the center trim plate (1).
   Fig 1: Installing Cigar Lighter Lamp Lens To Center Trim Plate

   Courtesy of GENERAL MOTORS CORP.
2. Install the cigar lighter housing and element (2) to the cigar lighter lamp lens.

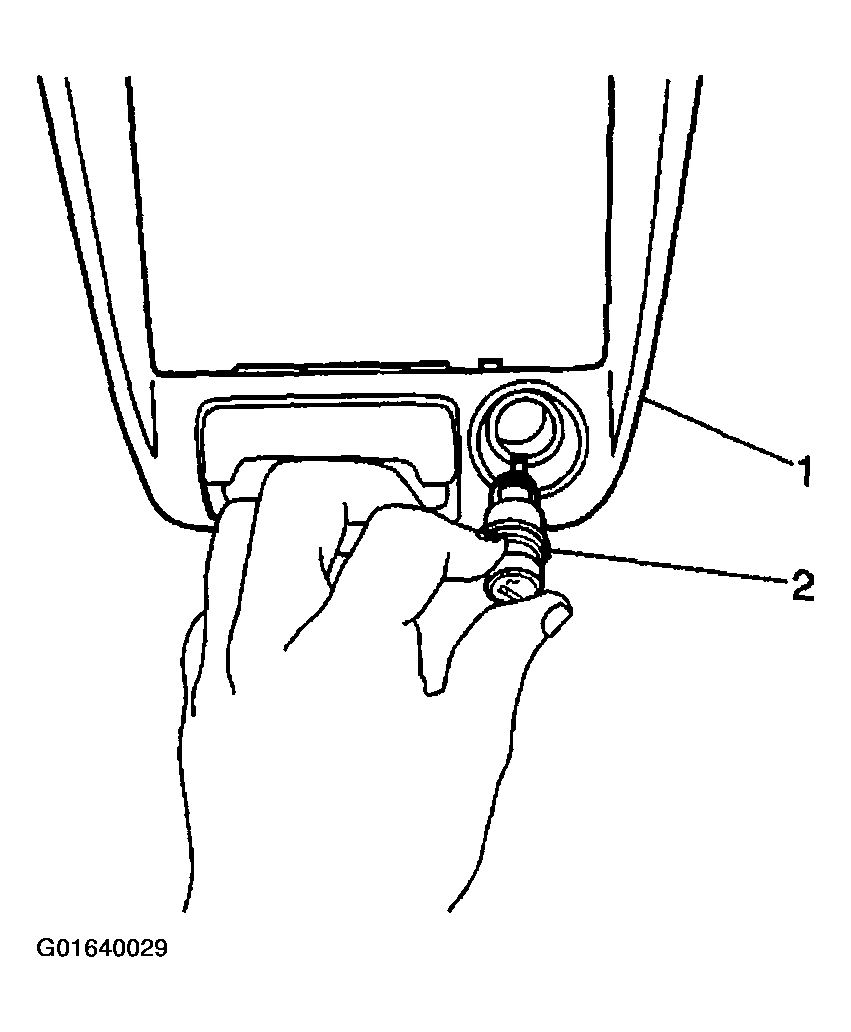

   Fig 2: Installing Cigar Lighter Housing And Element

   Courtesy of GENERAL MOTORS CORP.
3. Install the cigar lighter housing rear retainer (3) to the cigar element housing.

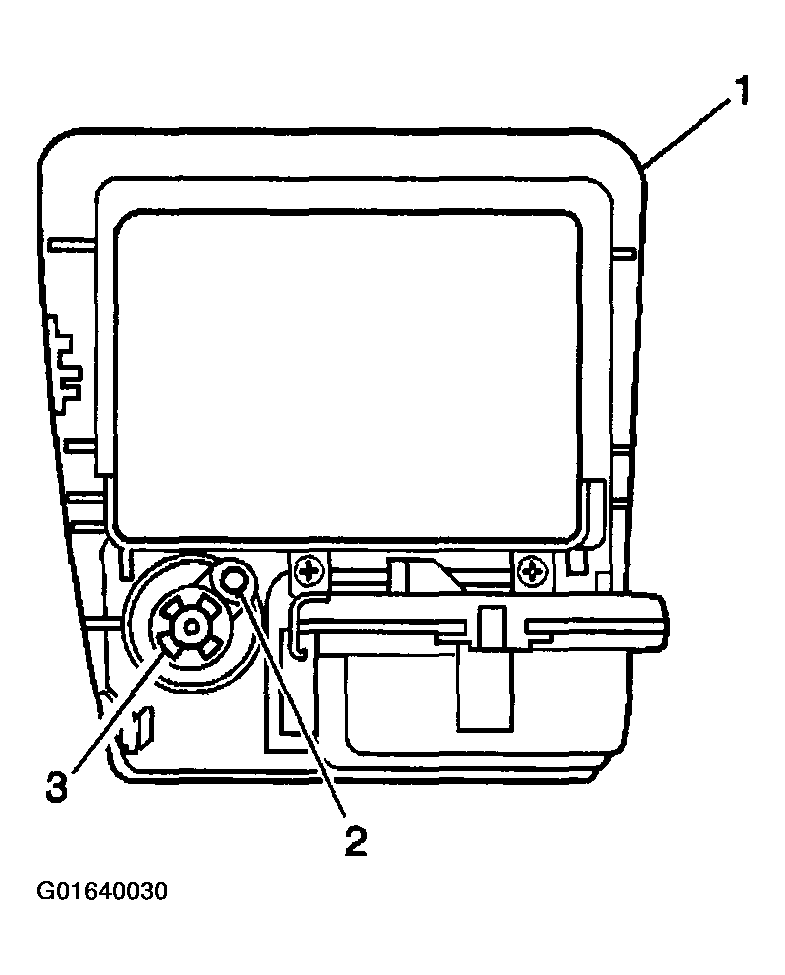

Fig 3: Installing Cigar Lighter Housing Rear Retainer
Courtesy of GENERAL MOTORS CORP.
4. Install the IP accessory center trim plate. Refer to TRIM PANEL REPLACEMENT - IP Center .
