Removal Procedure

  1. Using a taped flat bladed tool, gently pry and release the tab on each side of the right vent louver (1).
  2. Remove the right vent louver (1) from the I/P assembly (2).

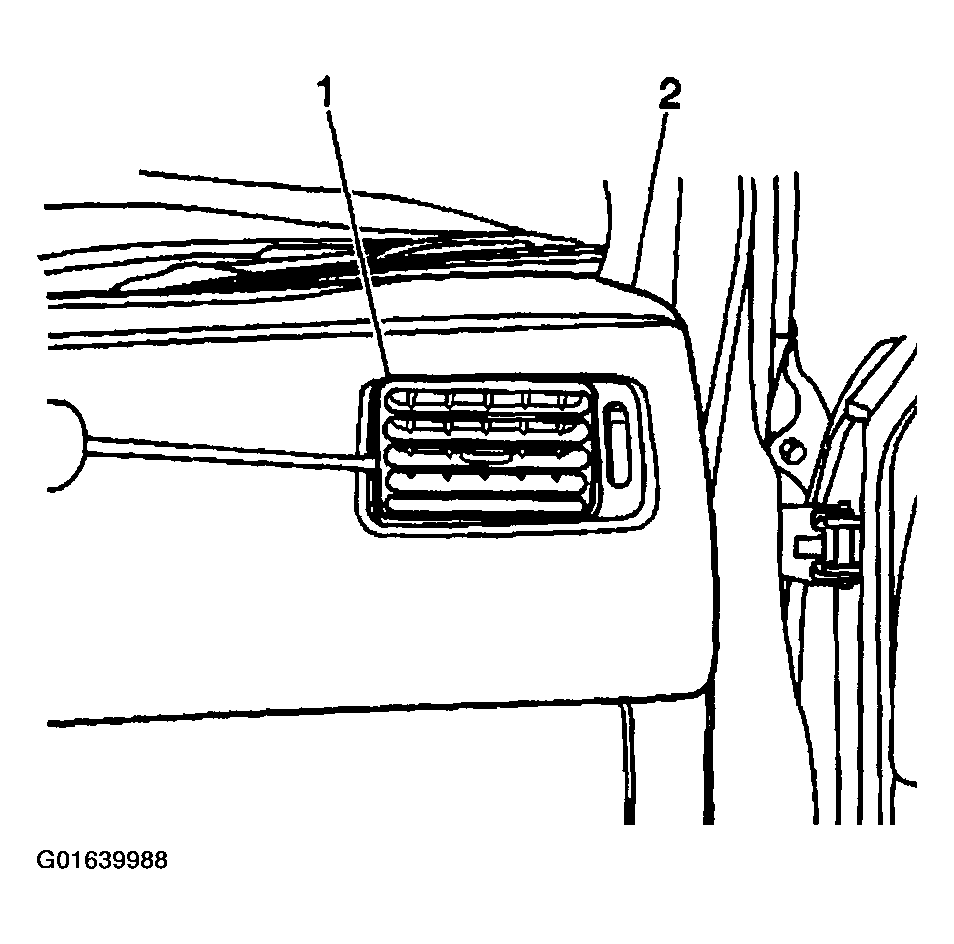

    Fig 1: Prying And Releasing Tab On Each Side Of Right Vent Louver
    G01639988Courtesy of GENERAL MOTORS CORP.
