Removal Procedure

  1. Using a taped flat bladed tool, gently pry and release the tab on each side of the left vent louver (1).
  2. Remove the left vent louver (1) from the I/P assembly (2).

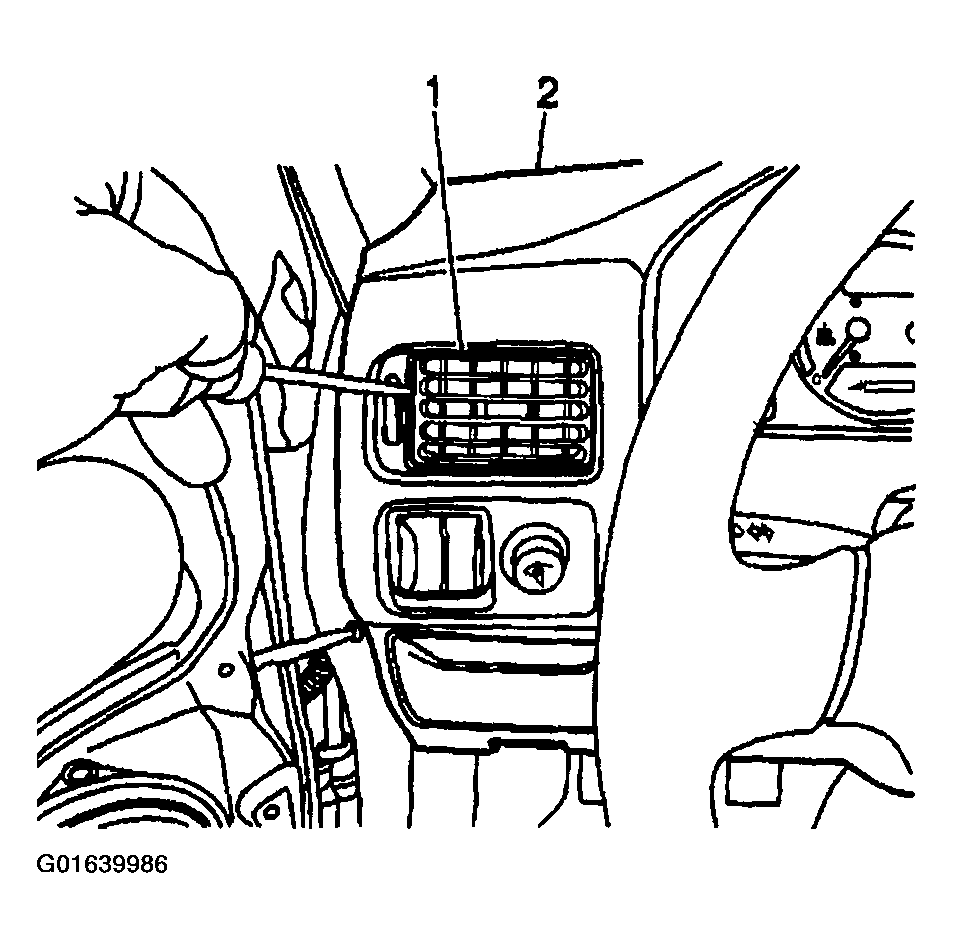

    Fig 1: Removing Left Vent Louver From I/P Assembly]
    G01639986Courtesy of GENERAL MOTORS CORP.
