Installation Procedure

  1. Lubricate the 2 new guide pin seals (2) with Lubriplate® Lubricant, GM P/N 12346293, or an equivalent lubricant meeting the requirements of NLGI #2 Category LB or GC-LB.

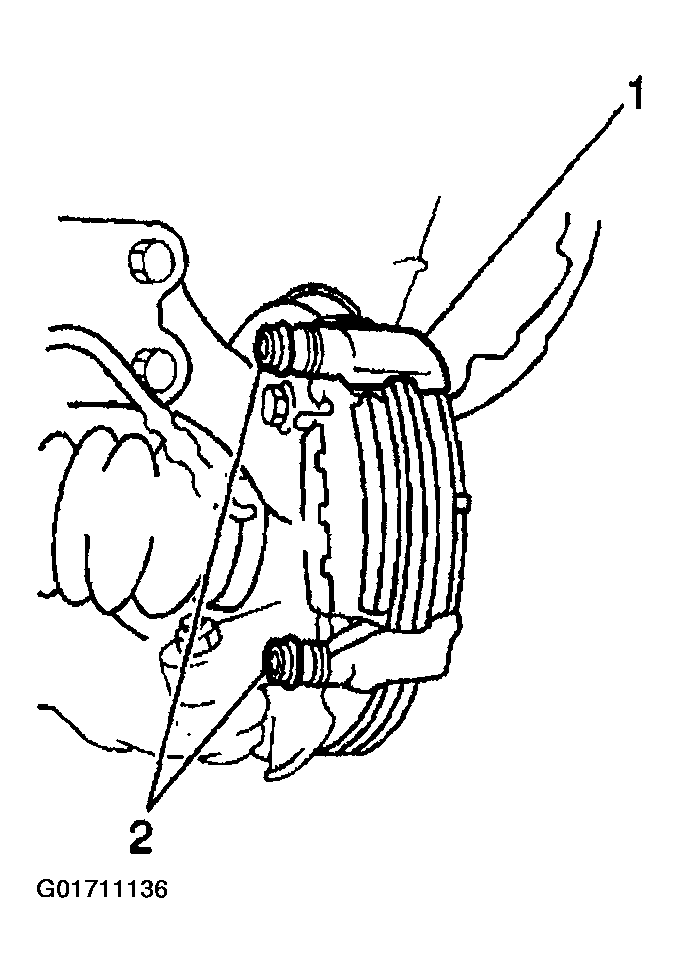

    2. Fig 1: Lubricating 2 New Guide Pin Seals
    G01711136Courtesy of GENERAL MOTORS CORP.
  2. Use a 19 mm socket and a hammer in order to install the 2 new guide pin seals (2) to the caliper bracket (1). Verify that the metal plate portion of the guide pin seal fits snugly on the caliper bracket.
  3. Lubricate the 2 guide pins with Lubriplate® Lubricant, GM P/N 12346293, or an equivalent lubricant meeting the requirements of NLGI #2 Category LB or GC- LB.
  4. Lubricate the caliper bolt sleeve with Lubriplate® Lubricant, GM P/N 12346293, or an equivalent lubricant meeting the requirements of NLGI #2 Category LB or GC-LB.
  5. Insert the guide pin with the caliper bolt sleeve into the upper portion of the caliper bracket.
  6. Insert the guide pin without the caliper bolt sleeve into the lower portion of the caliper bracket.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  7. Install the caliper bracket to the vehicle. Install the 2 caliper bracket mounting bolts.

    Tighten

    Tighten the 2 bolts to 88 N.m (65 lb ft).

  8. Install the caliper to the caliper bracket.
  9. Apply Lubriplate® Lubricant, GM P/N 12346293, or an equivalent lubricant meeting the requirements of NLGI #2 Category LB or GC-LB, to the caliper pin bolts.
    NOTE: Make sure the brake hose is not twisted or kinked after installation. Damage to the hose could result.
  10. Install the 2 caliper guide pin bolts (1).

    Tighten

    Tighten the 2 bolts to 34 N.m (25 lb ft).

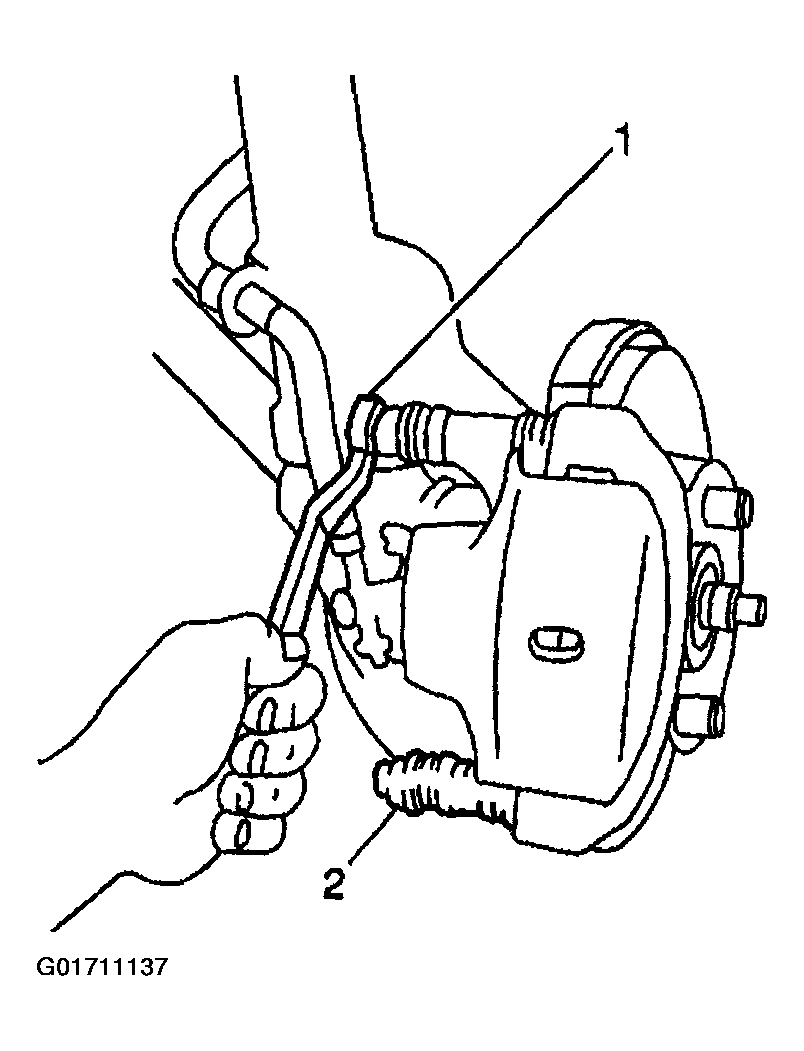

    Fig 2: Installing 2 Caliper Guide Pin Bolts
    G01711137Courtesy of GENERAL MOTORS CORP.
  11. Install the ABS wheel speed sensor (1) and the bolt (2) to the knuckle.

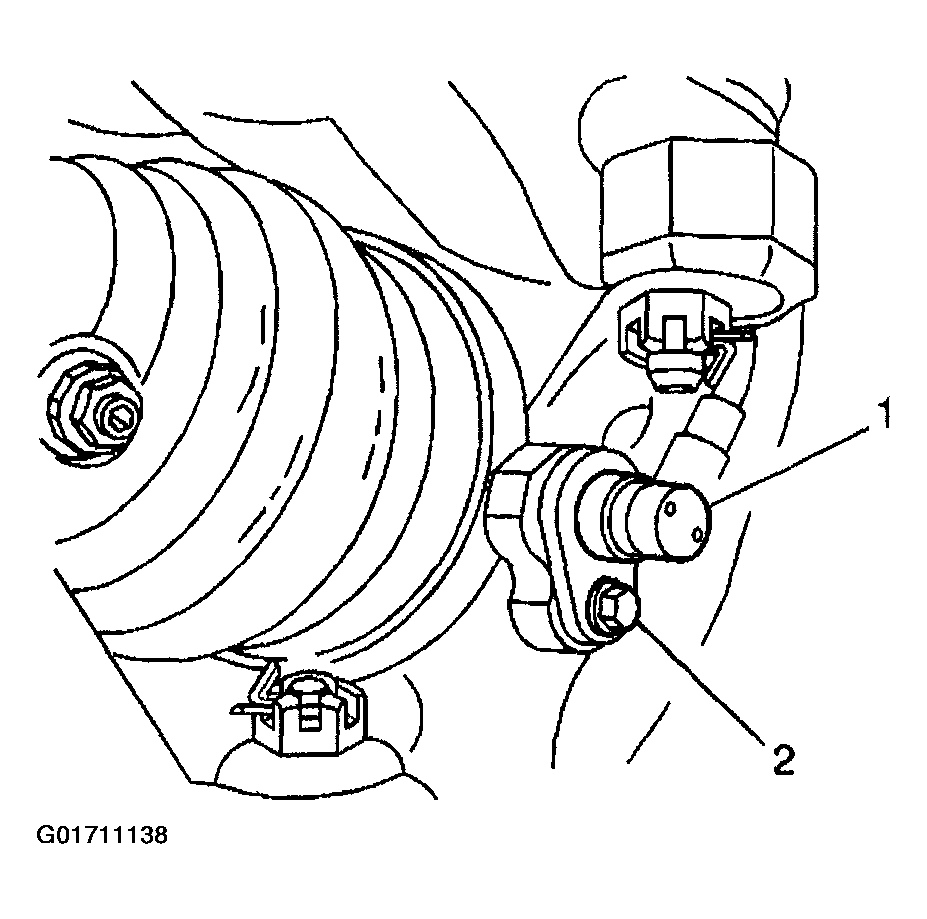

    Fig 3: Installing ABS Wheel Speed Sensor And Bolt To Knuckle
    G01711138Courtesy of GENERAL MOTORS CORP.

    Tighten

    Tighten the bolt to 7.8 N.m (69 lb in).

  12. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  13. Lower the vehicle.
