Installation Procedure

  1. Gently install the IP cluster trim plate (2) by pressing into place until fully seated. Secure the trim plate with the 2 screws.
  2. Return the steering column to the upright position.

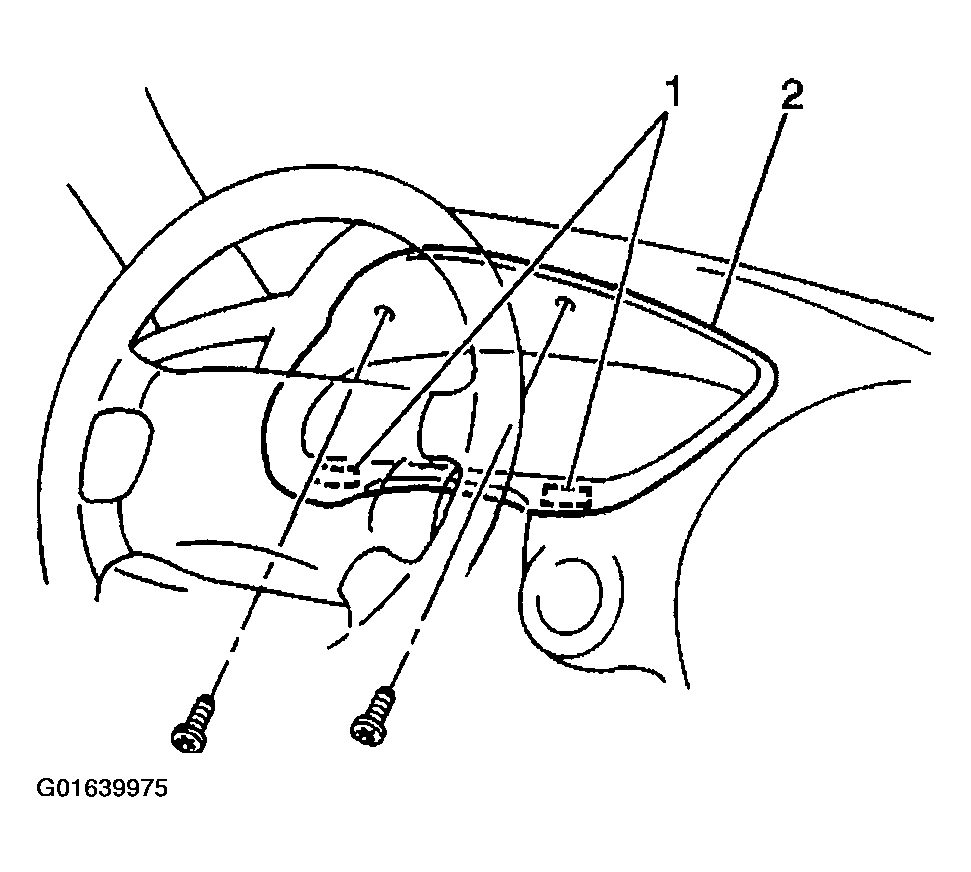

    Fig 1: Installing IP Cluster Trim Plate
    G01639975Courtesy of GENERAL MOTORS CORP.
