Removal Procedure

  1. Remove the left body hinge pillar trim panel. Refer to TRIM REPLACEMENT -- HINGE PILLAR .
  2. Remove the 2 bolts (3) which secure the IP drivers knee bolster trim (1). Position the trim as necessary to gain access to the IP drivers knee bolster reinforcement.

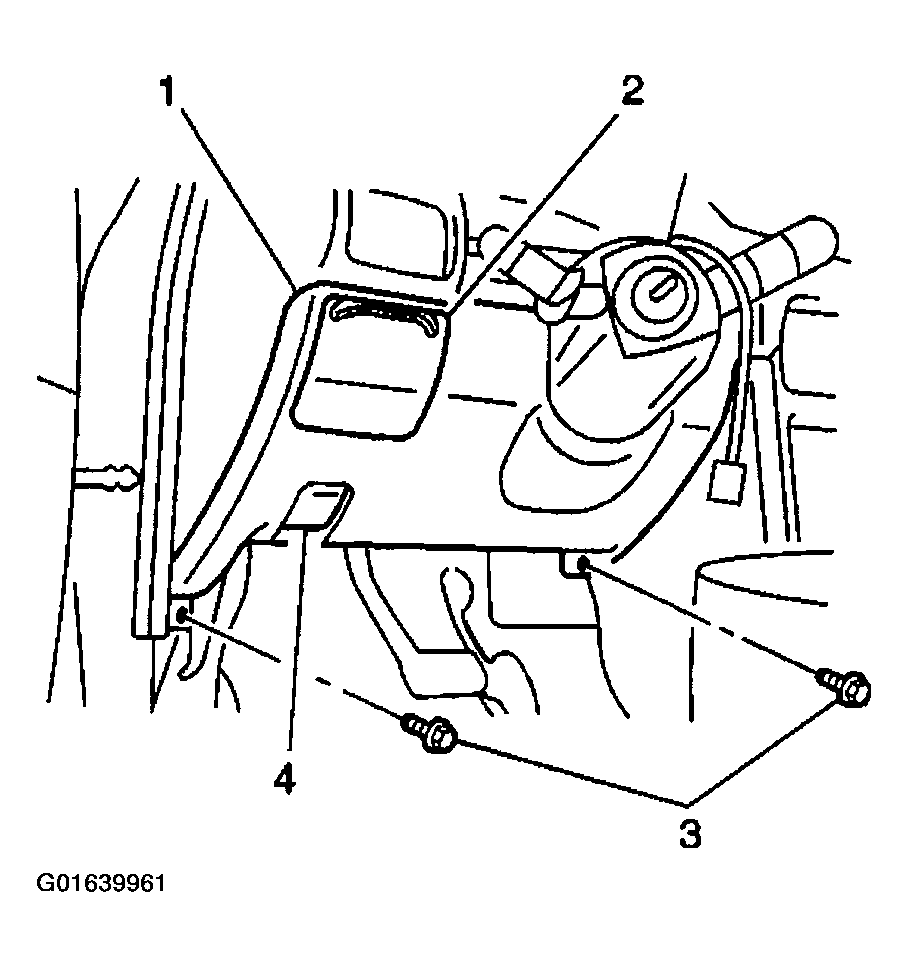

    Fig 1: Removing 2 Bolts Securing IP Drivers Knee Bolster Trim
    G01639961Courtesy of GENERAL MOTORS CORP.
  3. Remove the following components from the vehicle:
    • The 2 bolts which secure the reinforcement
    • The IP drivers knee bolster reinforcement (1)

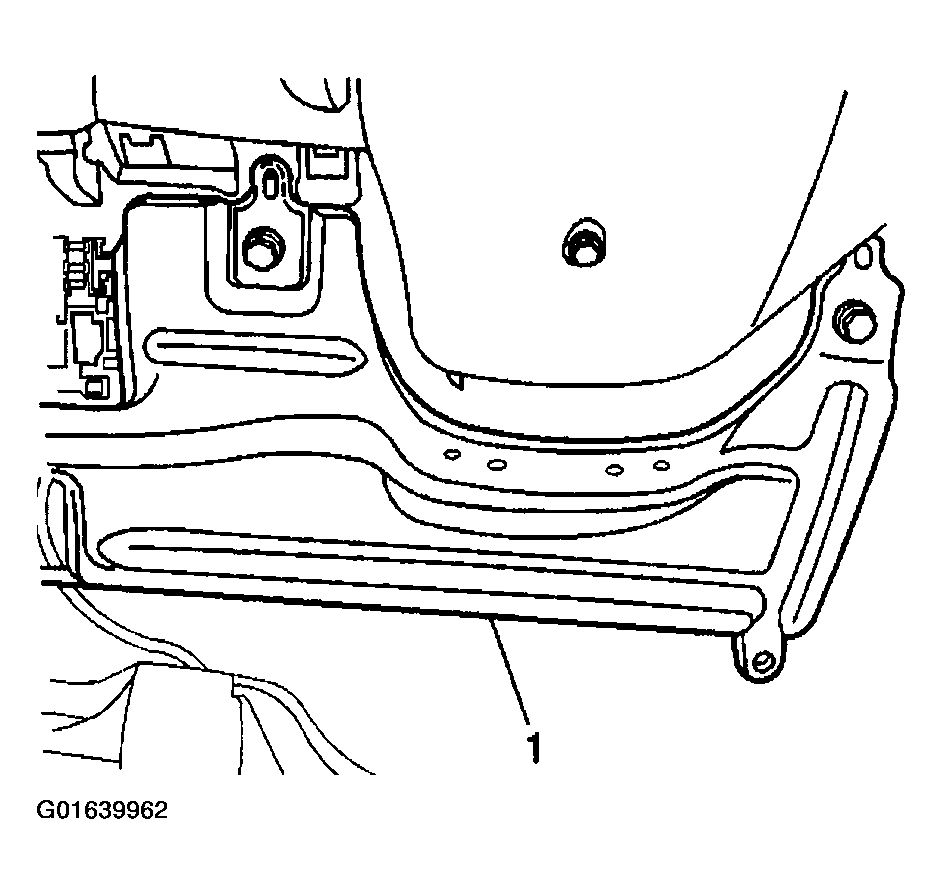

      Fig 2: Removing IP Drivers Knee Bolster Reinforcement
      G01639962Courtesy of GENERAL MOTORS CORP.
