Installation Procedure

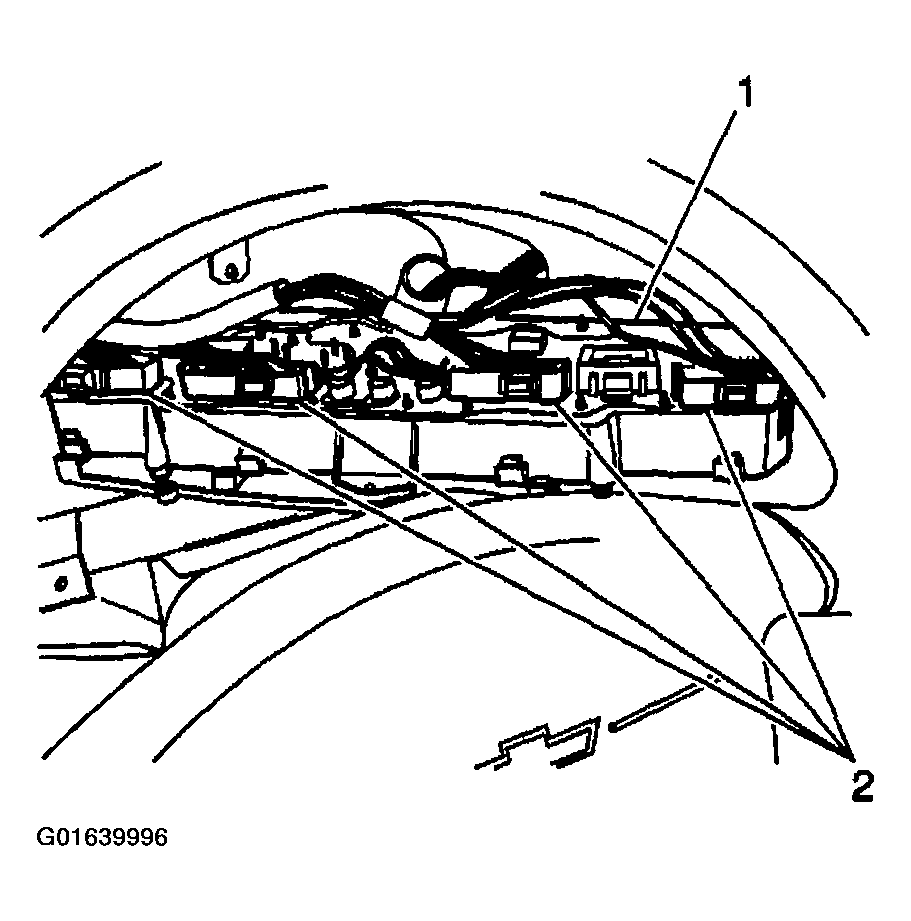

  1. Connect the 4 electrical connectors (2) to the instrument cluster assembly (1).
    Fig 1: Connecting 4 Electrical Connectors To Instrument Cluster Assembly
    G01639996Courtesy of GENERAL MOTORS CORP.

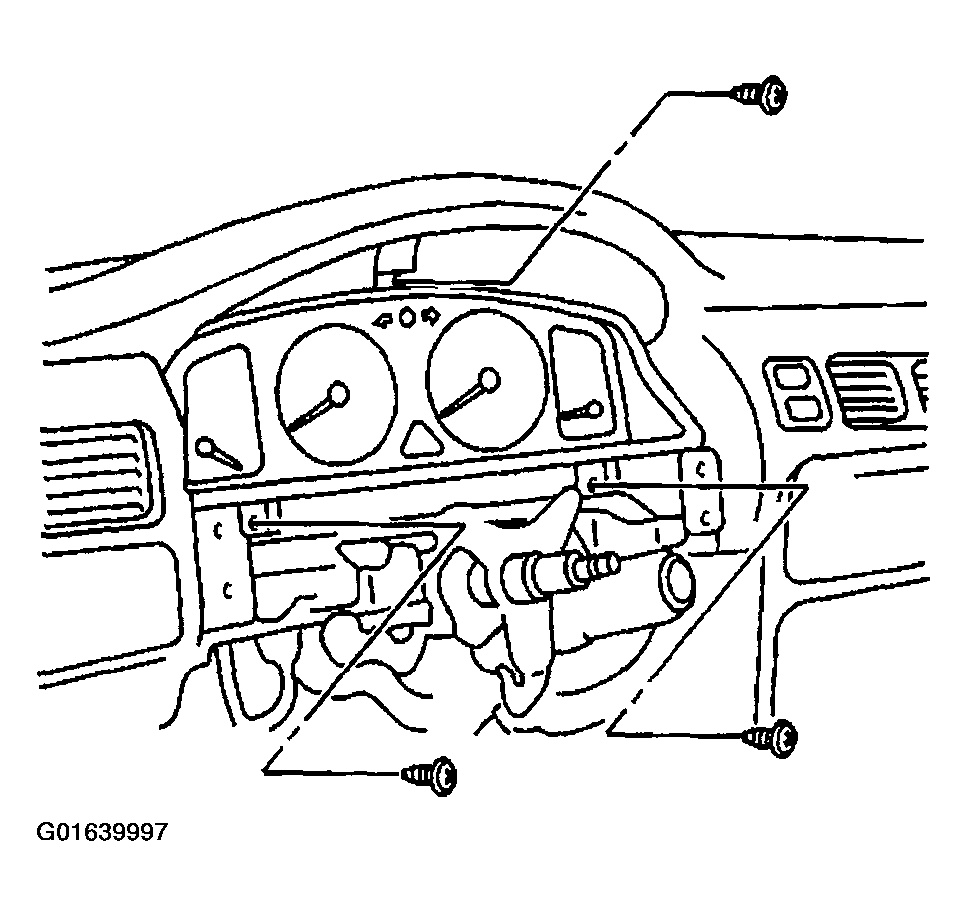

  2. Install the cluster assembly to the instrument panel assembly. Secure the assembly with the 3 screws.
  3. Install the IP cluster trim plate. Refer to TRIM PANEL REPLACEMENT - IP Cluster (Standard Column)  or TRIM PANEL REPLACEMENT - IP Cluster (Tilt Column) .
    Fig 2: Connecting 4 Electrical Connectors To Instrument Cluster Assembly
    G01639997Courtesy of GENERAL MOTORS CORP.
