Removal Procedure

  1. Remove the radio. Refer to RADIO REPLACEMENT .
  2. Remove the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - IP .
  3. Remove the I/P drivers knee bolster reinforcement. Refer to Knee Bolster Replacement .
  4. Remove the front floor rear console. Refer to CONSOLE REPLACEMENT - Rear Floor .
  5. Remove the manual transaxle control lever boot, if equipped. Refer to Console Shift Boot Replacement .

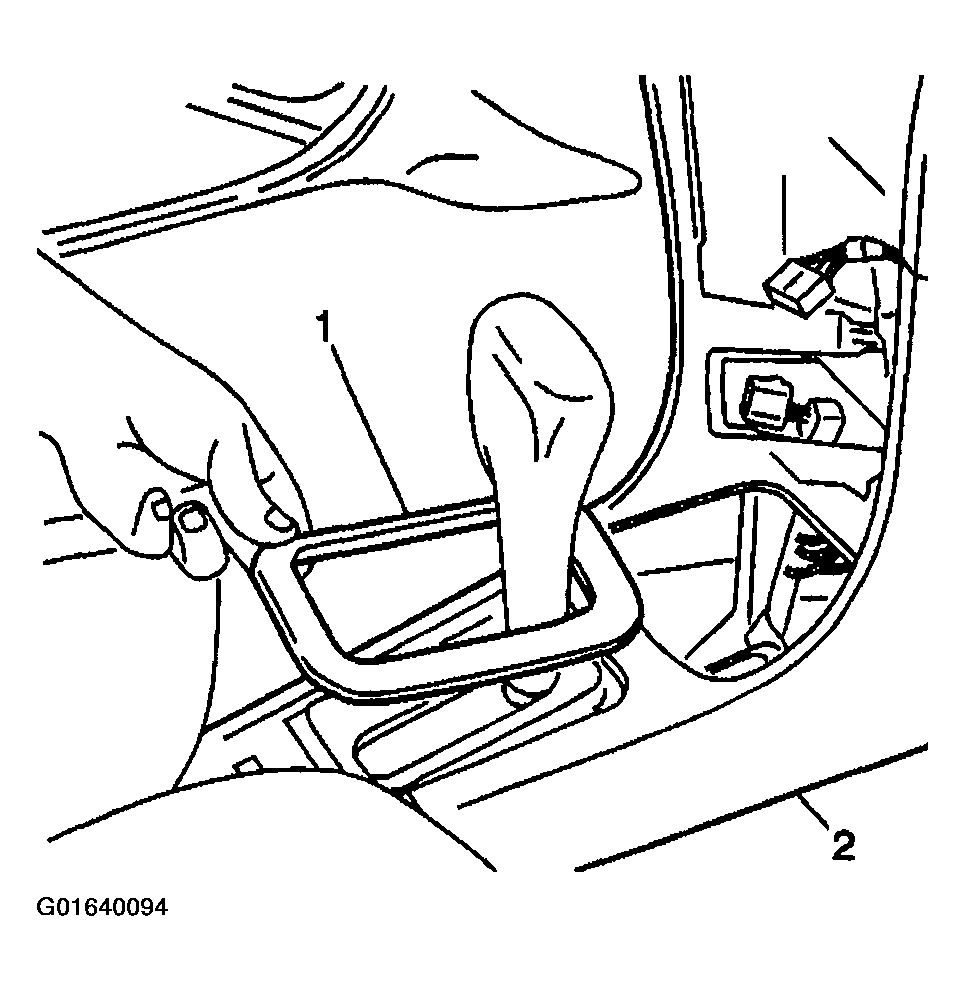

    Fig 1: Removing Manual Transaxle Control Lever Boot
    G01640094Courtesy of GENERAL MOTORS CORP.
  6. Remove the automatic transaxle control opening cover bezel, if equipped. Refer to TRIM PLATE REPLACEMENT - Console .
  7. Remove the 2 screws which secure the front floor front console (2) to the instrument panel assembly.
  8. Pull the front floor console (2) rearward and up.
  9. Remove the front floor console (2) from the vehicle.
