Chime Inoperative
Chime Inoperative

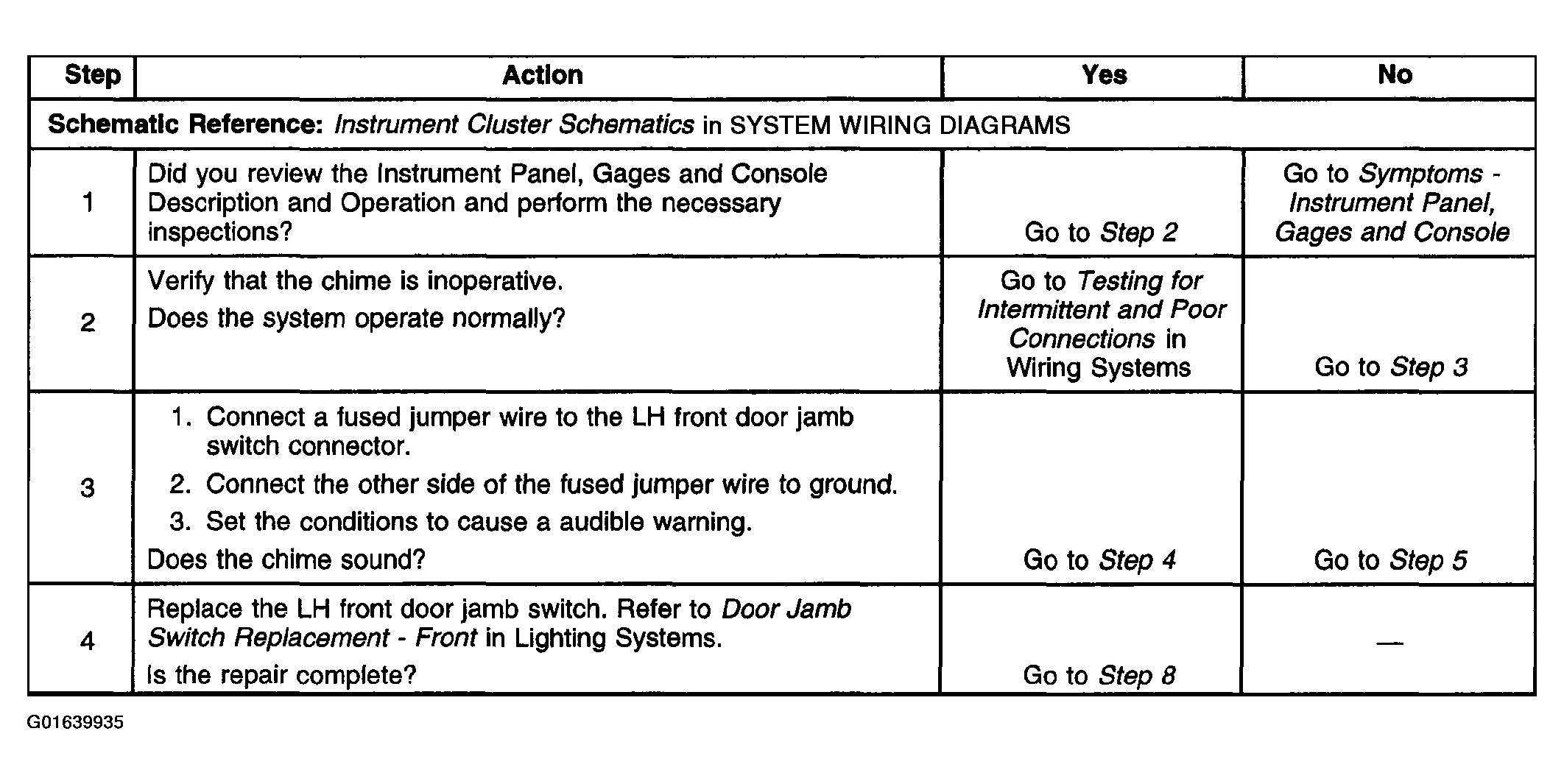

Fig 1: Chime Inoperative (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

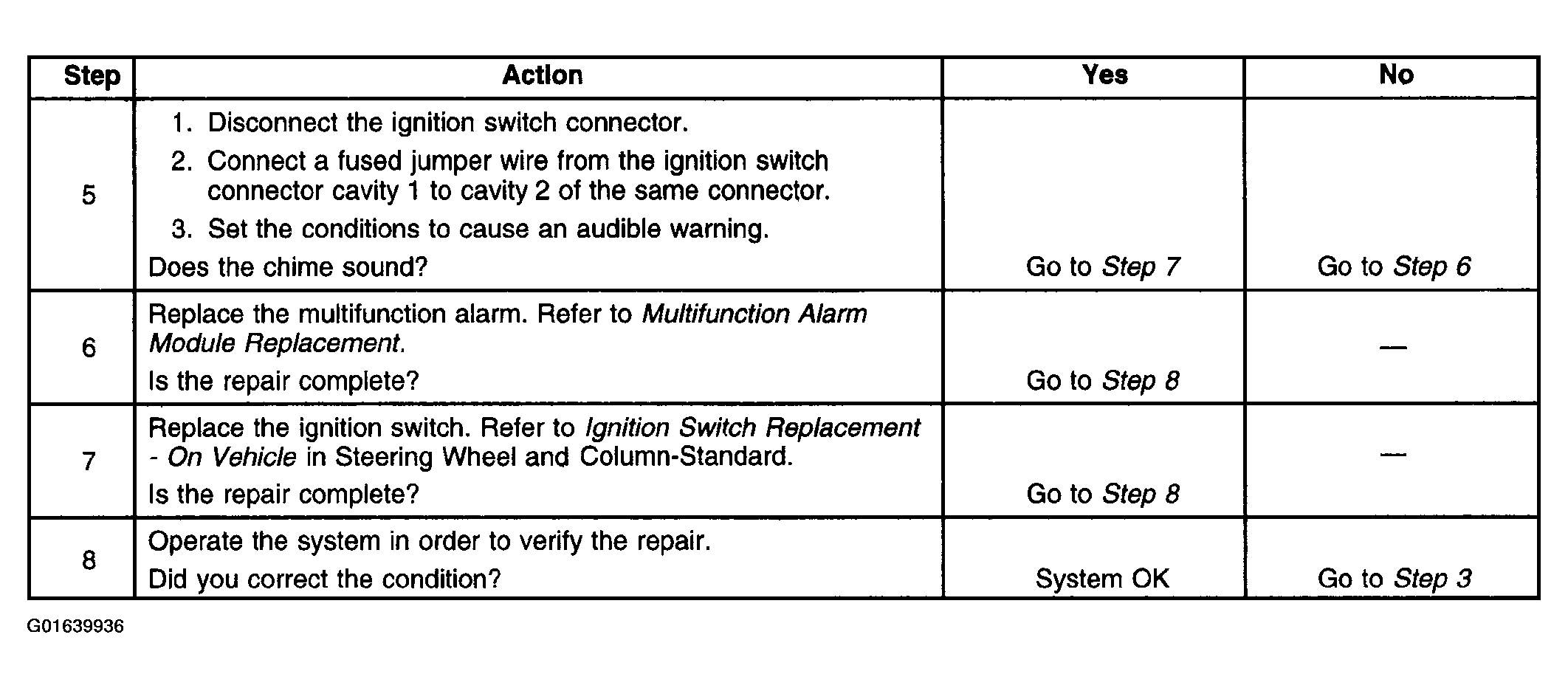

Fig 2: Chime Inoperative (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
