Instrument Panel, Gages, and Console Component Views

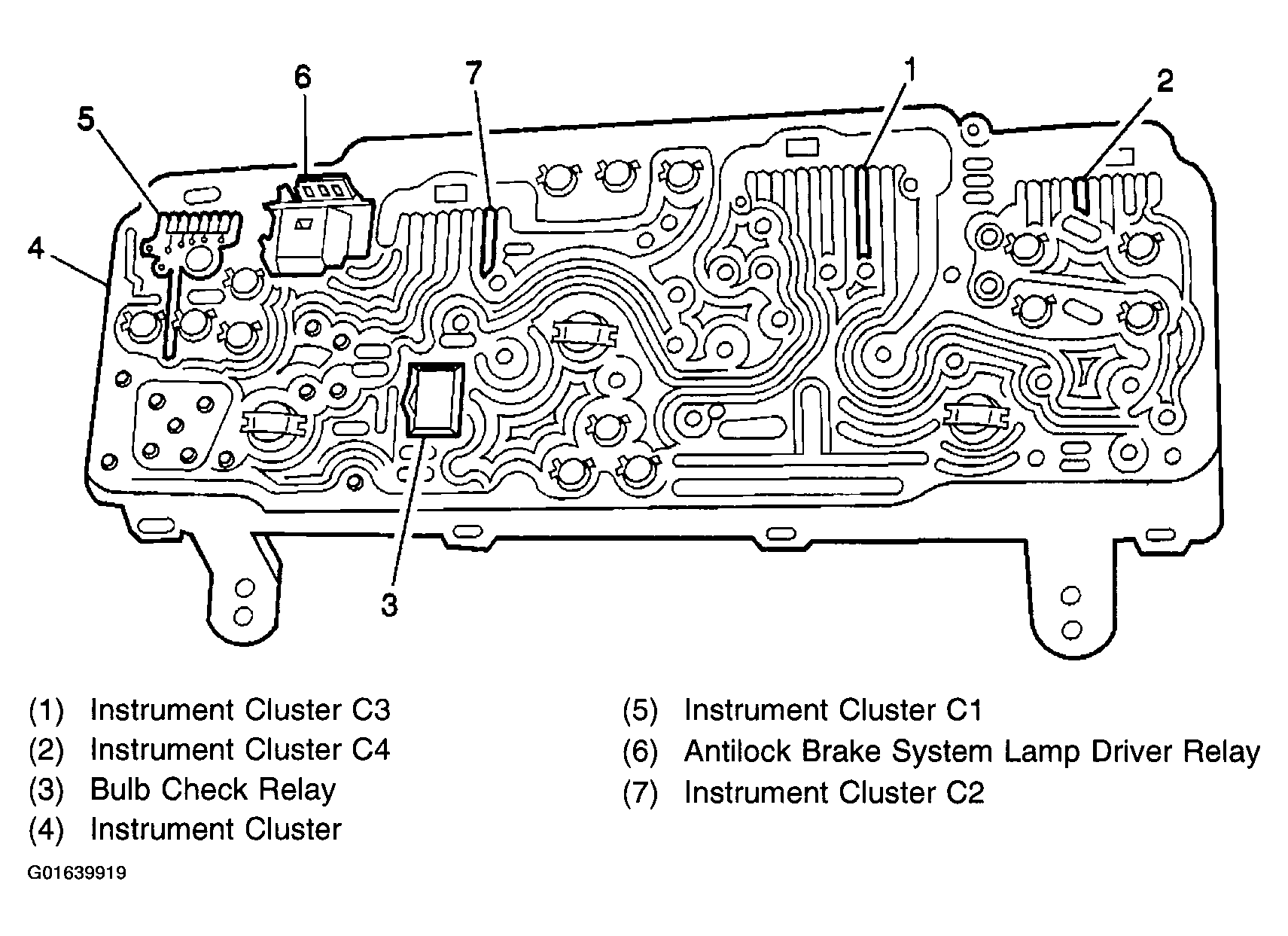

Fig 1: Instrument Cluster (Rear)

G01639919

Courtesy of GENERAL MOTORS CORP.
