Special Tools & Equipment

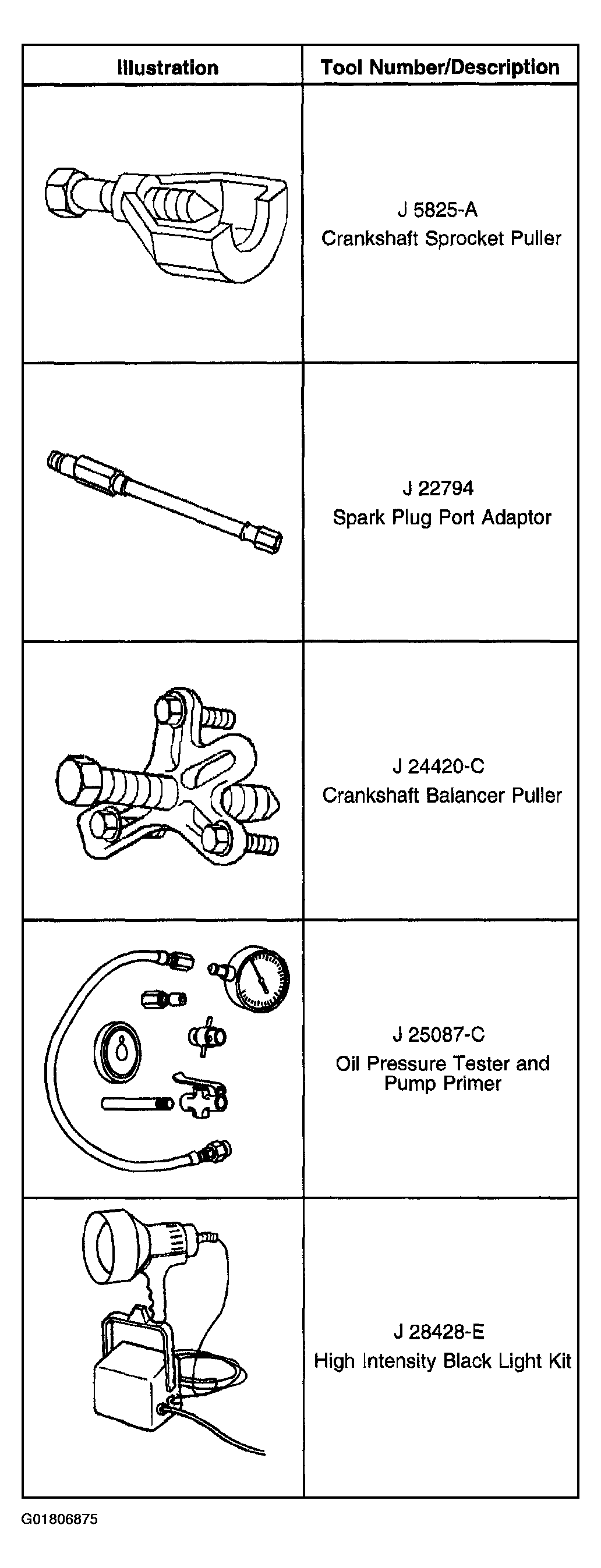

Fig 1: Special Tools & Equipment (1 Of 5)
G01806875Courtesy of GENERAL MOTORS CORP.

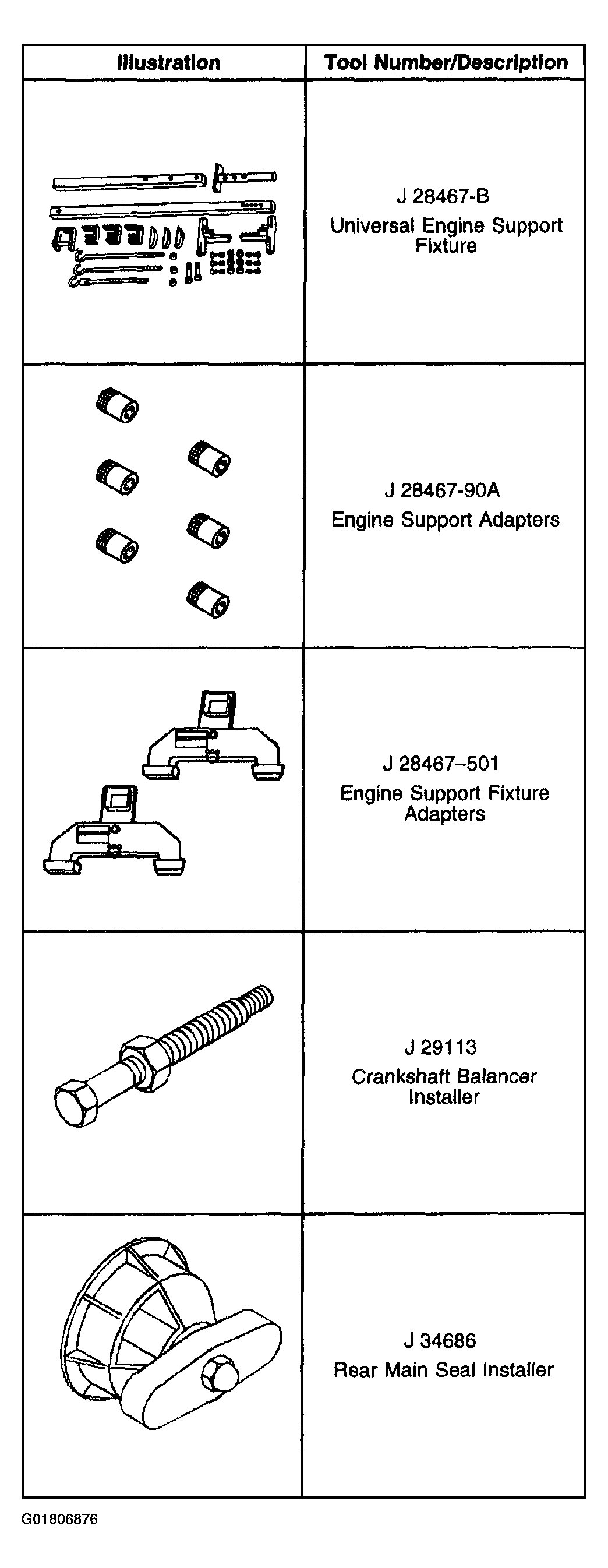

Fig 2: Special Tools & Equipment (2 Of 5)
G01806876Courtesy of GENERAL MOTORS CORP.

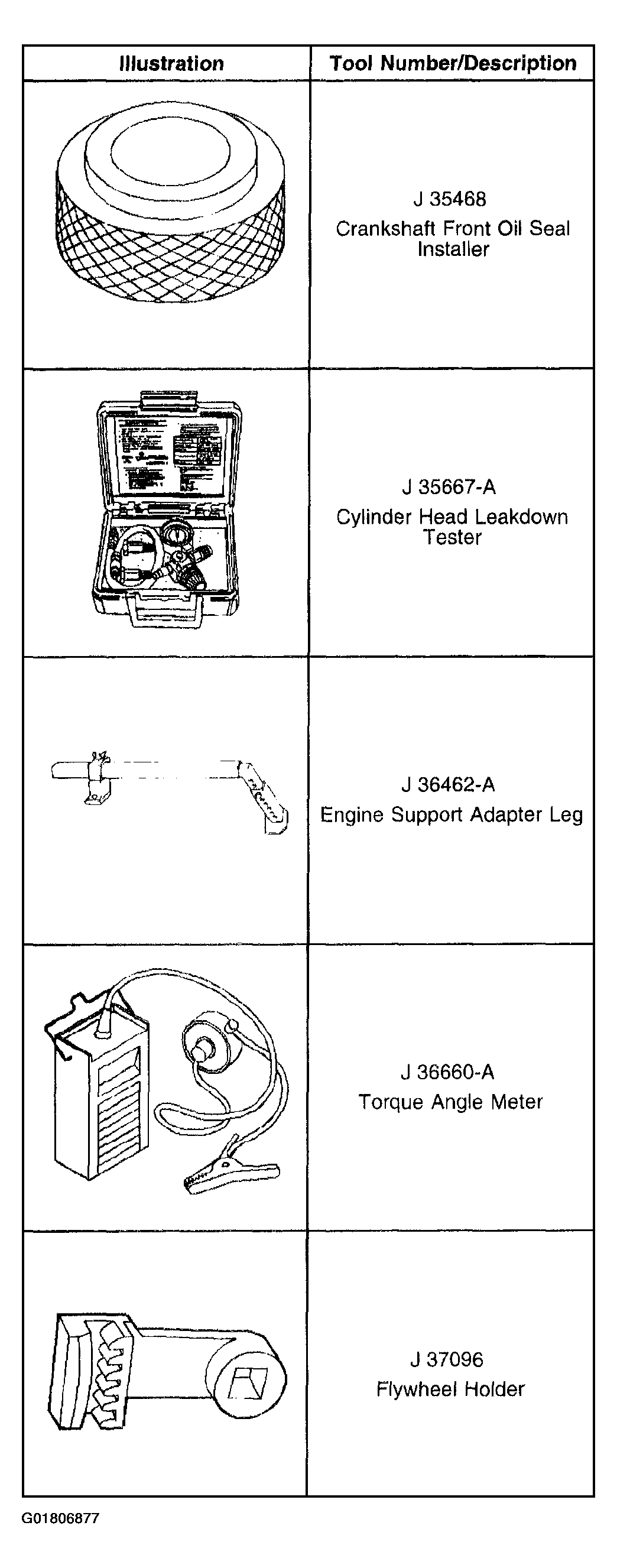

Fig 3: Special Tools & Equipment (3 Of 5)
G01806877Courtesy of GENERAL MOTORS CORP.

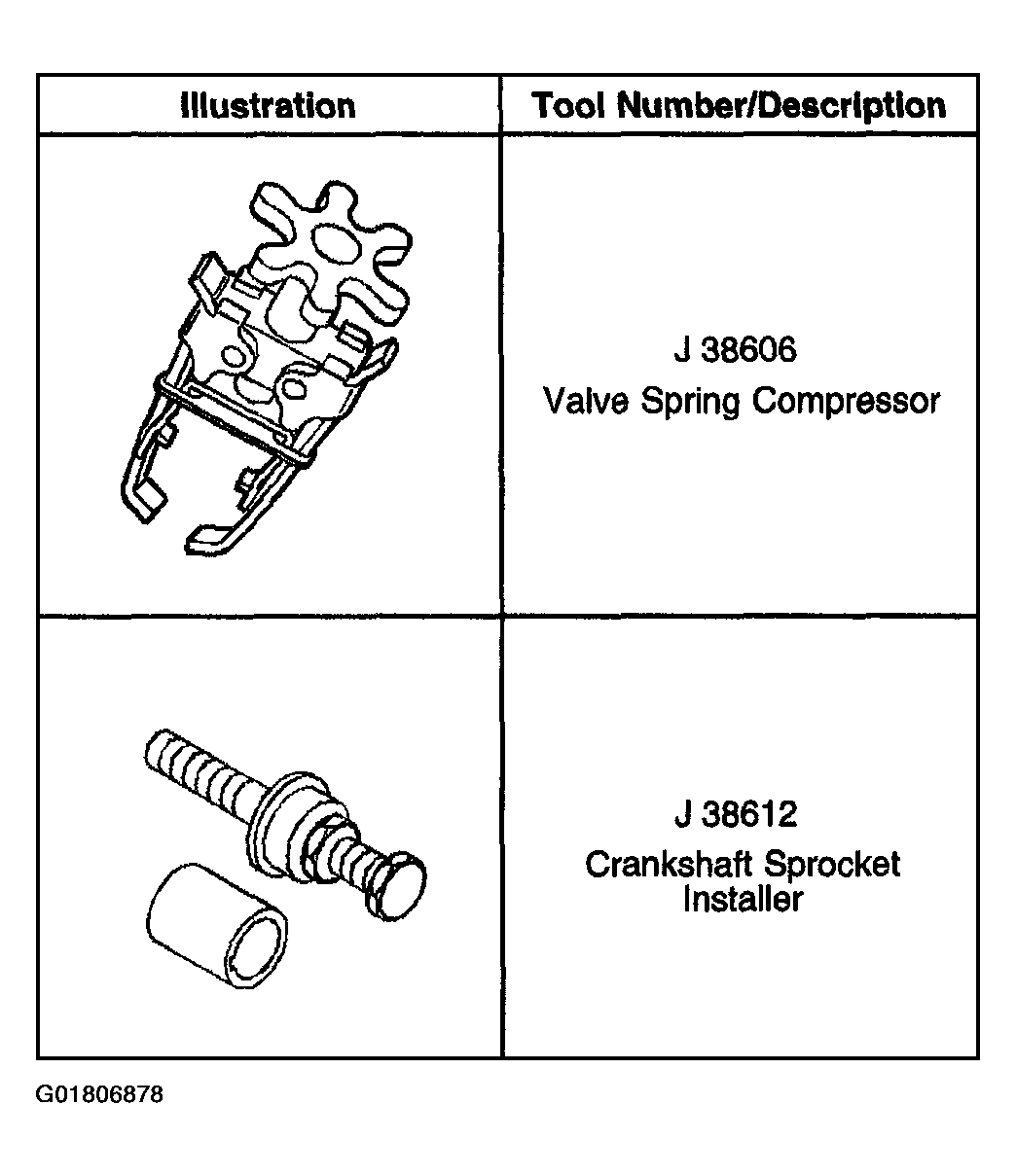

Fig 4: Special Tools & Equipment (4 Of 5)
G01806878Courtesy of GENERAL MOTORS CORP.

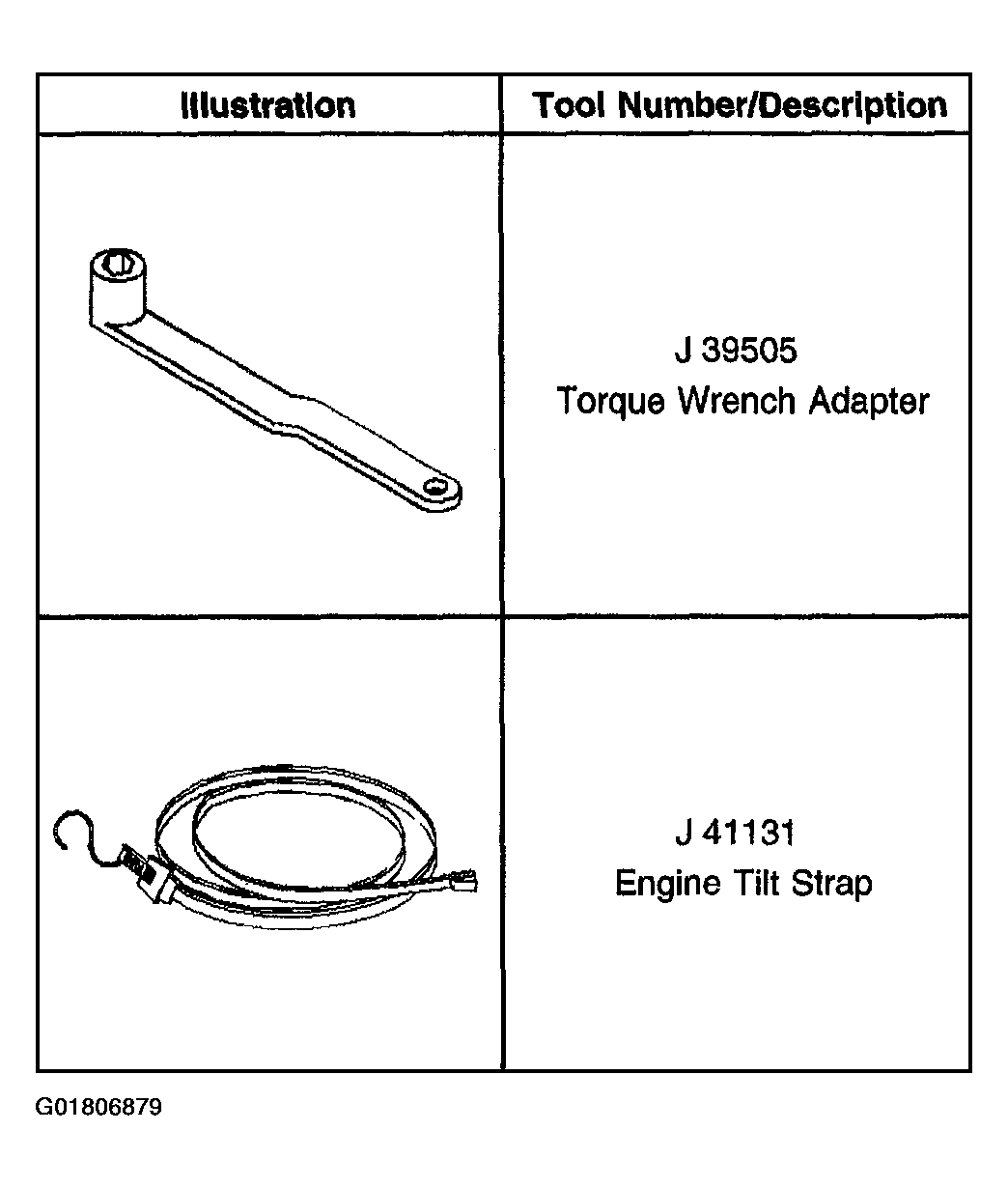

Fig 5: Special Tools & Equipment (5 Of 5)
G01806879Courtesy of GENERAL MOTORS CORP.
