Removal Procedure

  1. Disconnect the negative battery cable.
  2. Remove the drive belt. Refer to Drive Belt Replacement .
  3. Remove the generator.
  4. Remove the generator bracket.
  5. Remove the right spark plug wires.
  6. Disconnect the vacuum hoses from the EVAP purge valve.
  7. Remove the EVAP purge valve.
  8. Remove the ignition coil bracket with the coils.

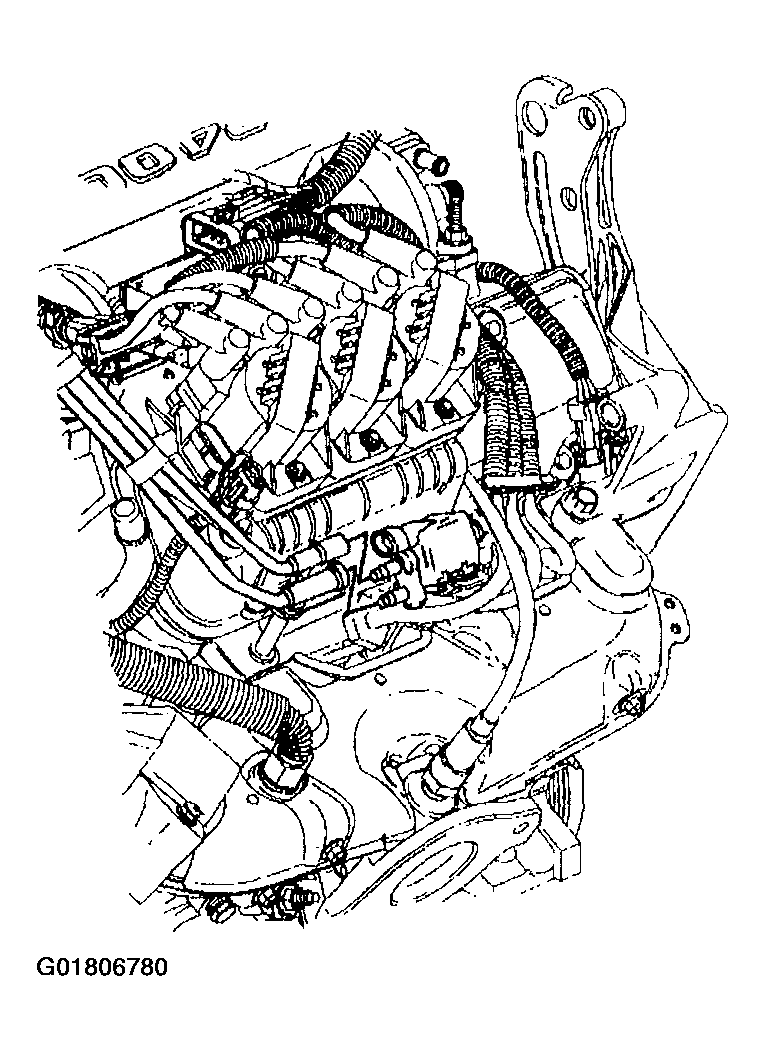

    9. Fig 1: Ignition Coil
    G01806780Courtesy of GENERAL MOTORS CORP.
  9. Remove the Ignition coil bracket studs.
  10. Remove the vacuum hose from the grommet in the right valve rocker arm cover.
  11. Remove the right valve rocker arm cover bolts.
  12. Remove the right valve rocker arm cover.

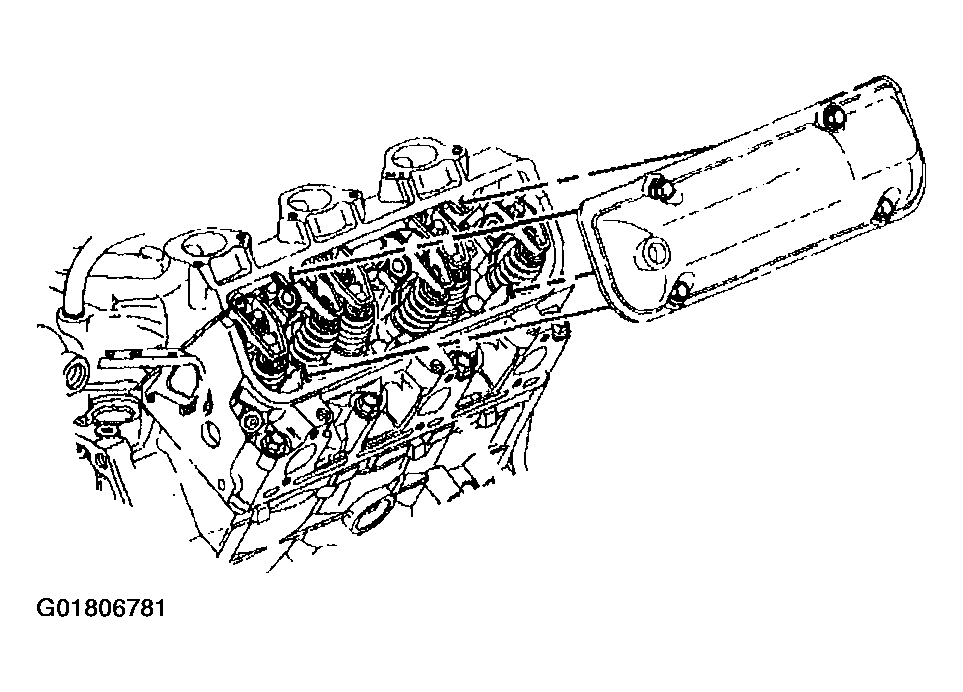

    13. Fig 2: Right Valve Rocker Arm Cover
    G01806781Courtesy of GENERAL MOTORS CORP.
  13. Remove the right valve rocker arm cover gasket.
  14. Clean the valve rocker arm cover gasket mating surfaces.
