Removal Procedure

  1. Drain the cooling system.
  2. Remove the left spark plug wires.
  3. Remove the right engine mount strut at the engine. Refer to Engine Mount Strut (Right) - Replacement .
  4. Remove the thermostat bypass hose and pipe.
  5. Remove the positive crankcase ventilation (PCV) valve from the left valve rocker arm cover.
  6. Remove the left valve rocker arm cover bolts.
  7. Remove the left valve rocker arm cover.

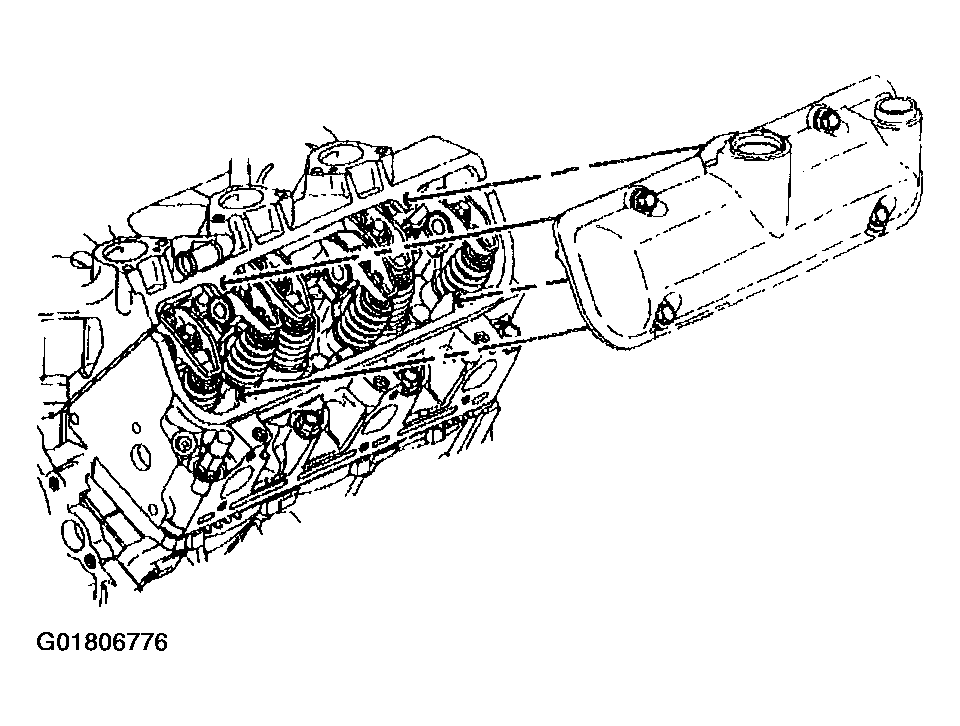

    8. Fig 1: Left Valve Rocker Arm Cover
    G01806776Courtesy of GENERAL MOTORS CORP.
  8. Remove the left valve rocker arm cover gasket.
  9. Clean the valve rocker arm cover.
  10. Clean the valve rocker arm cover gasket mating surfaces.
