Installation Procedure

  1. Install a new left valve rocker arm cover gasket to the valve rocker arm cover.

    Important:  Apply sealant GM P/N 12345739 or equivalent at the cylinder head to lower intake manifold joint.

  2. Apply sealant at the cylinder head to lower intake manifold joint at the rear of the lower intake manifold (1).

    Important:  Apply sealant GM P/N 12345739 or equivalent at the cylinder head to lower intake manifold joint.

  3. Apply sealant at the cylinder head to lower intake manifold joint at the front of the lower intake manifold (1).

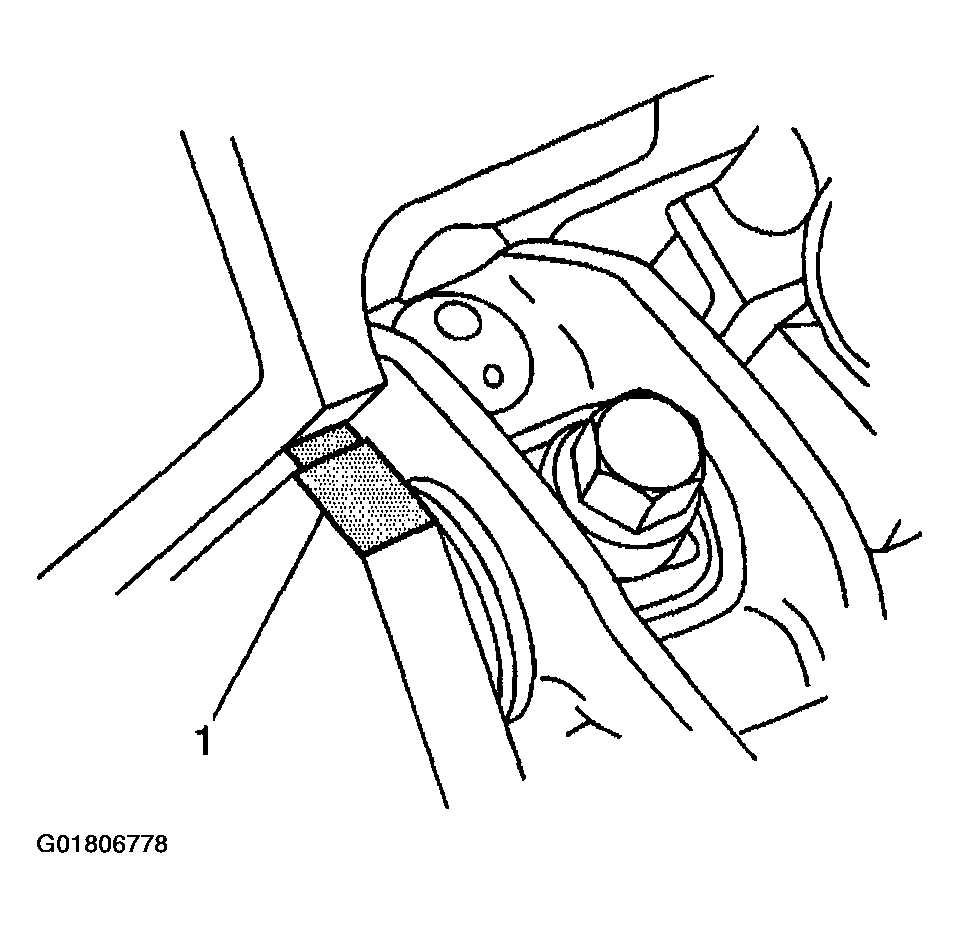

    Fig 1: Applying Sealant At Cylinder Head To Lower Intake Manifold Joint
    G01806778Courtesy of GENERAL MOTORS CORP.
  4. Install the left valve rocker arm cover.
  5. Install the valve rocker arm cover bolts. Tighten the bolts to 10 N.m (89 in lbs).
  6. Install the PCV valve to the left valve rocker arm cover.
  7. Install the thermostat bypass hose and pipe.
  8. Install the right engine mount strut.
  9. Install the left spark plug wires.
  10. Fill the cooling system.
