Removal Procedure

  1. Remove the valve rocker arm cover. Refer to Valve Rocker Arm Cover (Left) - Replacement  or Valve Rocker Arm Cover (Right) - Replacement  .
  2. Remove the rocker arm bolts.
  3. Remove the valve rocker arms and the pushrods.

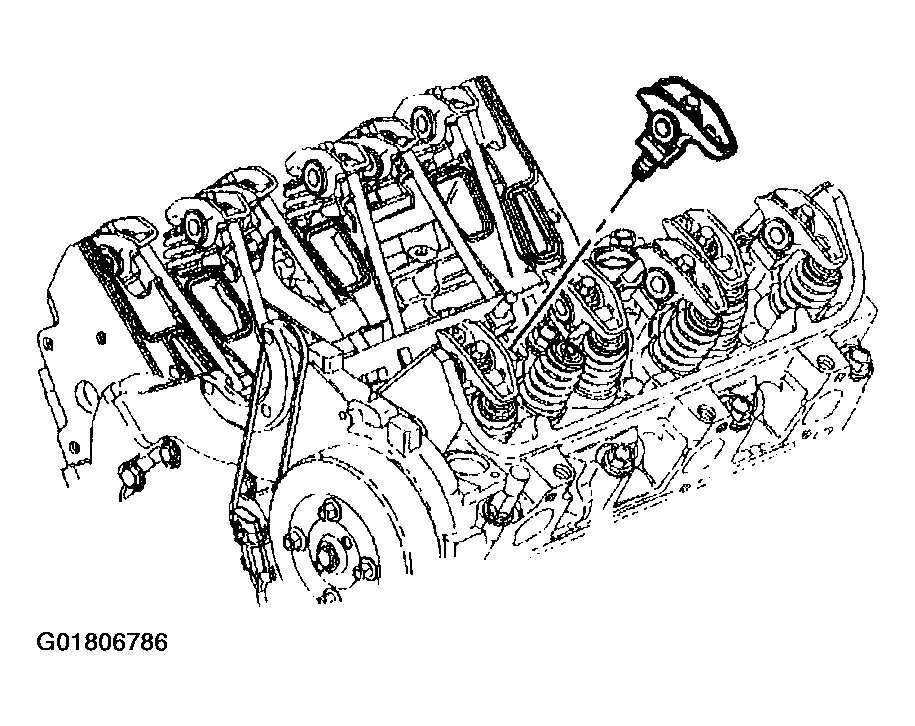

    Fig 1: Valve Rocker Arm
    G01806786Courtesy of GENERAL MOTORS CORP.
