Installation Procedure

  1. Coat the ends of the push rods using prelube GM P/N 1052365 or the equivalent.

    Important:  The intake valve push rods measure 144 mm (5.75 in) in length, (yellow).

  2. Install the push rods in their original location. The exhaust valve push rods measure 152.5 mm (6.0 in) in length, (green).

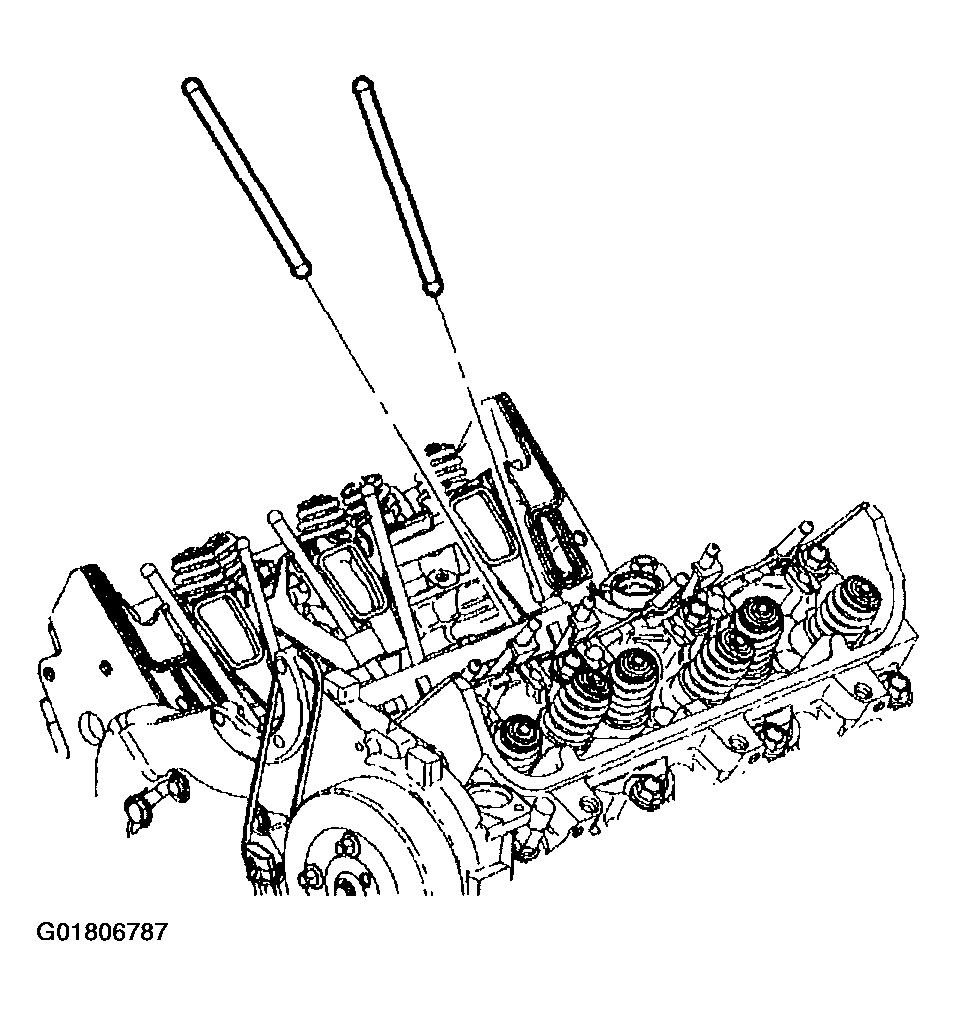

    Fig 1: Push Rods
    G01806787Courtesy of GENERAL MOTORS CORP.
  3. Coat the rocker arm friction surfaces using prelube GM P/N 1052365 or the equivalent.
  4. Install the valve rocker arm bolts. Tighten the bolts to 19 N.m (14 ft lbs). Use the J 36660-A  to rotate the bolts an additional 30 degrees.
  5. Install the valve rocker arm cover.
