Removal Procedure

Remove the engine front cover. Refer to Engine Front Cover - Replacement .
Rotate the crankshaft until the timing marks in the following locations are aligned:
- The camshaft alignment pin (4).
- The timing chain dampener (1) to the crankshaft sprocket (2).

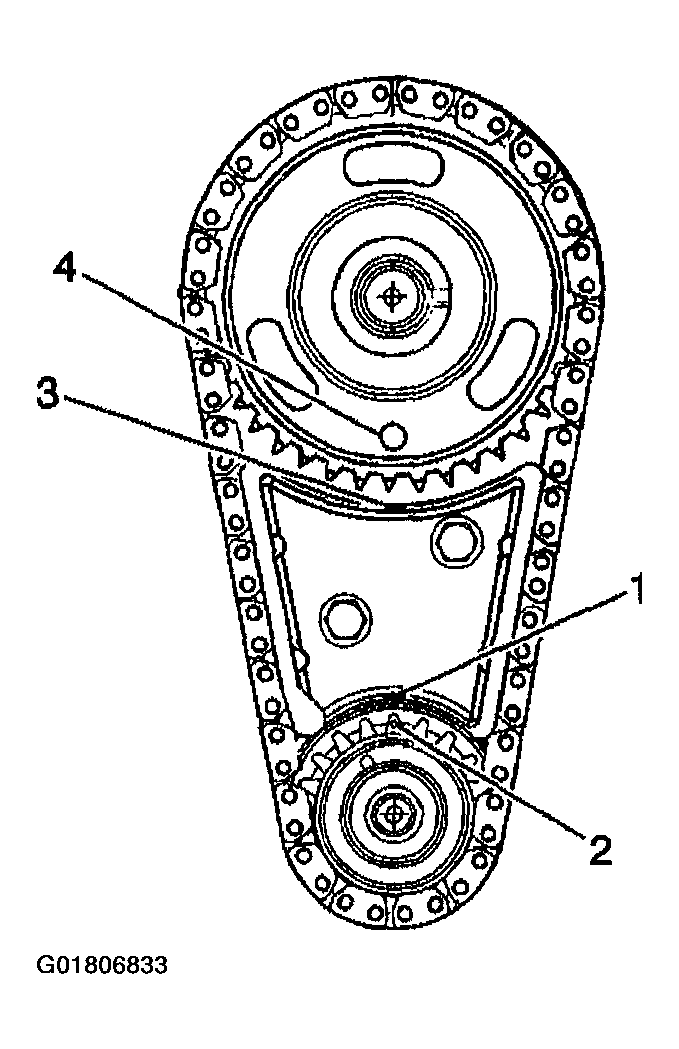

Fig 1: Aligning Timing Marks On Timing Chain
Courtesy of GENERAL MOTORS CORP.
Remove the camshaft sprocket bolt.

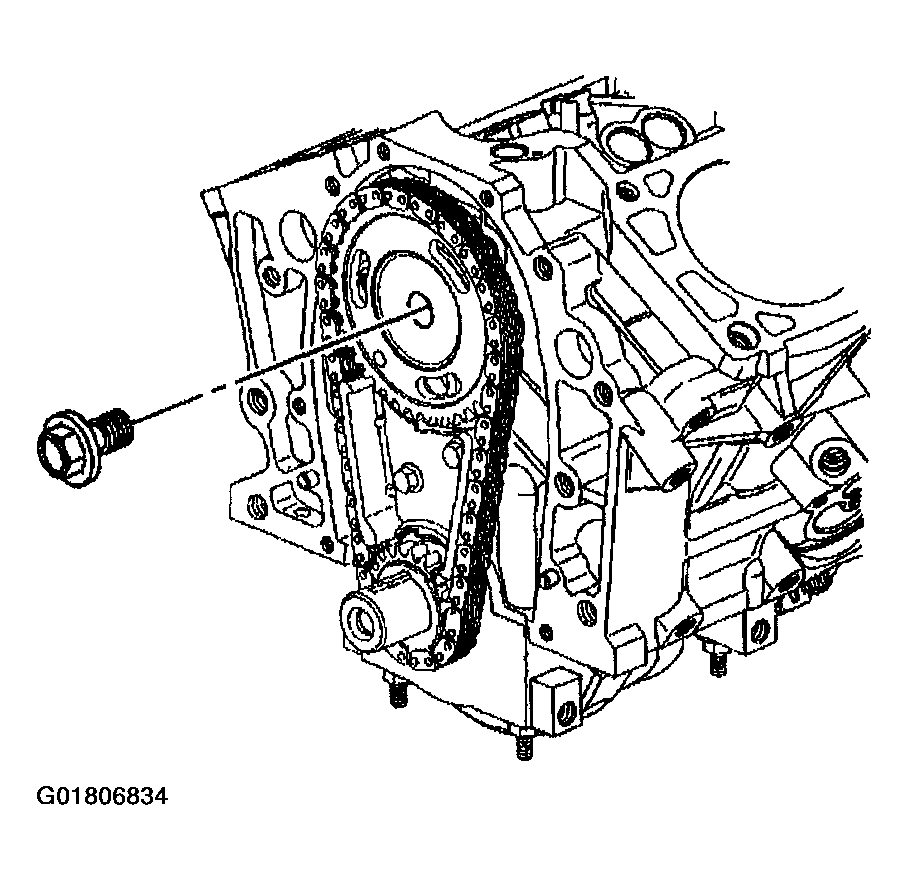

Fig 2: Camshaft Sprocket Bolt
Courtesy of GENERAL MOTORS CORP.
Remove the camshaft sprocket with the timing chain.

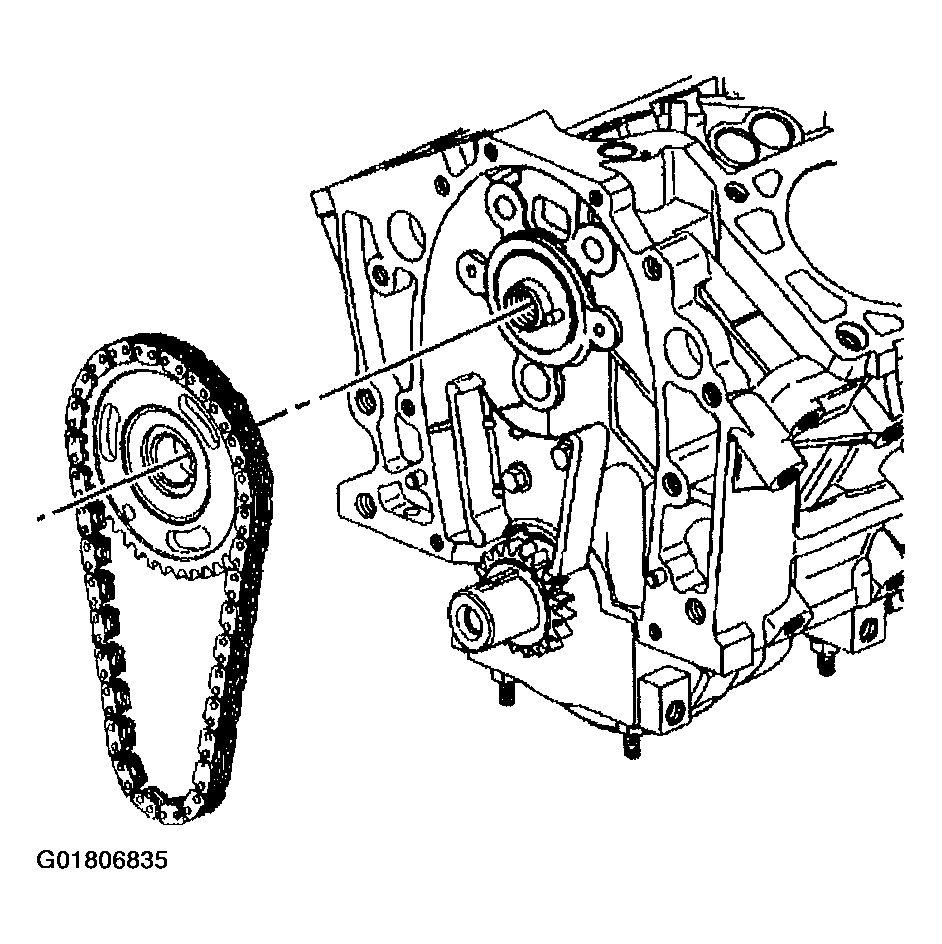

Fig 3: Camshaft Sprocket
Courtesy of GENERAL MOTORS CORP.
Use the J 5825-A in order to remove the crankshaft sprocket.

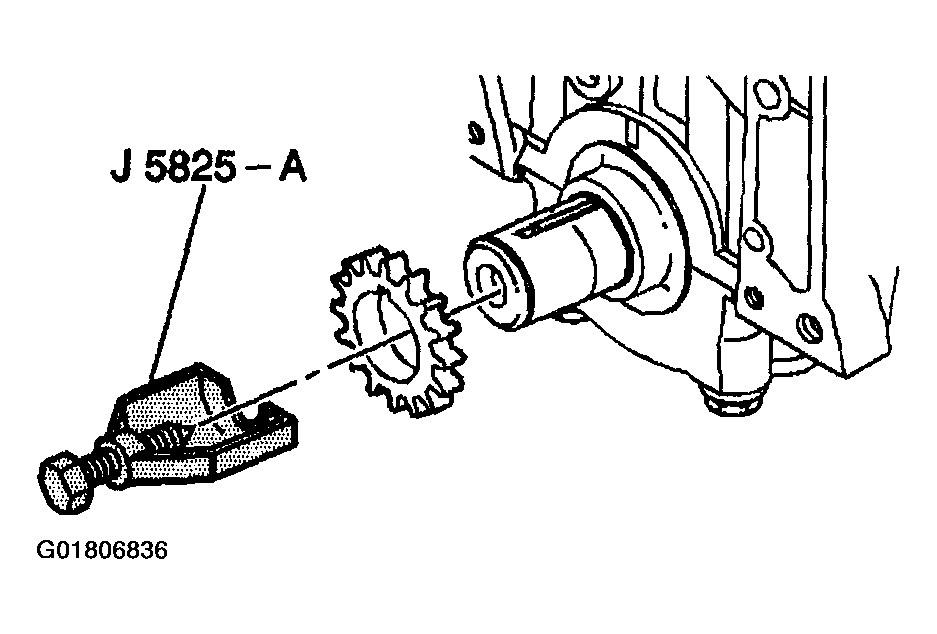

Fig 4: Removing Crankshaft Sprocket
Courtesy of GENERAL MOTORS CORP.
Remove the timing chain dampener bolts.
Remove the timing chain dampener.

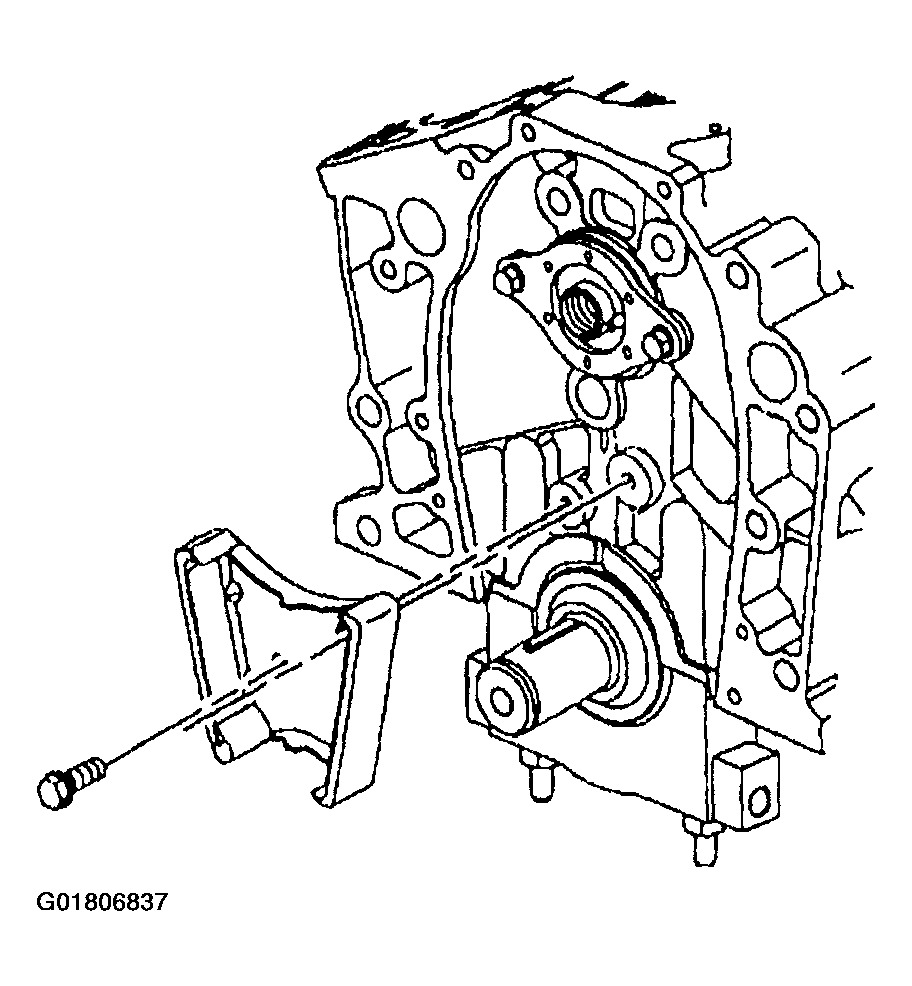

Fig 5: Timing Chain Dampener
Courtesy of GENERAL MOTORS CORP.
If necessary remove the camshaft thrust plate bolts.
Remove the camshaft thrust plate.

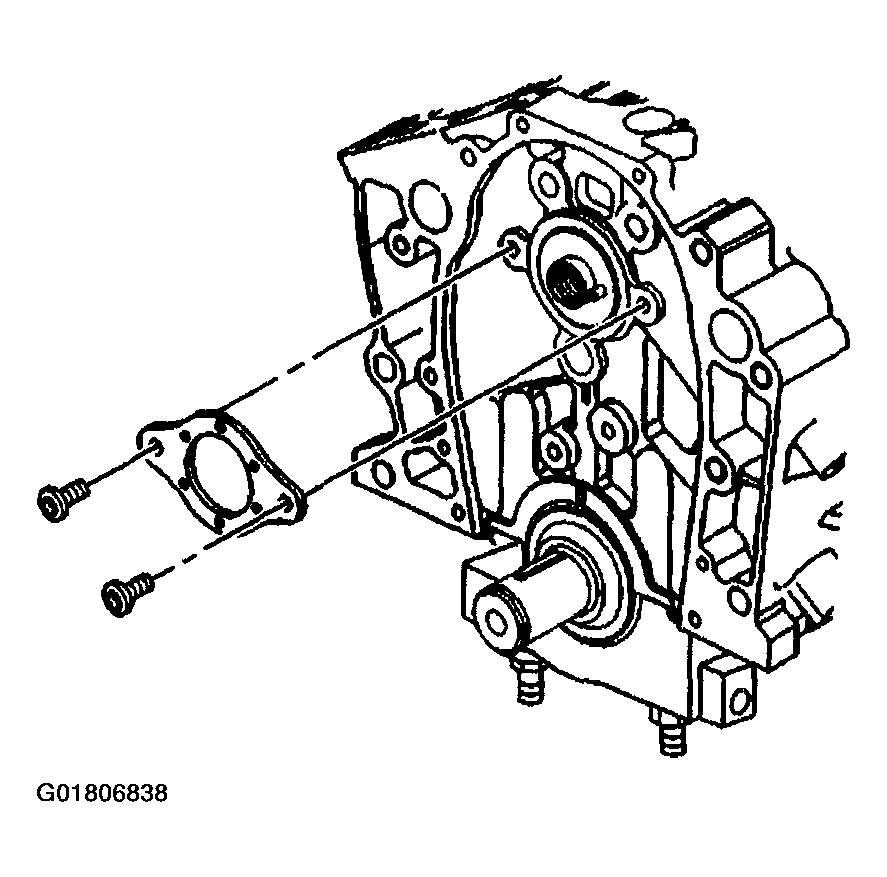

Fig 6: Camshaft Thrust Plate

Courtesy of GENERAL MOTORS CORP.

Clean and inspect the timing chain and gears. Refer to Engine Front Cover - Replacement .
