Removal Procedure

  1. Remove the vacuum hoses (1) from the fuel pressure regulator (3) and positive crankcase ventilation (PCV) valve (2).
  2. Remove the PCV valve (2).

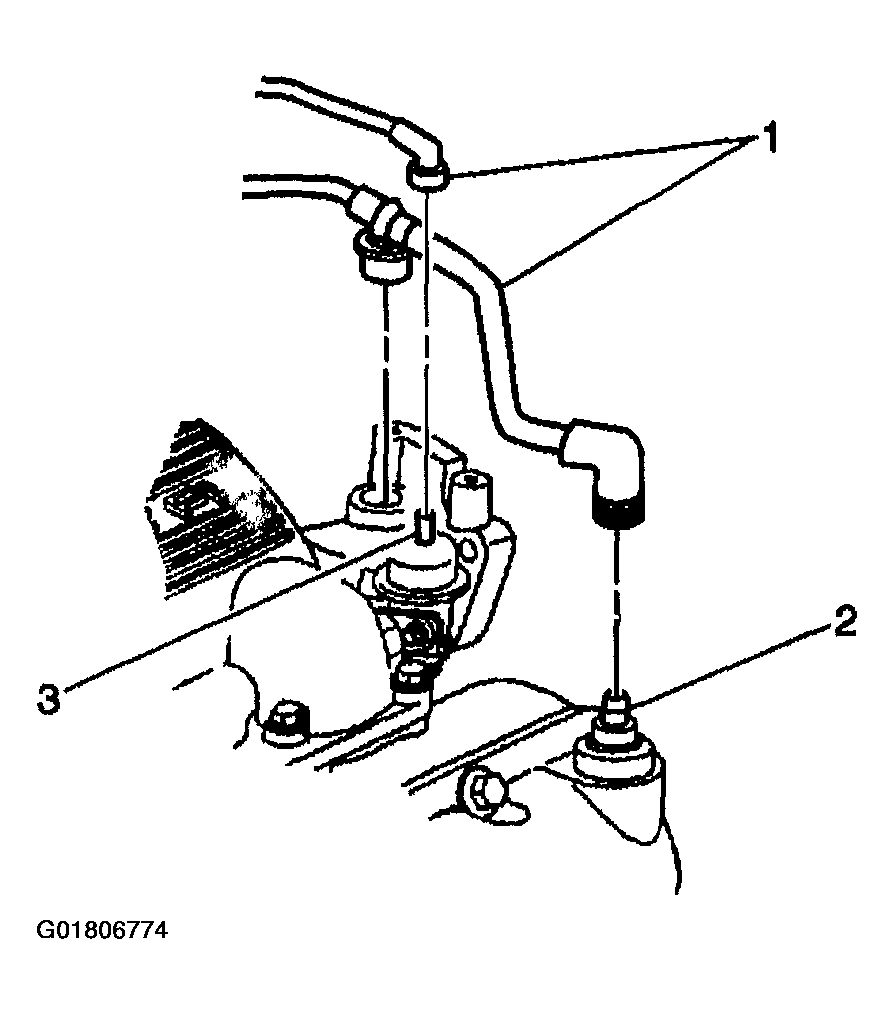

    Fig 1: PCV Valve & Hoses
    G01806774Courtesy of GENERAL MOTORS CORP.
