Removal Procedure

  1. Remove the upper intake manifold. Refer to Intake Manifold (Upper) - Replacement .
  2. Remove the fuel feed and the return pipe from the fuel injector rail.
  3. Remove the oil pump drive bolt.
  4. Remove the oil pump drive clamp.
  5. Remove the oil pump drive.

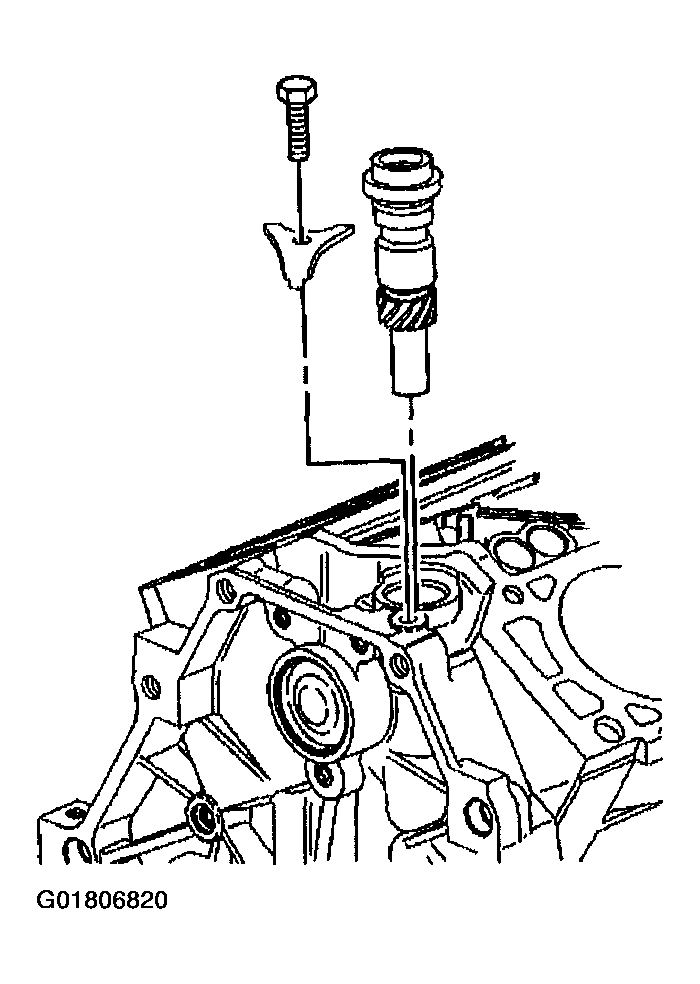

    6. Fig 1: Oil Pump Drive
    G01806820Courtesy of GENERAL MOTORS CORP.
  6. Remove the oil pump drive seal.
