Removal Procedure

  1. Remove the spark plug wire from the number 6 cylinder spark plug.
  2. Remove the oil level indicator.
  3. Remove the oil level indicator tube bracket bolt.
  4. Remove the oil level indicator tube.

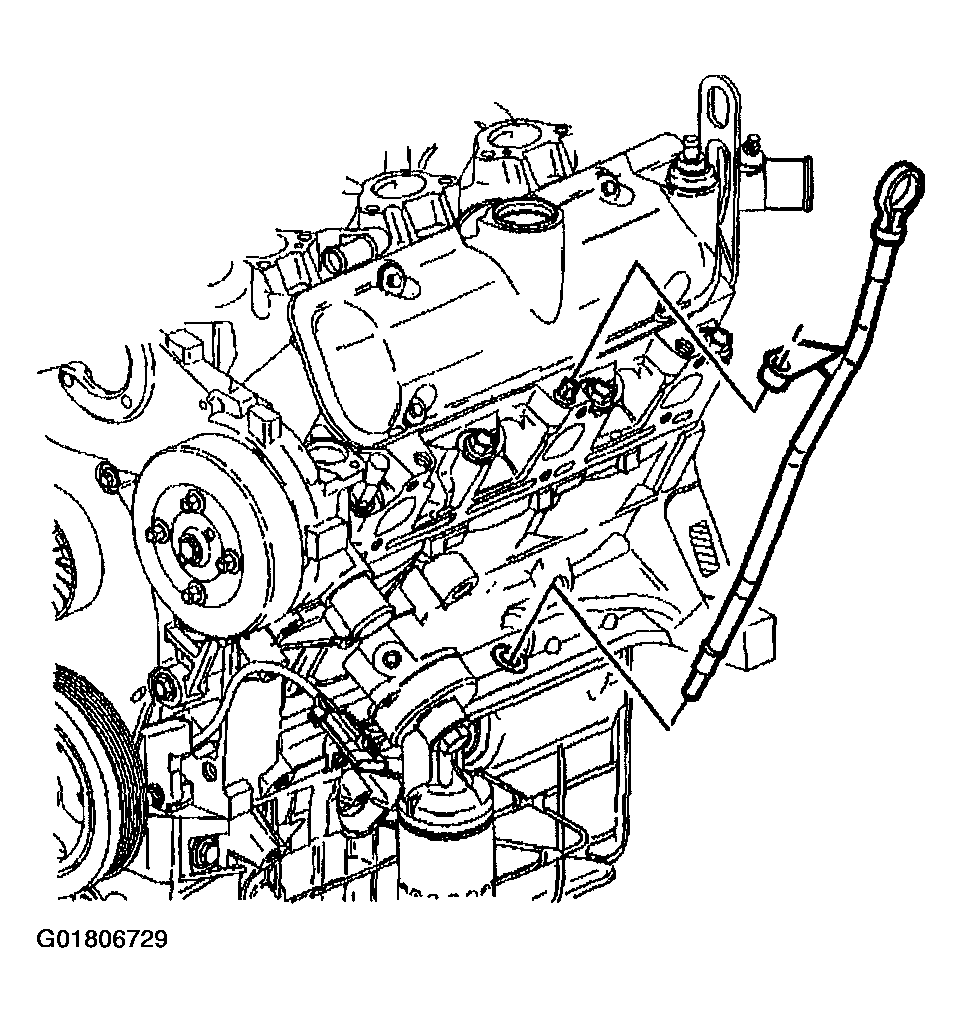

    Fig 1: Oil Level Indicator Tube
    G01806729Courtesy of GENERAL MOTORS CORP.
