Removal Procedure

  1. Raise and support the vehicle.
  2. Disconnect the engine oil pressure switch electrical connector.
  3. Remove the oil pressure switch.

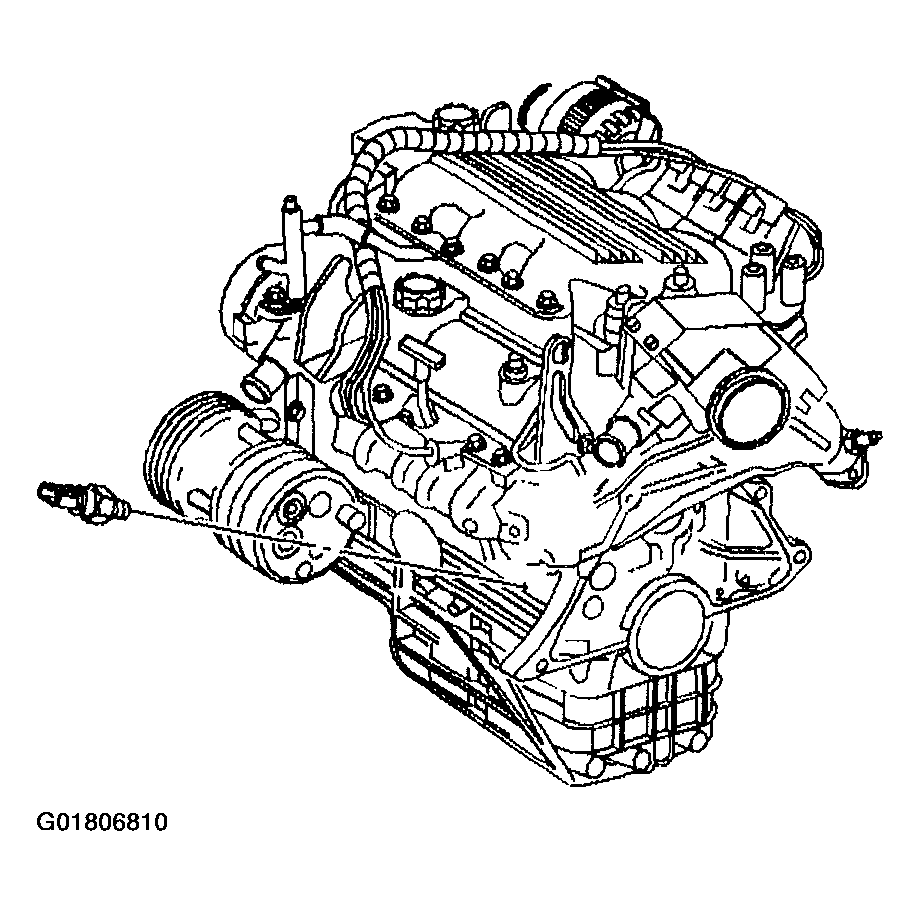

    Fig 1: Oil Pressure Switch
    G01806810Courtesy of GENERAL MOTORS CORP.
