Removal Procedure

  1. Raise and support the vehicle.
  2. Remove the engine oil drain plug in order to drain the engine oil.

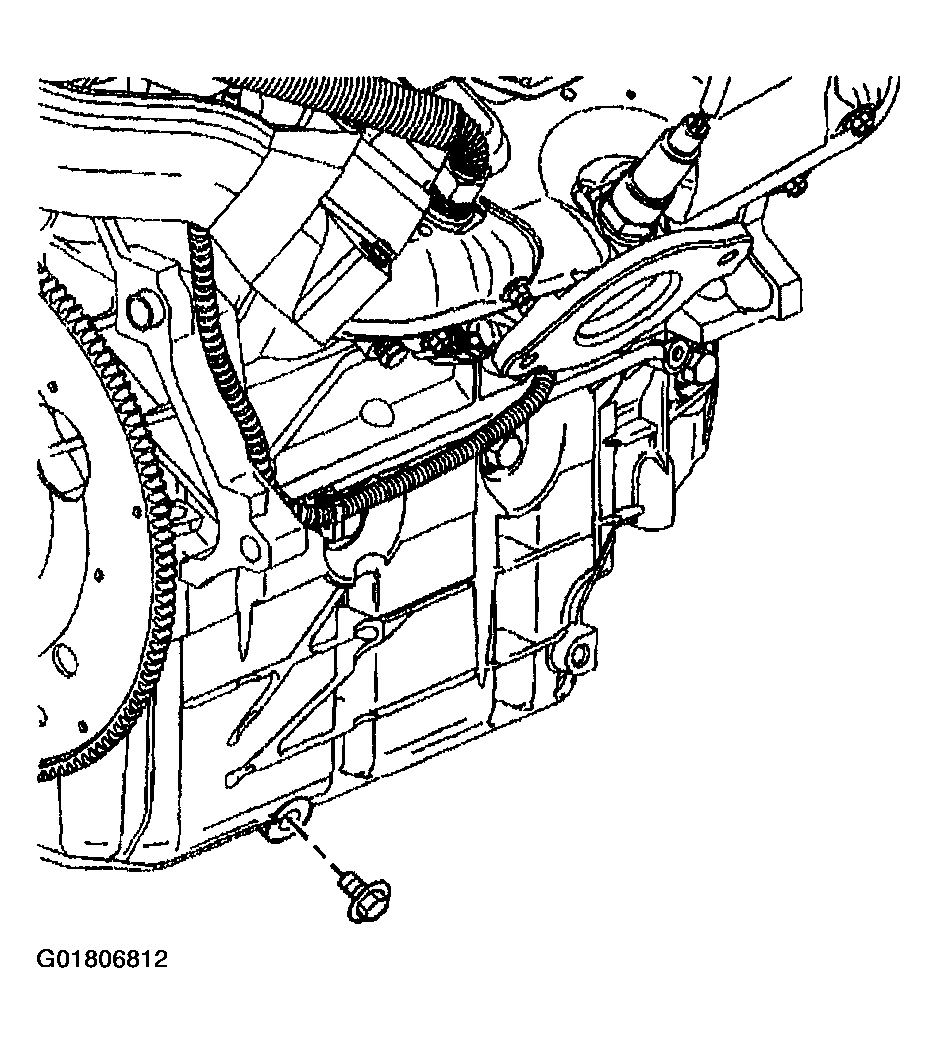

    Fig 1: Engine Oil Drain Plug
    G01806812Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the oil level sensor electrical connector.
  4. Remove the bolt from the oil level sensor.
  5. Remove the oil level sensor.

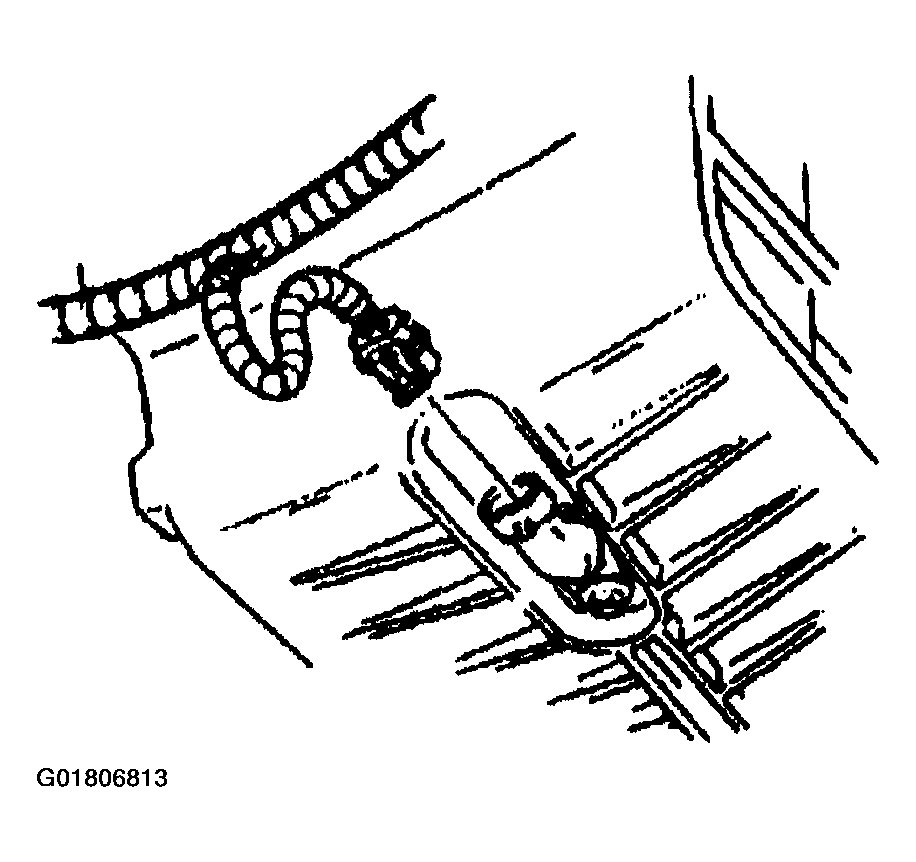

    Fig 2: Oil Level Sensor
    G01806813Courtesy of GENERAL MOTORS CORP.
