Removal Procedure

  1. Remove the engine mount strut from the engine mount strut bracket at the upper radiator support. Refer to Engine Mount Strut (Right) - Replacement  or Engine Mount Strut (Left) - Replacement  .

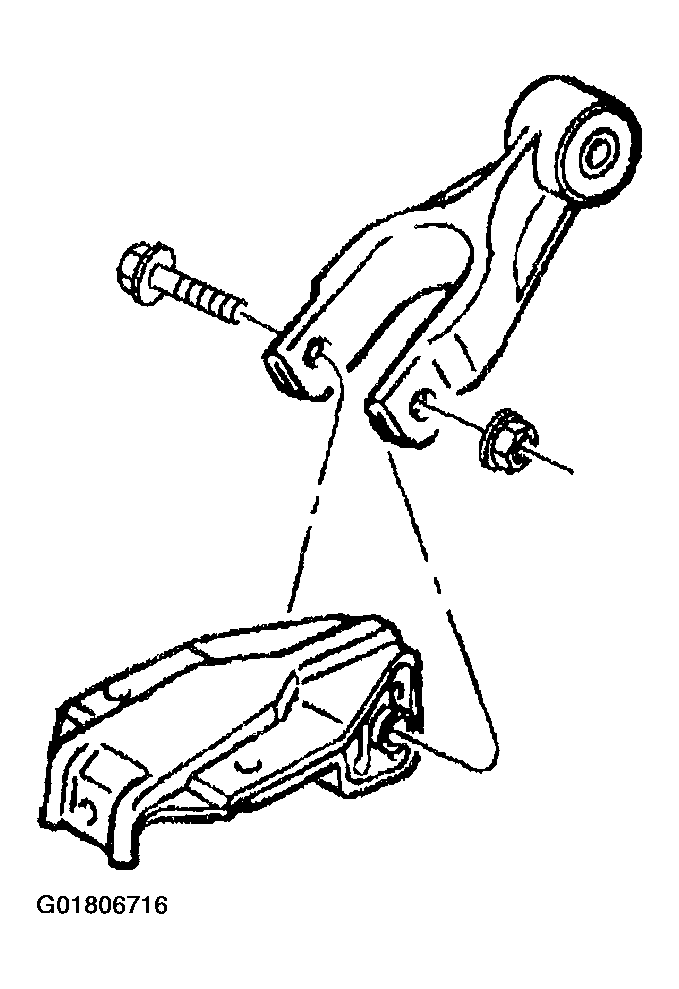

    Fig 1: Engine Mount Strut
    G01806716Courtesy of GENERAL MOTORS CORP.
  2. Remove the horizontal bolt from the engine mount strut bracket.
  3. Remove the vertical bolts from the engine mount strut bracket.
  4. Remove the engine mount strut bracket from the upper radiator support.

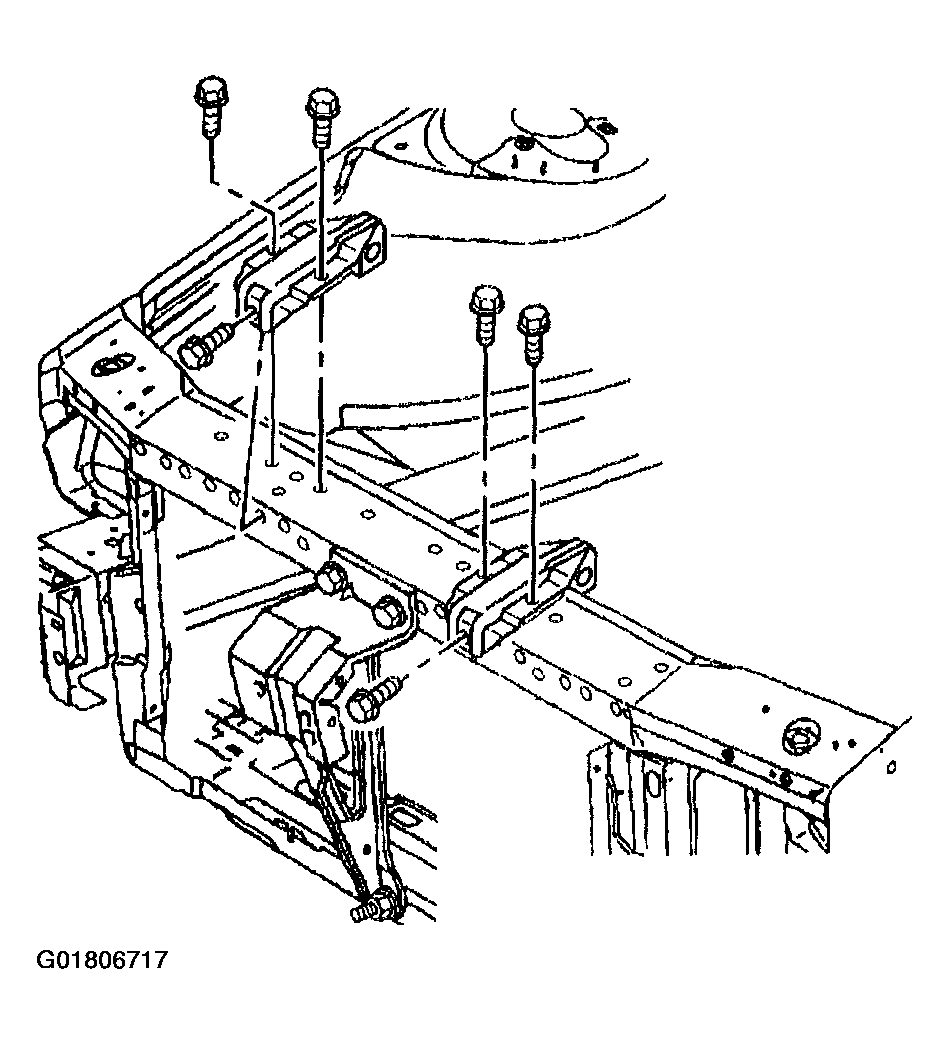

    Fig 2: Engine Mount Strut Bracket From Upper Radiator Support
    G01806717Courtesy of GENERAL MOTORS CORP.
