Removal Procedure

  1. Disconnect the battery ground (negative) cable.
  2. Remove the right engine mount strut from the right engine mount strut bracket. Refer to Engine Mount Strut (Right) - Replacement .

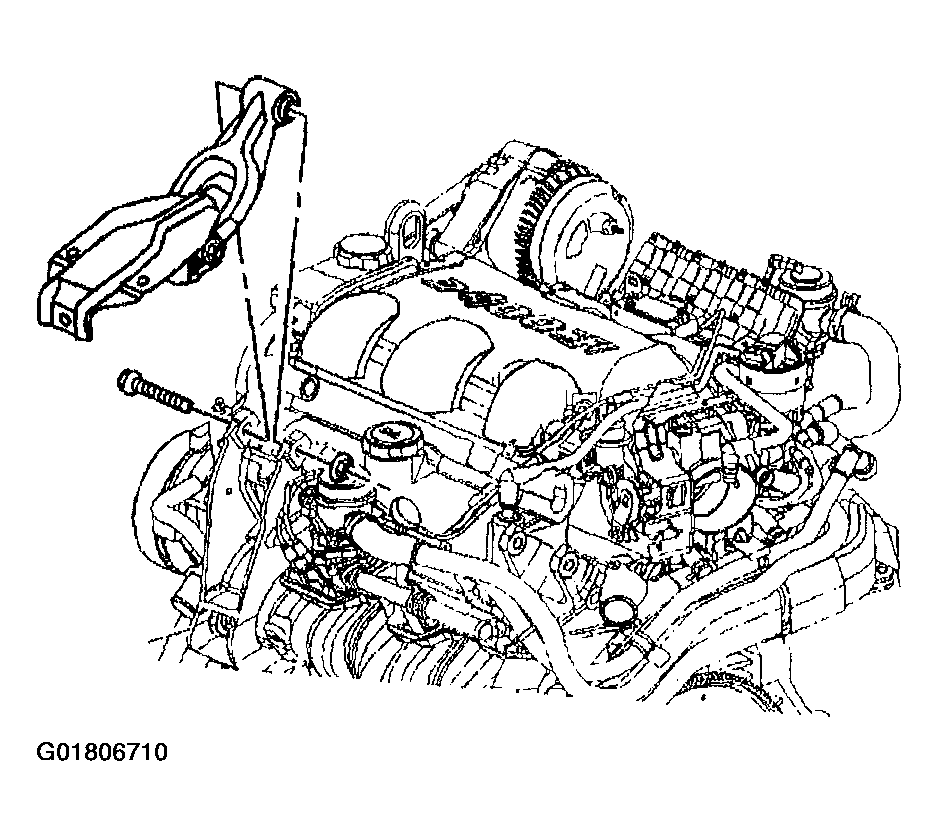

    Fig 1: Right Engine Mount Strut
    G01806710Courtesy of GENERAL MOTORS CORP.
  3. If equipped with oil cooler, remove the oil cooler pipe bracket bolt from the right engine mount strut bracket.
  4. Reposition the air conditioning compressor.

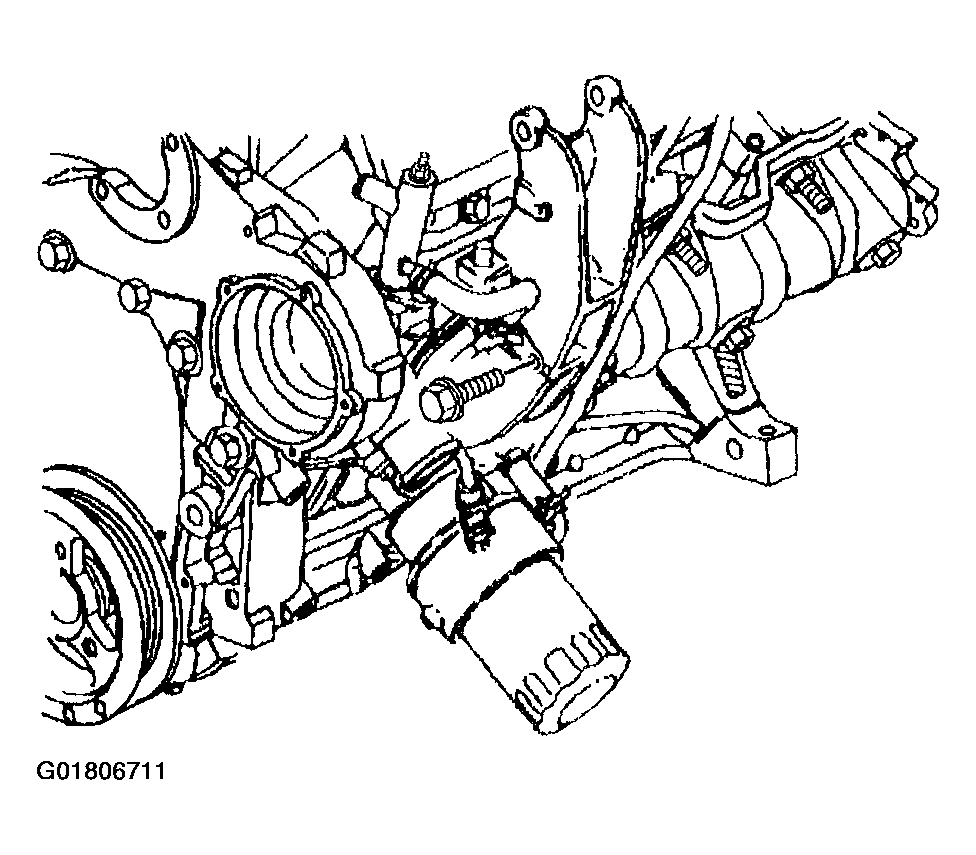

    Fig 2: Right Engine Mount Strut Bracket
    G01806711Courtesy of GENERAL MOTORS CORP.
  5. Remove the vertical bolt from the right engine mount strut bracket.
  6. Remove the right engine mount strut bracket.

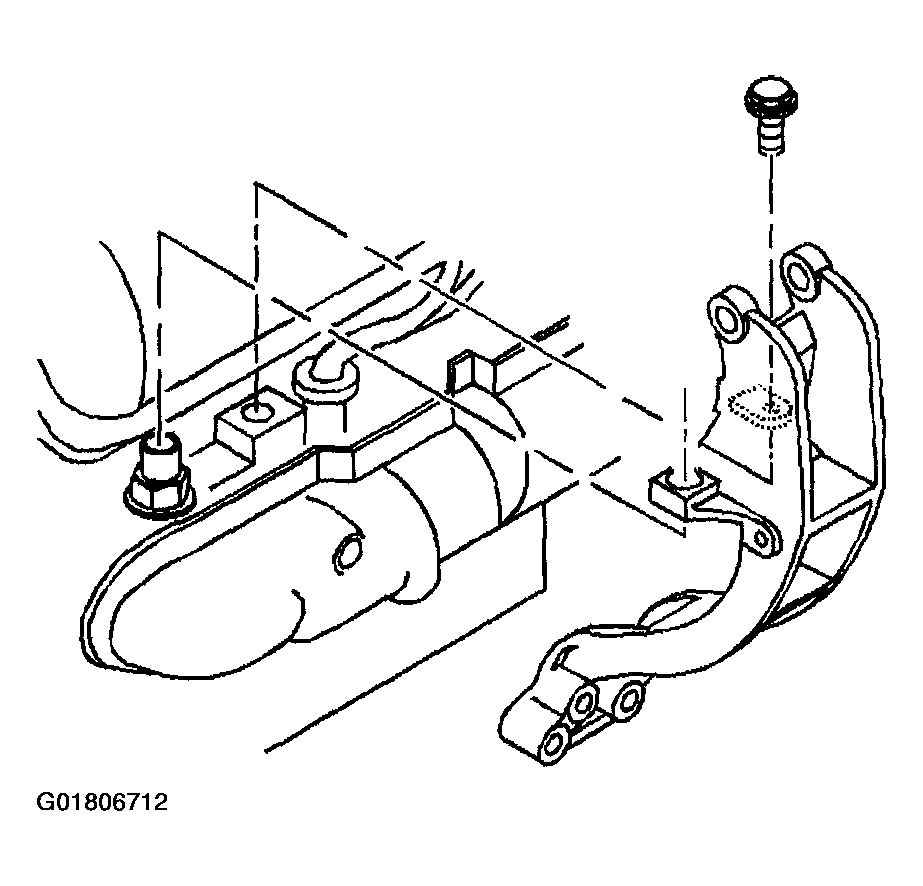

    Fig 3: Right Engine Mount Strut Bracket
    G01806712Courtesy of GENERAL MOTORS CORP.
