Removal Procedure

  1. Remove the engine mount strut from the left engine mount strut bracket.

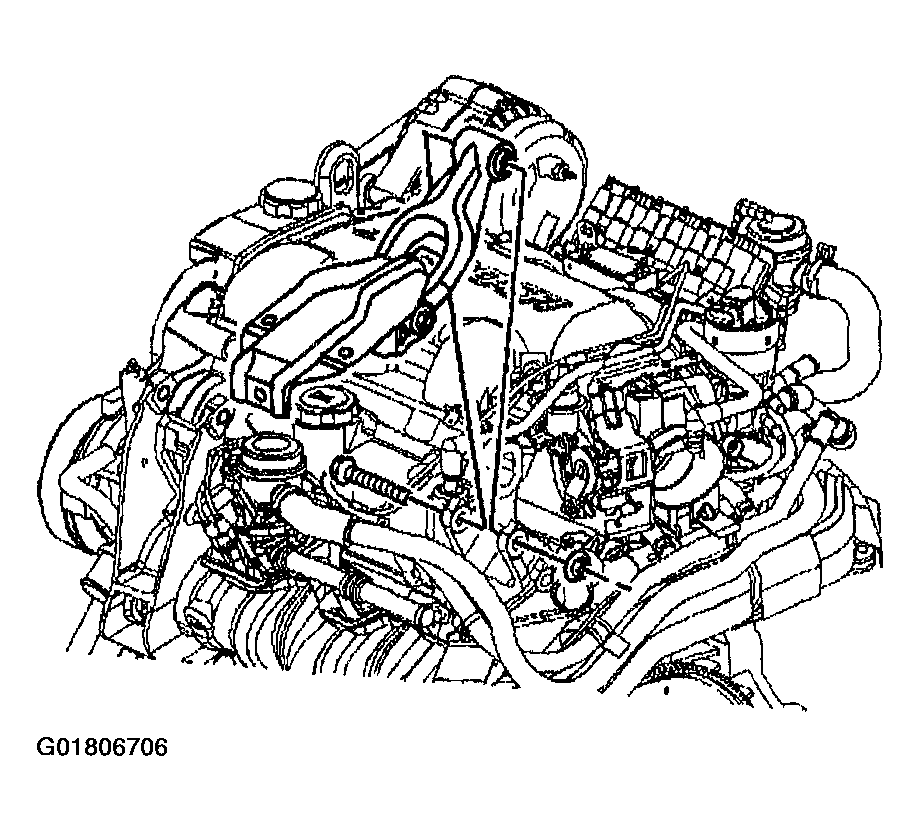

    Fig 1: Engine Mount Strut
    G01806706Courtesy of GENERAL MOTORS CORP.
  2. Remove the engine exhaust crossover pipe.
  3. Remove the thermostat housing.
  4. Remove the engine mount strut bracket bolts from the left engine mount strut bracket to the cylinder head.
  5. Remove the left engine mount strut bracket.

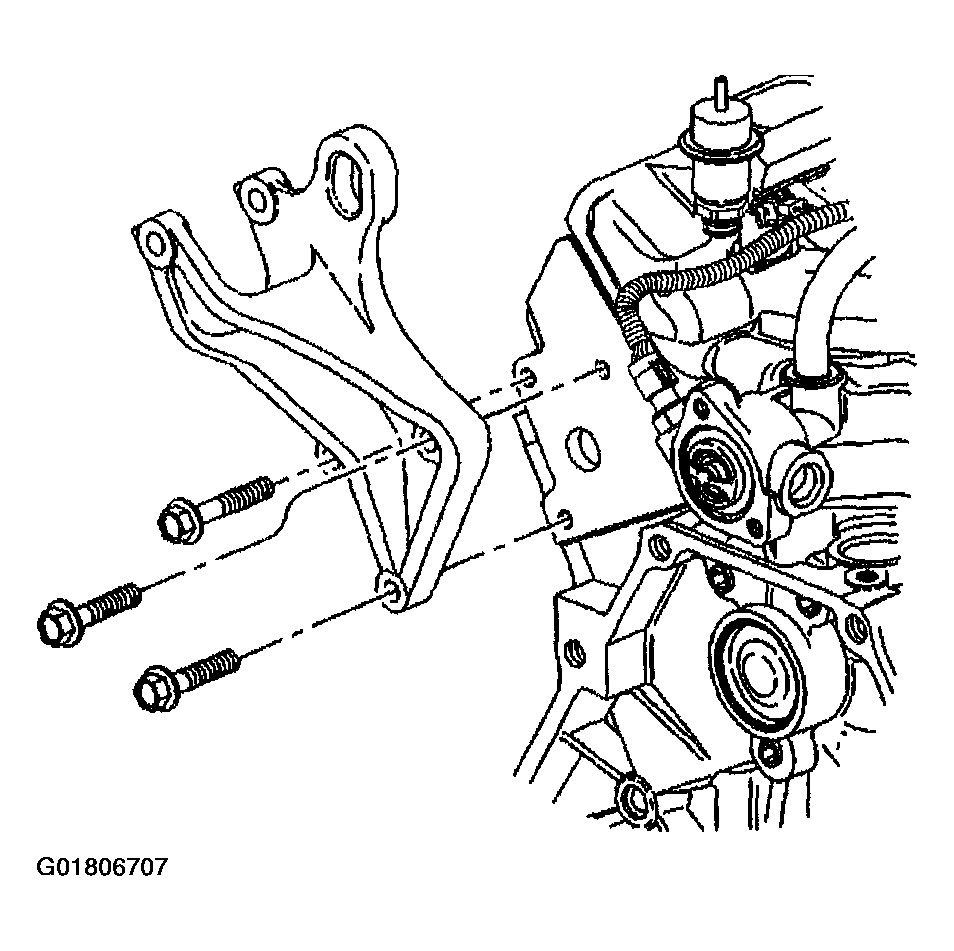

    Fig 2: Left Engine Mount Strut Bracket
    G01806707Courtesy of GENERAL MOTORS CORP.
