Removal Procedure

  1. Remove the bolt and the nut from the engine mount strut at the left engine mount strut bracket on the engine.

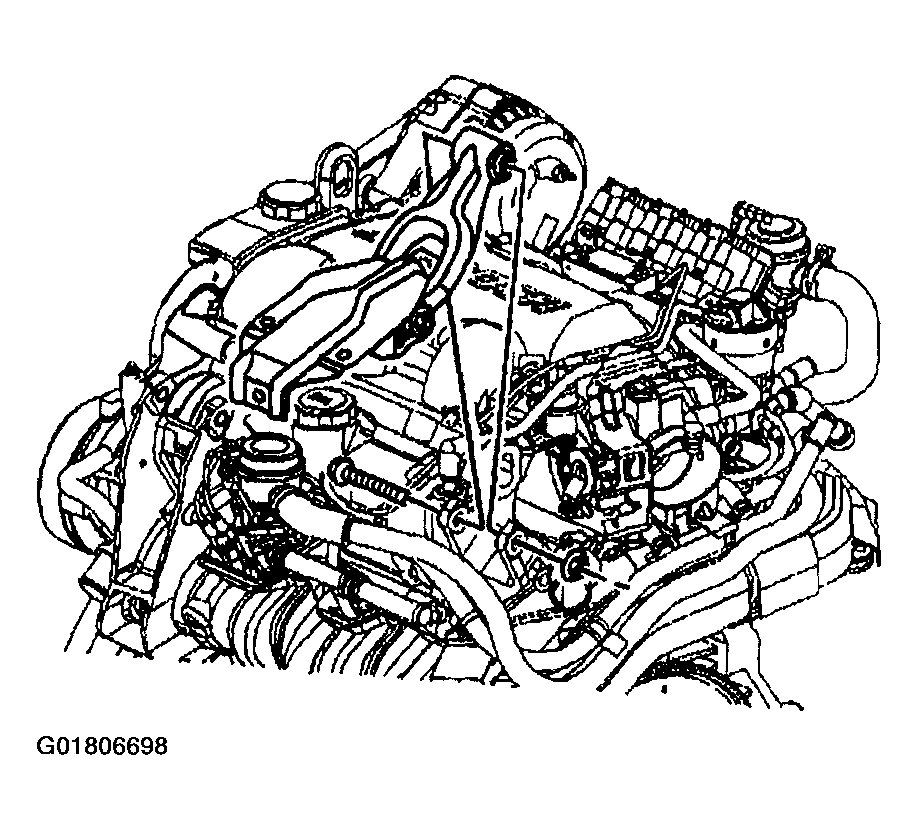

    Fig 1: Engine Mount Strut
    G01806698Courtesy of GENERAL MOTORS CORP.
  2. Remove the bolt, the nut, and the engine wiring harness retainer from the engine mount strut at the engine mount strut bracket on the upper radiator support.
  3. Remove the engine mount strut.
  4. Inspect the rubber in the engine mount strut for the following conditions:
    • Hardness
    • Splitting
    • Cracking

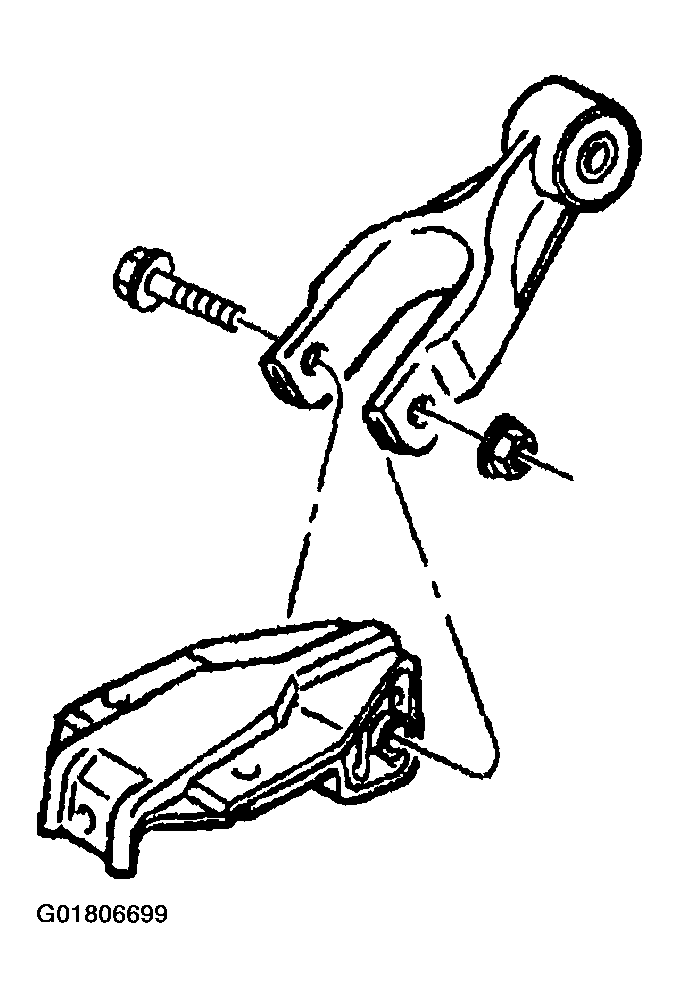

    Fig 2: Engine Mount Strut
    G01806699Courtesy of GENERAL MOTORS CORP.
