Installation Procedure

  1. Install the engine mount to the engine mount bracket.
  2. Install the engine mount upper nuts. Tighten the upper nuts to 47 N.m (35 ft lbs).
  3. Install the engine mount bracket with the engine mount to the oil pan.
  4. Install the bolts which secure the engine mount bracket to the oil pan. Tighten the bolts to 58 N.m (43 ft lbs).
  5. Lower the vehicle.
  6. Lower the engine.
  7. Raise and suitably support the vehicle.
  8. Install the engine mount lower nuts. Tighten the lower nuts to 43 N.m (32 ft lbs).
  9. Install the right engine splash shield.
  10. Install the right front wheel and tire.
  11. Connect the three-way catalytic converter pipe to the right rear exhaust manifold.
  12. Lower the vehicle.
  13. Remove the engine support fixture.

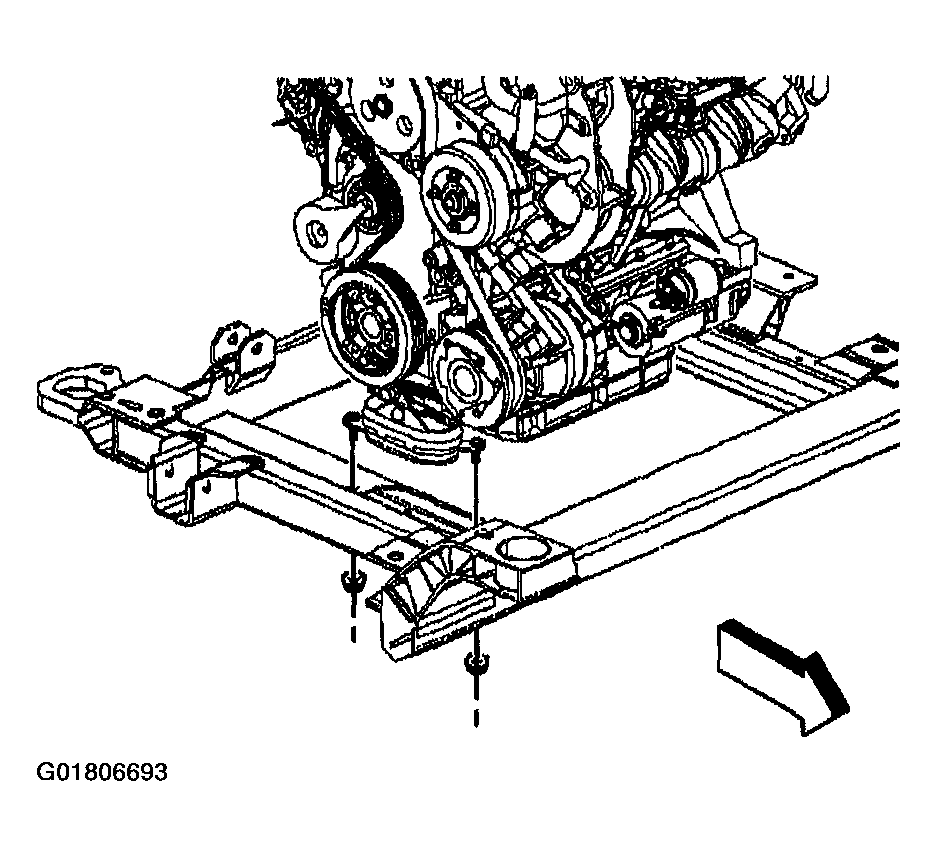

    Fig 1: Engine Support Fixture
    G01806693Courtesy of GENERAL MOTORS CORP.
  14. Install the engine mount struts.
  15. Install the throttle body air inlet duct.
  16. Connect the battery ground cable.
