Removal Procedure

  1. Remove the automatic transaxle.
  2. Use the J 37096  to secure the flywheel in order to prevent rotation.
  3. Loosen the 6 engine flywheel bolts.
  4. Remove 5 of the 6 flywheel bolts leaving 1 bolt at the top of the crankshaft rotation.
  5. Grip the flywheel and remove the remaining bolt. Do not drop the flywheel when removing the final bolt.
  6. Remove the engine flywheel retainer and the flywheel.

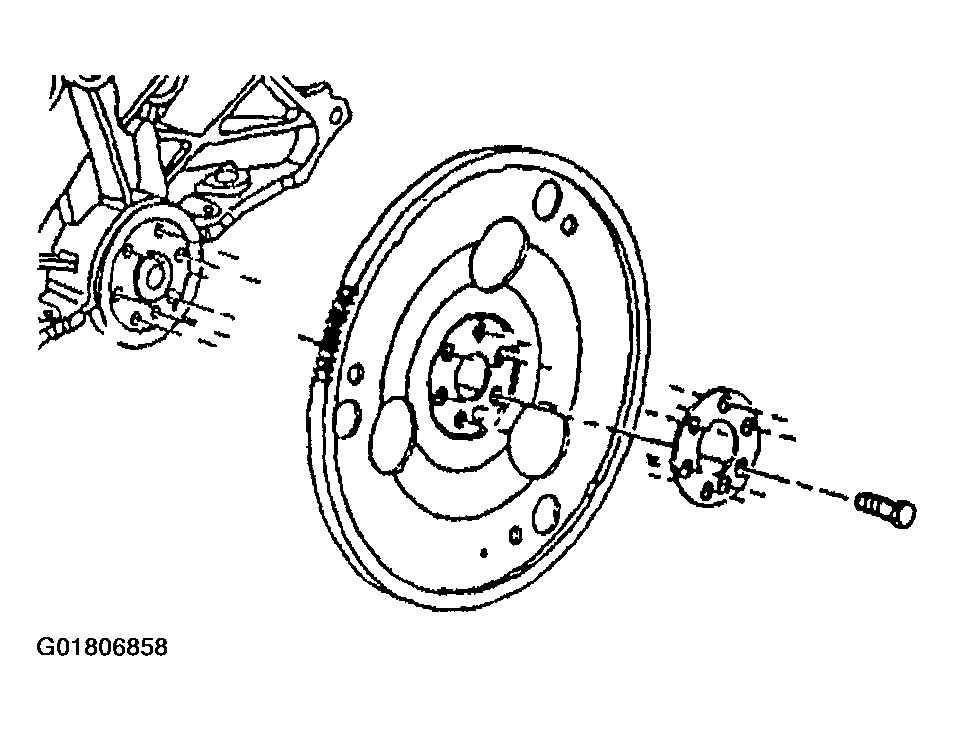

    7. Fig 1: Flywheel Retainer & Flywheel
    G01806858Courtesy of GENERAL MOTORS CORP.
  7. Clean the engine flywheel bolt threads and bolt holes.
