Removal Procedure

  1. Reposition the coolant recovery reservoir for access.
  2. Remove the drive belt. Refer to Drive Belt Replacement .
  3. Remove the drive belt tensioner bolt.
  4. Remove the drive belt tensioner.

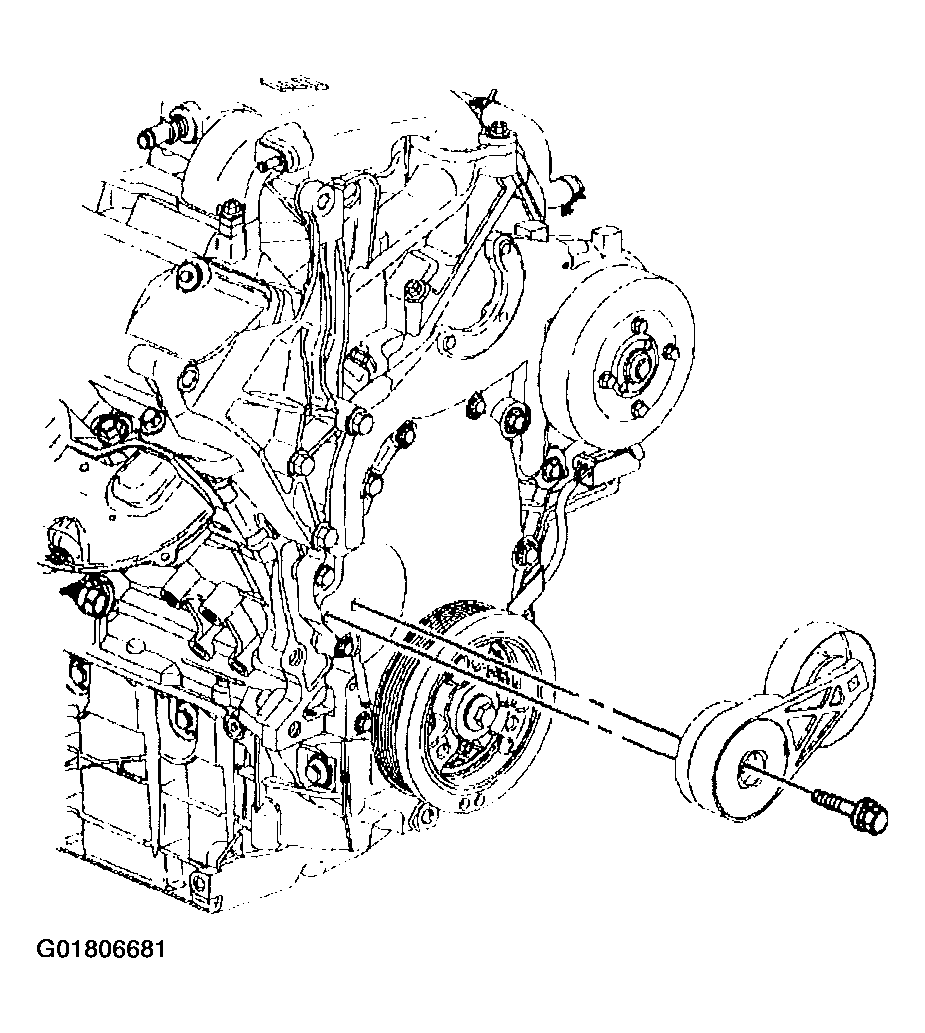

    Fig 1: Drive Belt Tensioner
    G01806681Courtesy of GENERAL MOTORS CORP.
